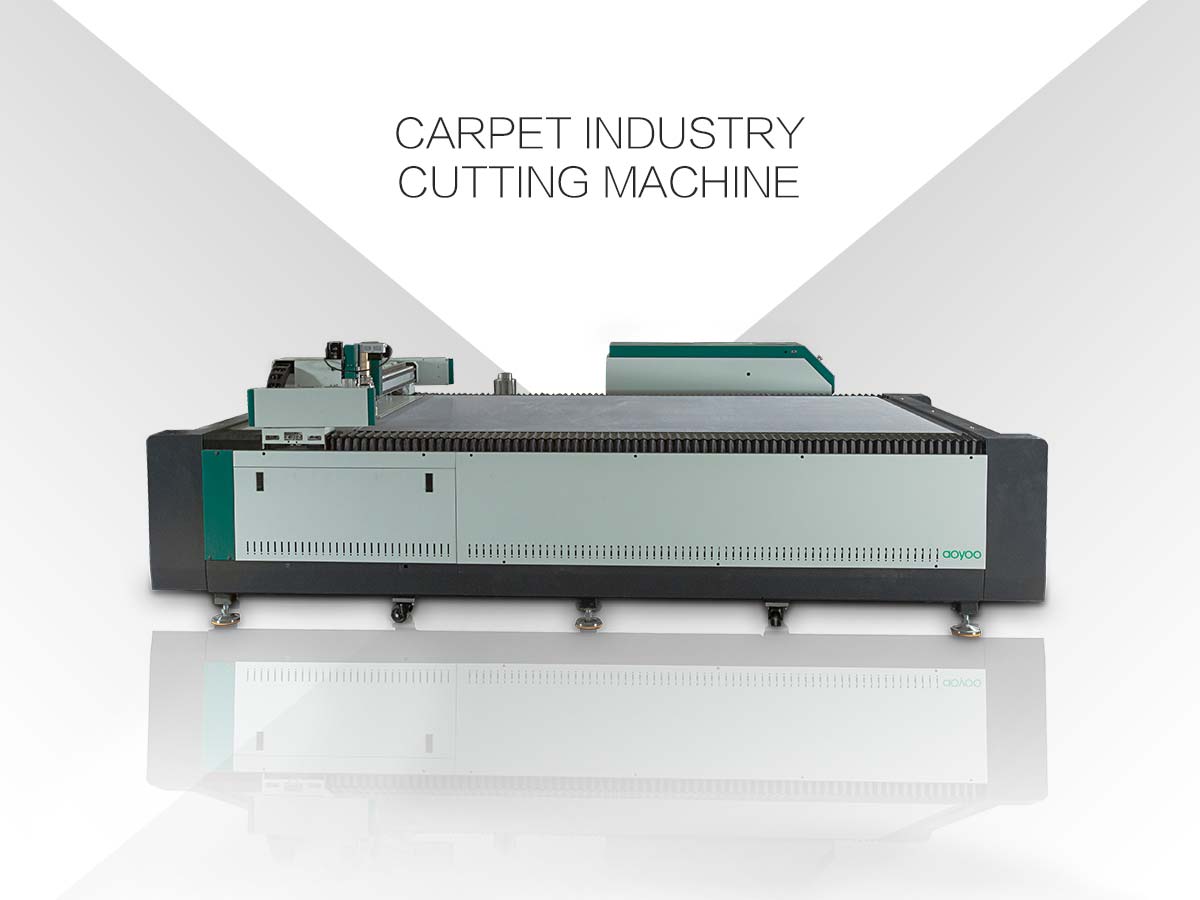

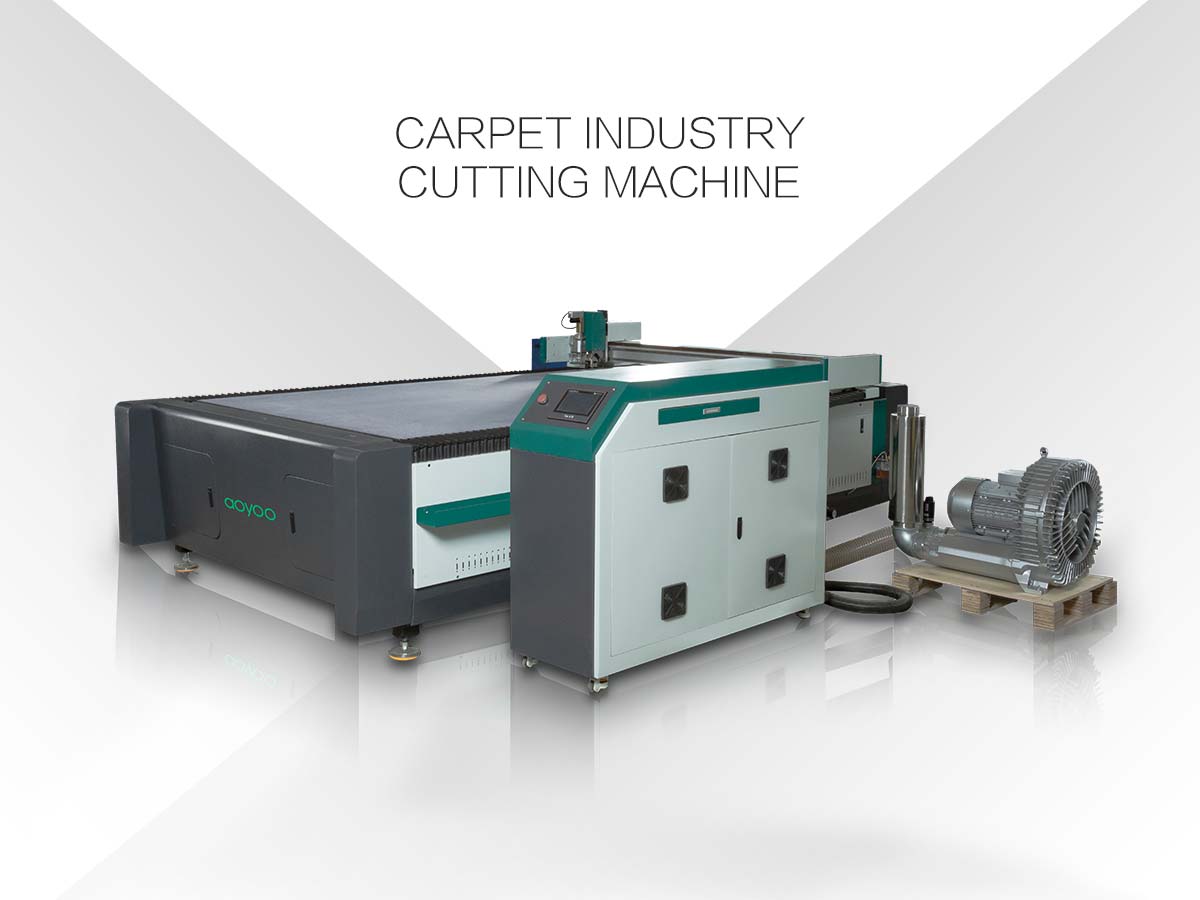

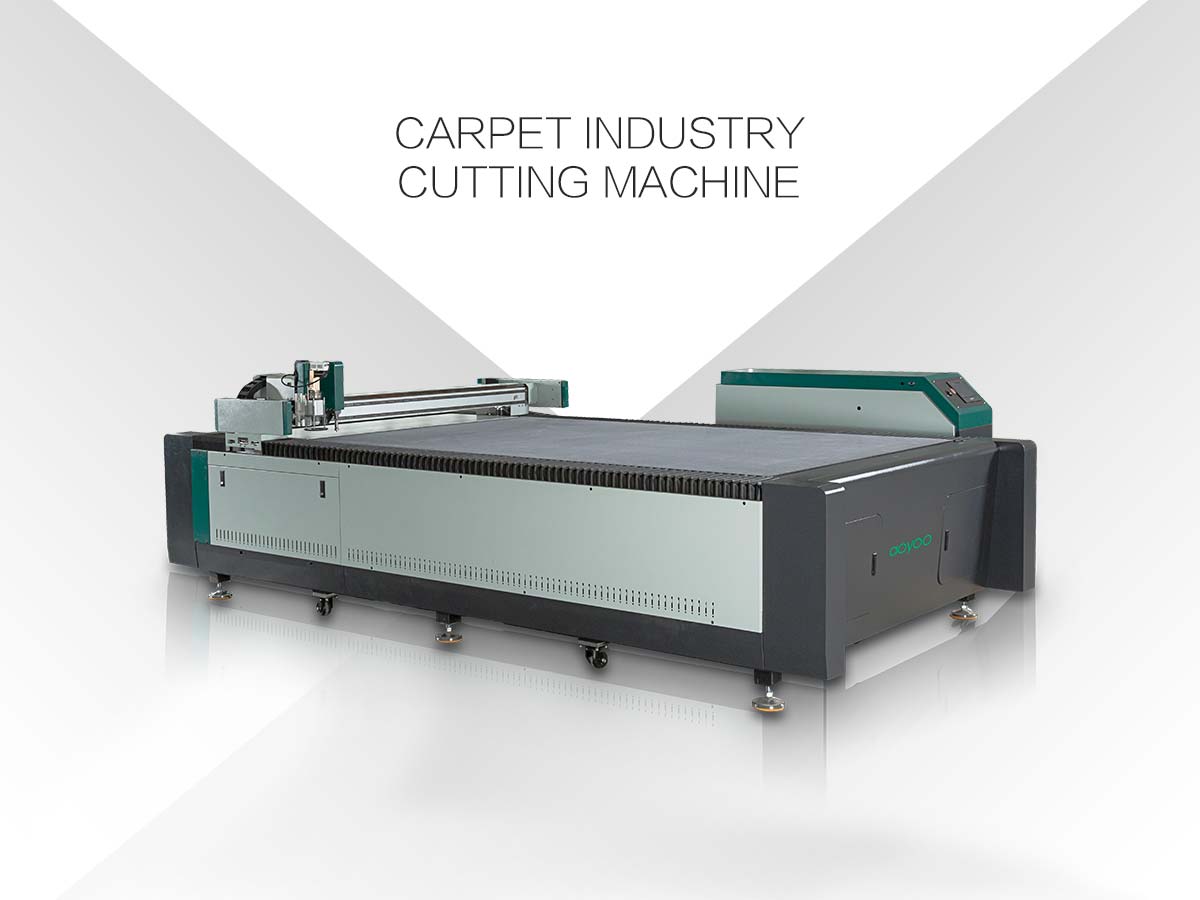

Carpets Oscillating Knife Cutting Machine

Features Of Carpets Oscillating Knife Cutting Machine


1.The carpets oscillating knife cutting machine has such features as scientific rational design, simple flexible operation;

2.Good stable quality, structural durability, light weight, no noise, safety and reliability;

3.Its material has tidy cuts without burrs and wrinkles.

Specification Of Carpets Oscillating Knife Cutting Machine


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

AOYOO-2125-ZS10

Accept unconventional model customization

Effective working area

1600x2500mm

1800x2500mm

2100X2500


Multi-head optional

Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized

Multi-function tool

Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Software

Automatic nesting software, template entry software(Optional)

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm

3570x25800x1165mm


Application of carpets oscillating knife cutting machine:


Carpet industry: AOYOO is suitable for carpet floor mat industry, focusing on long-haired short-haired carpet, brushed carpet, PVC leather, floor leather, artificial wool, pure wool, rubber and plastic products cutting, hollowing, splicing, printing carpet edge cutting and other processes Provide a complete carpet production process solution. The device model is optional depending on the material width and length.


Applicable materials of carpets oscillating knife cutting machine: Leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Application

Details

Advantages of carpets oscillating knife cutting machine:

● Multi-purpose configuration of one machine: template cutting and pattern cutting (optional) can be realized by one device, and material replacement is convenient at the same time;


● Superb adsorption capacity: The equipment adopts super-strong vacuum partition adsorption mode, which is convenient and quick without the need of fixtures. It perfectly solves the problem of small sample processing and minimizes the waste of surplus materials;


● Added tool setting function: In addition to manual tool setting, it can also be equipped with automatic tool setting device, which is more convenient and more accurate;


● Optional household voltage: 220V optional equipment, running power, dust-absorbing function, environmental protection, long life, safe and harmless to the human body;


● Professional design software: professional template optimization production software, developed according to the actual needs of users, allowing users to freely and simply create;


● Strong software compatibility: compatible with any clothing CAD software in the market, the network port output is fast and convenient;


● Professional full-service training: Provides a full range of training services for equipment use, software operation and template making, making it more convenient for customers.
