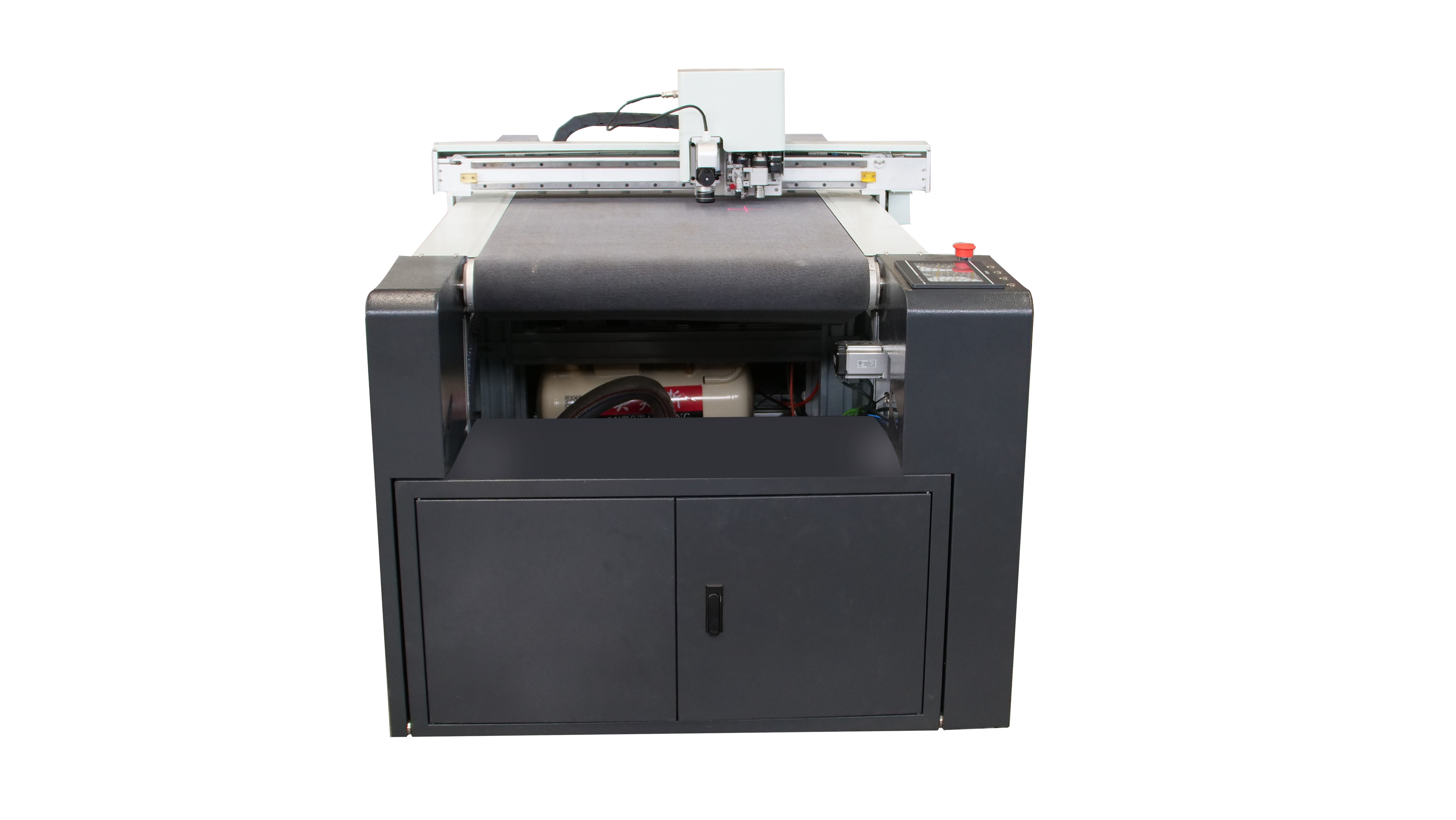

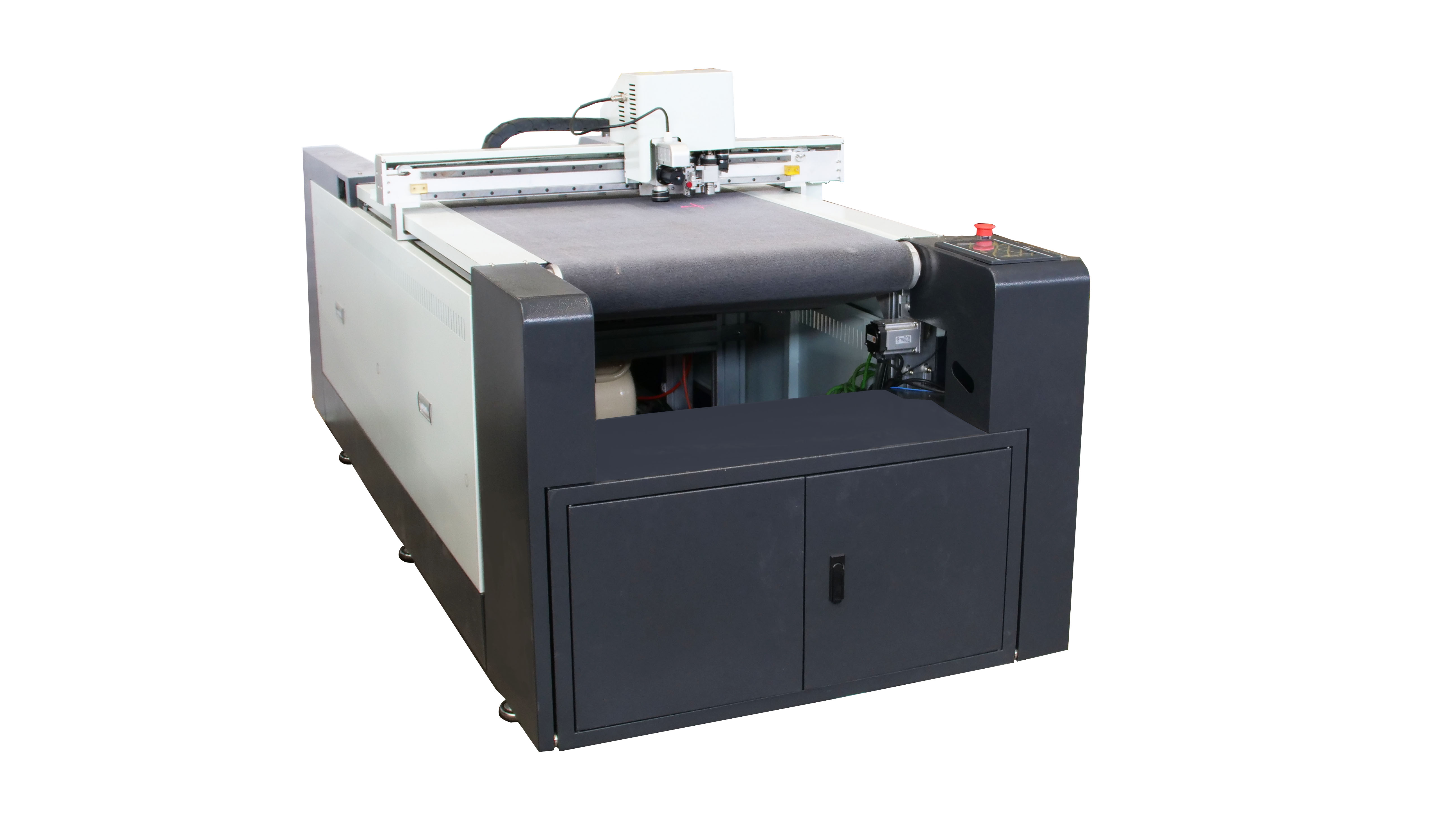

digital carboard pattern cutting plotter

This machine is not only suitable for packaging industry but also for advertising industry.If you have high requirements for cutting accuracy, I think this machine must be suitable for you!

AOL software and digital cutting machines combine, mainly focuses on post-processing in advertising or packaging industry, and provides an intelligent cutting planto form the perfect advertising or packaging production systems.



Application material for digital cardboad pattern cutting plotter

The digital cardboad pattern cutting plotter is application for:

kt board, gray paperboard, cardboard, corrugated paper, honeycomb paperboard and other flexible materials less than 50mm


If you want to consult more details, please leave your industry material information and your contact information, we will contact you in time and give you a satisfactory answer.


    Model     AOYOO-6090
    Working area     600*400mm
    Multi-function head

     The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-c ut and laser red

     light positioning functions, CCD positioning, Camera extract large contour to cut

    Tools     Universal Drawing Tool, Creasing Wheel Tool
    Overall size     2420*970*1280mm  L'W'H
    Moving speed     800-1500mm/s
    Repeat precIsion     ±0.05mm
    Interface     Enternet port
    Control panel     LCD touch screen
    Drive system     Imported servo motor, linear guid, synchronous belt, screw
    Cutting material

     Carton, cardboard, paper, labels, adhesive stickers, packaging, thin plastic sheet and so on

    Instruction system     HP- GL Compatible format
    Rated power     2. 2KW
    Rated voltage    220V
    Cutting thickness    ≤50mm(According to different material)
    Material fixed way    Vacuum adsorption
    Auto feeding system

    Acuum sucker adsorpting sheet





Advantage of digital carboard pattern cutting plotter

1)High flexibility: The electric swing tool is very suitable for cutting flexible materials. With various blades, it is suitable for cutting materials of different hardness.


2)High cutting accuracy: Imported high-precision racks are used to make the cutting of thick and hard packaging materials stronger and ensure higher cutting accuracy


 3)Low-cost operation: equipped with tool quick-change module, independent research and development of tool quick-change device, to achieve rapid replacement of more than ten tools. The cutter can be switched freely, which is suitable for various flexible materials.


4)Durable and non-deformable: honeycomb aluminum workbench, vacuum adsorption design, super air, strong suction (partition adsorption, no longer adsorption of small samples)


5) Projection positioning system: In the actual cutting process, it is difficult for users to accurately align the material with the cutting pattern. The system can 1:1 project the cutting pattern onto the processing table, which is convenient for users to feed and align.


6) Automatic edge finding: The user can also put irregular materials into the projection area for alignment and cutting, which greatly improves the utilization of materials.






AOYOO——not just a machine


We provide customers with professional industry material solutions. At present, our products and services have spread to more than 150 countries around the world, and have received unanimous praise. If your industry needs customized materials, please contact us! We will provide you with the most suitable and price-friendly solution.


Customer photo.png



patent certificate.png

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
