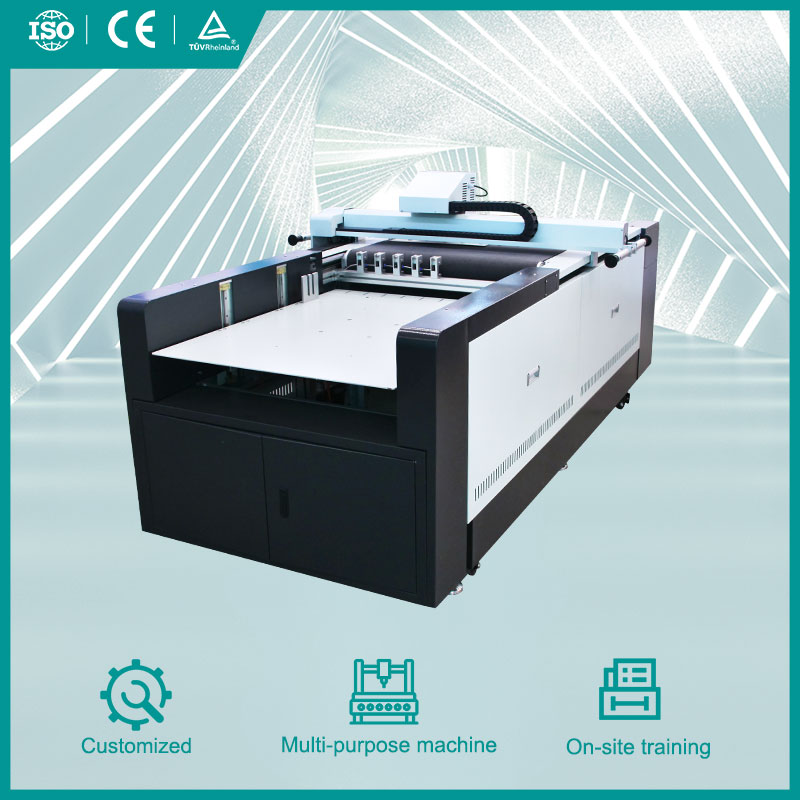

Small batch label printing cutting machine

Small batch label printing cutting machine suitable for cutting small order materials, suitable for cutting advertising packaging materials, and with a universal wheel at the bottom, the cutting location is flexible and easy to change, and the cutting of samples is also completed with high quality, which is important for accuracy and speed. To reach industry-leading standards.

Advantage of Small batch label printing cutter

Cutting diversity

It supports through cutting, kiss cutting, marking, marking, indentation and other manufacturing processes. One machine solves multiple cutting processes and saves machine costs.

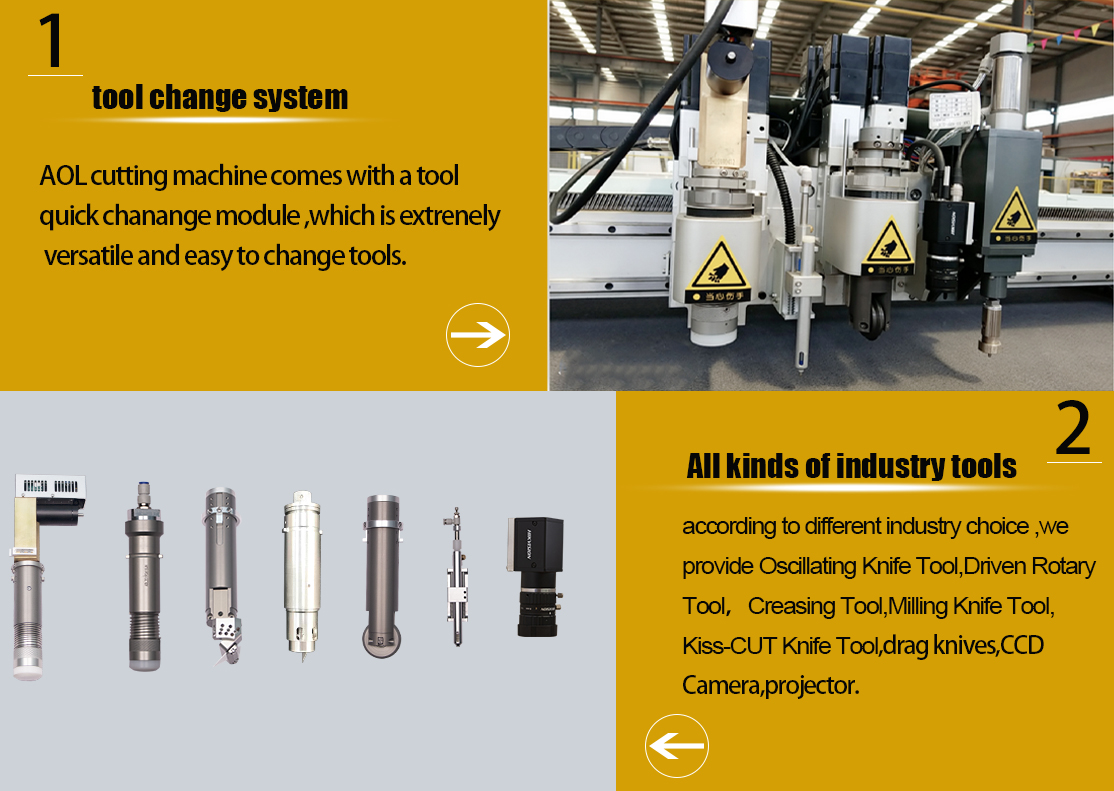

Tool diversity

It supports the installation and switching of vibrating knife, drag knife, bevel knife, graphic knife, pressing wheel, and marking pen knife, providing a variety of cutting effects.

Functional diversity

a High-definition industrial camera, high response speed to scan Mark points, and supports two-dimensional code scanning and cutting, fast scanning only for cutting, reducing the rate of manual participation.

b is equipped with customized feeding and rewinding devices for coil and sheet materials to improve cutting efficiency.

advantage of Small batch label printing cutting machine

Features of Small batch label printing cutter

1. Irregular cutting of printed patterns can be done easily.

2. Replace the Small batch label printing cutting machine with traditional cutting method, and increase the economic strength by more than 30%.

3. AOL Small batch label printing cutting chooses Taiwan linear guide transmission system, with stable accuracy ±0.1mm.

4.Small batch label printing cutting machine has won 7 patents technology certifications at home and abroad

5. Compatible with multi-format files, you can start cutting after importing the files.

6. The AOL Small batch label printing cutting machine is equipped with universal wheels at the bottom to flexibly respond to various cutting scenes.

<img src="/upload/default/20200916/9eeb5297cb8d2763dacf7b2b95d4f372.jpg" title="feature of Small batch label printing cutting machine" alt="feature of Small batch label printing cutting machine/>

Parameter of Small batch label printing cutter

Technical parameters1070
Effective working area101000*700mm
Multi-function cutting headThe combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut
ToolsOscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
Overall size2520*1080*1280mm  L'W'H
Moving speed800-1500mm/s
Repeat precIsion±0.05mm
InterfaceEnternet port
Control panelLCD touch screen
Drive systemImported servo motor, linear guid, synchronous belt, screw
Cutting materialPaperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on
Instruction systemHP- GL Compatible format
Rated power2. 2KW
Rated voltage220V
Cutting thickness≤80mm(According to different material)
Material fixed wayVacuum adsorption
Auto feeding systemAcuum sucker adsorpting sheet


Wide range of material applications

Small batch label printing cutting machine has a wide range of application materials. It can cut most of the advertising packaging materials, such as self-adhesive, cardboard, corrugated cardboard, car film, KT board, gray cardboard, POP paper and many other materials, AOL CNC cutting machines can be completed.

material of Small batch label printing cutting machine

    AOL CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting and laser cutting machines. It mainly includes CNC intelligent blade cutting machines, laser cutting machines, laser fiber cutting machines, and laser cutting machines. Various types of cutting machines such as labeling machines can meet the cutting processing of metal materials and flexible materials of different materials, and are widely used in advertising packaging, composite materials, carpet industry, clothing textiles, automotive interiors, and leather industries. In addition, AOL also has an independent CNC cutting machine brand AOYOO.

    AOL CNC Equipment Co., Ltd. is a high-tech industry in China, an AAA-level credit enterprise. The product quality has undergone multiple tests and the after-sales system is complete. It has provided reliable CNC cutting machines for more than 8,000 users worldwide, and has provided many users with Professional industry cutting assembly line solutions.

AOL is committed to multi-industry flexible material cutting solutions for global users. The annual output of high-quality CNC cutting machines in the AOL factory can reach 1,000 units, and each machine is provided with a three-year warranty service.


AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
