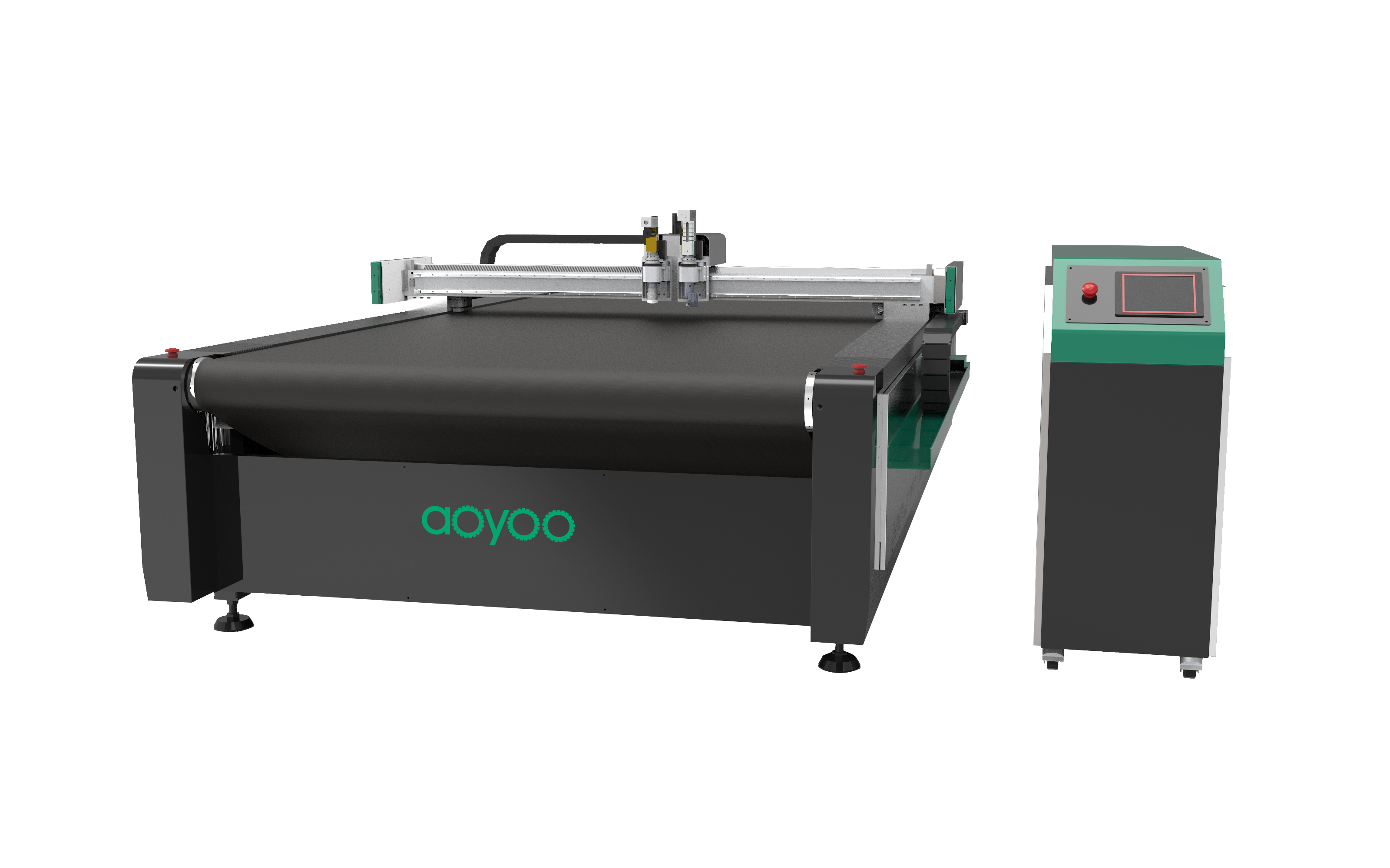

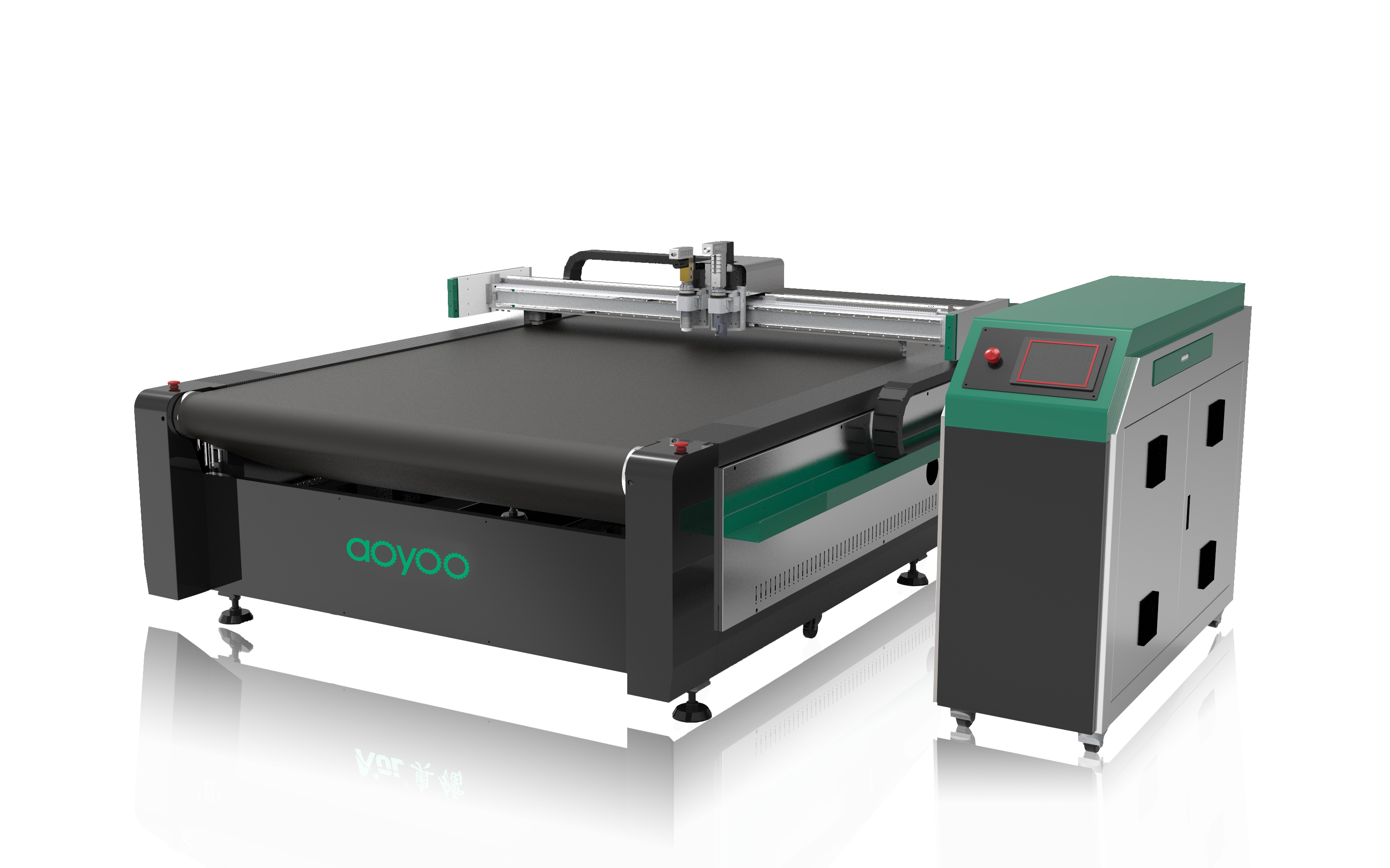

Sealing gasket high precision cutting machine

 AOL CNC cutting machine is a multi-functional digital cutting machine that can meet various needs. The modular cutter head structure allows convenient tool switching and provides economical future upgrades. The six-axis motor control CNC system of the digital cutting machine has fast execution speed and high precision. The DSP integrated controller reduces the error rate and maintenance costs, while the segmented vacuum system provides satisfactory and controllable suction. Ethernet port, user-friendly interface allows design software from different PCs to access a cutting machine, thereby maximizing investment. The LCD touch screen panel makes learning and operation easy. The digital cutting machine provides flexible tool module options to meet the needs of different industries.

Parameter of  gasket  cutting machine

chnical parametersAOYOO-1625
Effective working area1600*2500mm
Multi-function cutting headThe combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut
ToolsOscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
Moving speed800-1500mm/s
Repeat precIsion±0.05mm
InterfaceEnternet port
Control panelLCD touch screen
Drive systemImported servo motor, linear guid, synchronous belt, screw
Cutting materialPaperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on
Instruction systemHP- GL Compatible format
Rated power2. 2KW
Rated voltage220V
Cutting thickness≤50mm(According to different material)
Material fixed wayVacuum adsorption
Auto feeding systemAcuum sucker adsorpting sheet


Advantage of gasket cutting machine

1. High cutting precision: Imported high-precision grinding rack is adopted, which has long durability and high precision, and keeps stable low error, even the error can reach 0.1mm.

2. Multi-country quality certification, according to different voltage standards in different countries, and the machine is equipped with transformers.

3. Durable and non-deformable: honeycomb aluminum workbench, vacuum adsorption design, adopts partitioned adsorption area, strong suction, and small sample adsorption can also be realized.

4. High flexibility: electric swing tools are very suitable for cutting materials. Self-developed tool quick-change mold, which can replace the blades for cutting different materials and auxiliary instruments (CCD camera, projector, marking pen, pressing wheel), and can accommodate up to three sets of tools to work at the same time, improving work efficiency.



Sales area distribution

So far, more than forty countries have covered our partners, and our agents can provide you with the fastest door-to-door service. If you want to know the details of your area, please leave a message or email us, we Will respond to you as quickly as possible, colleagues, we welcome powerful agents from other regions to come to consult and look forward to cooperating with you!

Delivery time

We have our own factory. After you place an order, we will start to produce the CNC cutting machine you need. At the same time, we will make a reasonable delay according to the order volume of the current month. Our delivery time is about 15-20 days on average. The CNC cutting machine can also be produced according to the delivery time you need. Please leave a message for specific information.

Shipping price

First of all, you have to tell us the port location of your delivery. Our staff will estimate the approximate freight according to your requirements. If you have special requirements for the delivery method, you can also negotiate with our sales staff.

Packaging of gasket cutting machine

The machine body is wrapped with film first, then packed into a wooden box, and placed in a foam damping protection machine

Finally, put it into a wooden box and provide a fumigation-free plywood box.

Stick warning signs around the wooden box


About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service and professional machine maintenance and maintenance.

The updated maintenance of machine parts is sold to customers at the lowest price.

AOYOO is an industry-leading brand with 14 years of experience in the industry. We have served more than 8,000 customers worldwide, and have received 99% of their high praise, and there are many customers who have been long-term and stable cooperation. Many customers provide personalized industry material cutting solutions. If you encounter problems with industry material cutting, we can provide you with free consultation and advice services!


About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service and professional machine maintenance and maintenance.

The updated maintenance of machine parts is sold to customers at the lowest price.

AOL is an industry-leading brand with 14 years of experience in the industry. We have served more than 8,000 customers worldwide, and have received 99% of their high praise, and there are many customers who have been long-term and stable cooperation. Many customers provide personalized industry material cutting solutions. If you encounter problems with industry material cutting, we can provide you with free consultation and advice services!



AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
