KT Board Sticker Display Card Board Ctting Machine

Features Of KT Board Sticker Display Card Board Ctting Machine

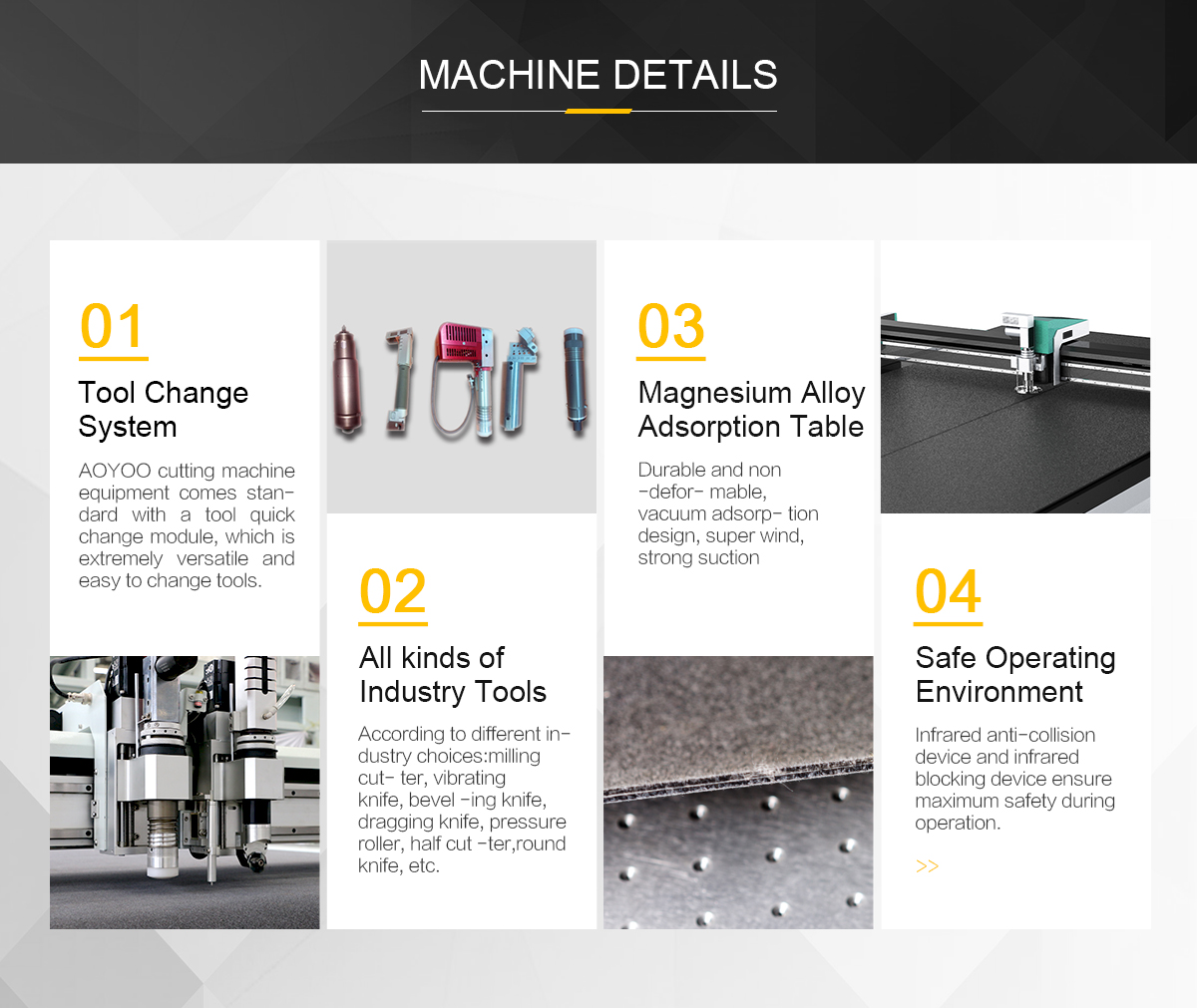

1.The cutting machine adopts two tool heads , can be performed simultaneously vibrating knife cutting , flat knife drag cutting, creasing wheel indentation, drawing and so on. You can perform complex processing technology proofing.
2.TheKT board sticker display card board ctting machineusing multiple safeguards to reduce the failure rate and mainte ncerate . The average failure rate of less than 3 times / year , and imported vibration cutting machine par. Suitable sales regions remote places , you can reduce the number and cost of vibration machine.
3.It reserve various maintence and channel interfaces ,enabling customers to self- maintenceand repair. This model is also favored by overseas customers, one of the main.
4.The machine equipped with infrared security devices , can effectively protect the safety of the operator.


Specification Of It


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Applicable materials

Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm



Application And Details of The Cutter

Leather, cardboard, fiber glass,KT board,sticker,display card board,corrugated cardboard, honeycomb cardboard, sticker, film, foam board,acrylic board, rebound rubber, rubber cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Application

Details

Advantages

Our Service



1).One year free warranty(except consumable parts), main parts are free of charge
when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.


Patent And Safety Certificate


Patent certification

Machine Packaging Details

Shandong AOYOO is one of the professional KT board sticker display card board ctting machine manufacturers and suppliers in China, welcome to buy our KT board sticker display card board ctting machine from Jinan and check the price with us.

Packaging Advantages

About AOYOO


About AOYOO

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
