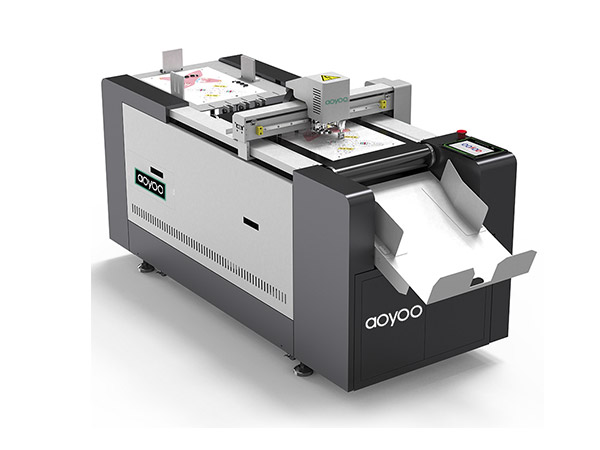

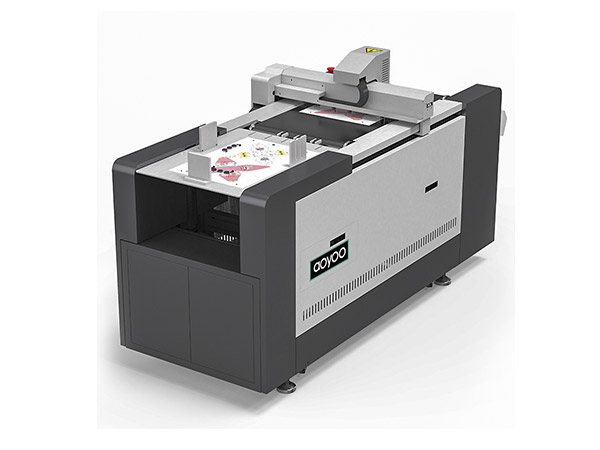

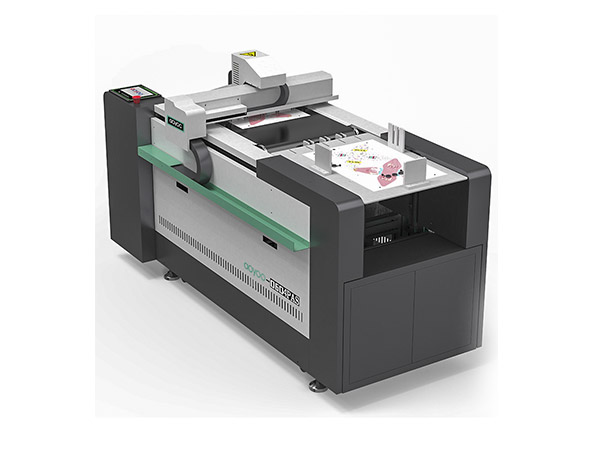

AOYOO-6040 series plotter is a model with excellent speed and precision. With the support of DSP control center and digital servo motor, it has won the market with the best cost performance. The head of the foam board digital cutting machine has two knife holders, which can be commonly used to insert cutting knives, scoring tools or drawing pens. A CNC cutting machine can extend the function to the greatest extent.

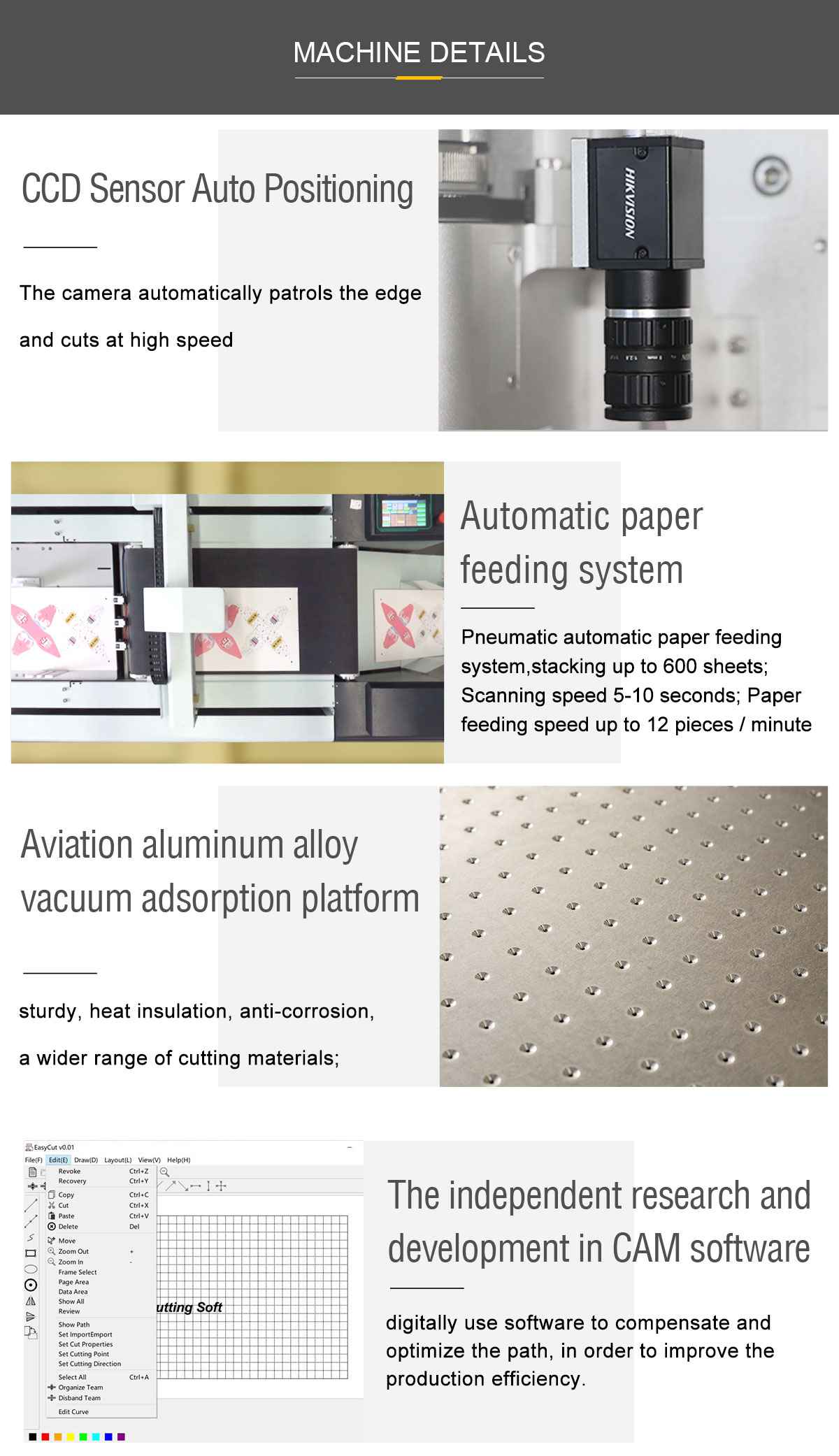

1. Super-high cost performance -- CNC intelligent cutting, indentation, drawing: cutting tool, indentation wheel tool, drawing pen and precision industrial camera and vision positioning system of precision industrial camera. There is a design based on your original drawing.
2. Aoyoo-6040 could achieve the label cutting in all shapes, cutting and indentation of carton in all shapes, vacuum suction cup on cross member working with the function of paper separating air jet nozzle in feeding structure, so as to get rid of the paper adhesion caused by static electricity.
Technical parameters | AOYOO-6040 |
Effective working area | 600*400mm |
Multi-function cutting head | The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut |
Tools | Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife |
Overall size | 2420*970*1280mm L'W'H |
Moving speed | 800-1500mm/s |
Repeat precIsion | ±0.05mm |
Interface | Enternet port |
Control panel | LCD touch screen |
Drive system | Imported servo motor, linear guid, synchronous belt, screw |
Cutting material | Paperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam board and so on |
Instruction system | HP- GL Compatible format |
Rated power | 2. 2KW |
Rated voltage | 220V |
Cutting thickness | ≤50mm(According to different material) |
Material fixed way | Vacuum adsorption |
Auto feeding system | Acuum sucker adsorpting sheet |
1. High flexibility: self-developed tool quick change mold, equipped with different blades for cutting different materials, suitable for cutting foam materials of different softness
2. High cutting accuracy: imported high-precision racks are used to make it easier to cut foams with different softness, ensuring higher cutting accuracy
3. Low-cost operation: Equipped with a tool quick-change module, independently developed a tool quick-change device, to achieve rapid replacement of more than ten kinds of tools. The cutter can be switched freely, which is suitable for all kinds of cardboard、foam board without changing the material of the cardboard box cutting machine.
4. Durable and non-deformable: honeycomb aluminum workbench, vacuum adsorption design, super air, strong suction (Partition adsorption, can adsorb small samples, easy to cut.).
The AOYOO-6040 series cutting plotter is equipped with various kinds of cutting and impressing blades and can be used in the cutting, plotting and impressing of many materials such as PVC board, PP board and white card paper.
