Floor Mat Cutting Machine

Features of floor mat cutting machine

To adapt to the precision of material cutting,this machine adopts larger and solid  machine lathe,to make it more capable in material load bearing,at the same time,let machine operating stable during working.

Imported Japanese servo motor,more powerful and stable compares with traditional china made servo motor,this machine get additional more precision and flexibility in cutting result.

Specification


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

AOYOO-2125-ZS10

Accept unconventional model customization

Effective working area

1600x2500mm

1800x2500mm

2100X2500


Multi-head optional

Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized

Multi-function tool

Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Software

Automatic nesting software, template entry software(Optional)

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm

3570x25800x1165mm


Application And Machine Details

Applicable materials of printing blanket cutting machine Leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.


Cutting video: CNC Aoyoo


material display

cutting sample

Why choose AOYOO?

1. Pre-sale material proofing, free on-site installation, commissioning and training after sale.

2. Nationwide warranty, 7*24h online customer service 12 hours to make customer plans, to help customers solve problems in the shortest time.

3. German quality, Swiss style

4. Welding a system frame, high temperature heat treatment, milling machine finishing, high precision measuring instrument, intelligent compensation cutting knife.

5. Replaceable cutter head: vibrating knife, half cutter, drag knife, milling cutter, beveling, indentation, round knife, etc.

6. Digital touch control: LCD touch screen display, digital control cutting, making cutting more precise and smarter!

7. Vacuum adsorption of aluminum-magnesium alloy: vacuum adsorption of fixed materials, automatic adjustment of vacuum adsorption area, adjustment of adsorption strength

8. High-speed high-precision servo motor: Select Yaskawa servo system from Japan, intelligent software compensation.

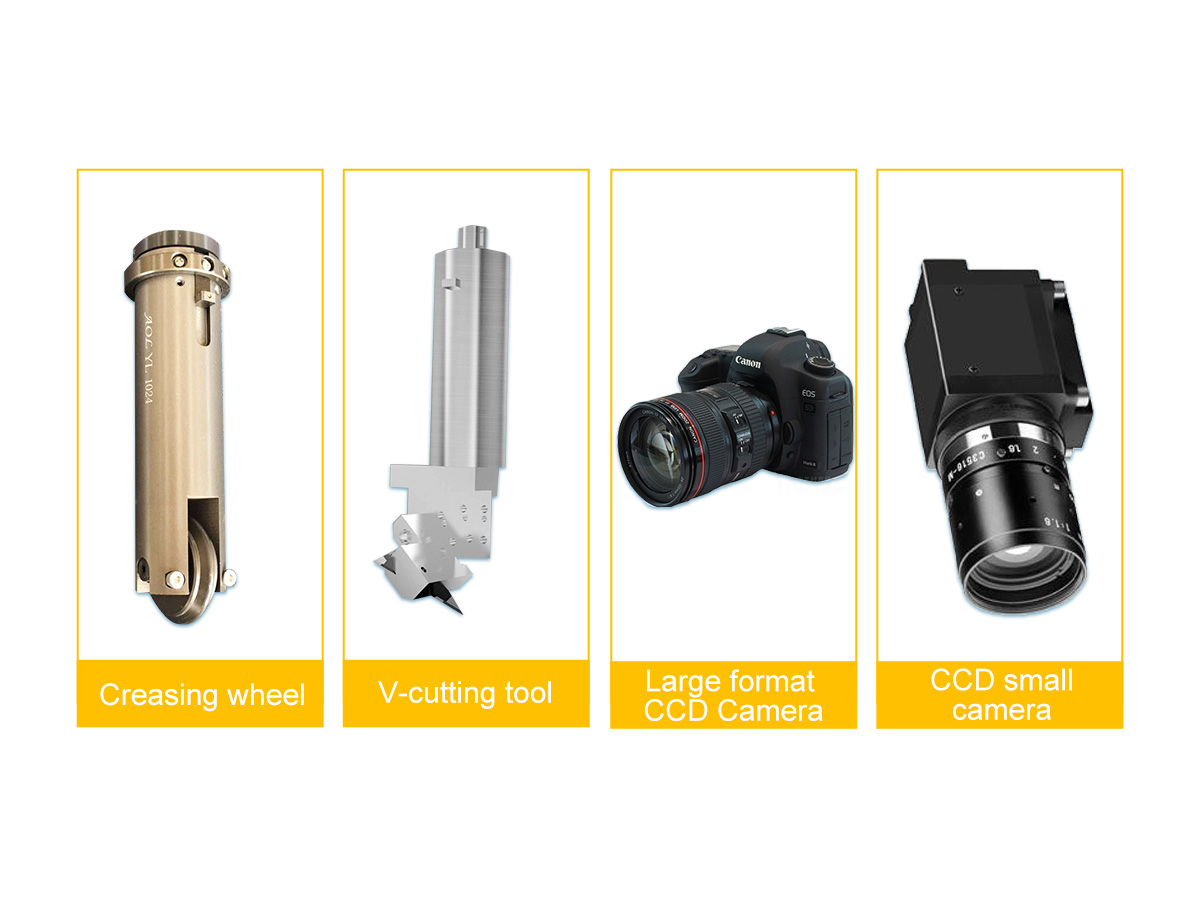

In order to help you find a solution for your cutting needs, we have added a list of all of the kinds of intelligent blade tool.


product details


Machine Advantages

Packaging Details:

1.Whole film packaging machine

2.Anti-collision package edge

3.Wooden case package


Logistics transportation

FAQ

1. How can i make sure that this machine is suitable for my work?

A: You can describe what you will use this machine to do , such as your working materials, max working area and cutting thickness, We will give you right machine for your work

2. Are you factory or trading company?

We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year , You are welcomed to come to our factory at any time

3.  It is my first time to use this machine , is it easy to operate?

We have manual book and operation video, it can teach you how to use it .

If there is still have any question, we can teach you online

If there is a need , Our engineer can go abroad to help you

4.  What can i do if the machine have any problems after i get it?

Free parts will be sent to you during warranty period

Free after-sales service will be given in the machine lifetime, we offer you 24hours online service

5.What is your MOQ ( minimum order quantity ) ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
