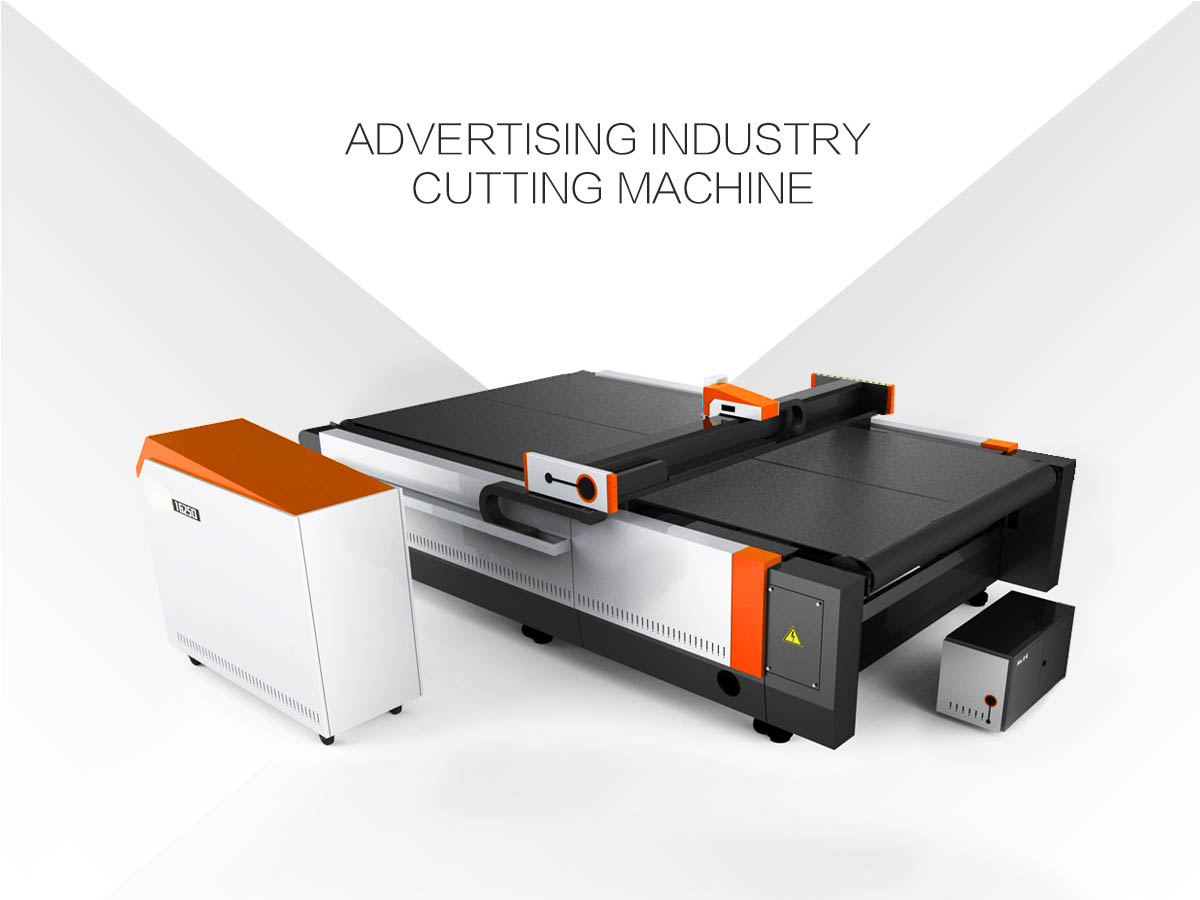

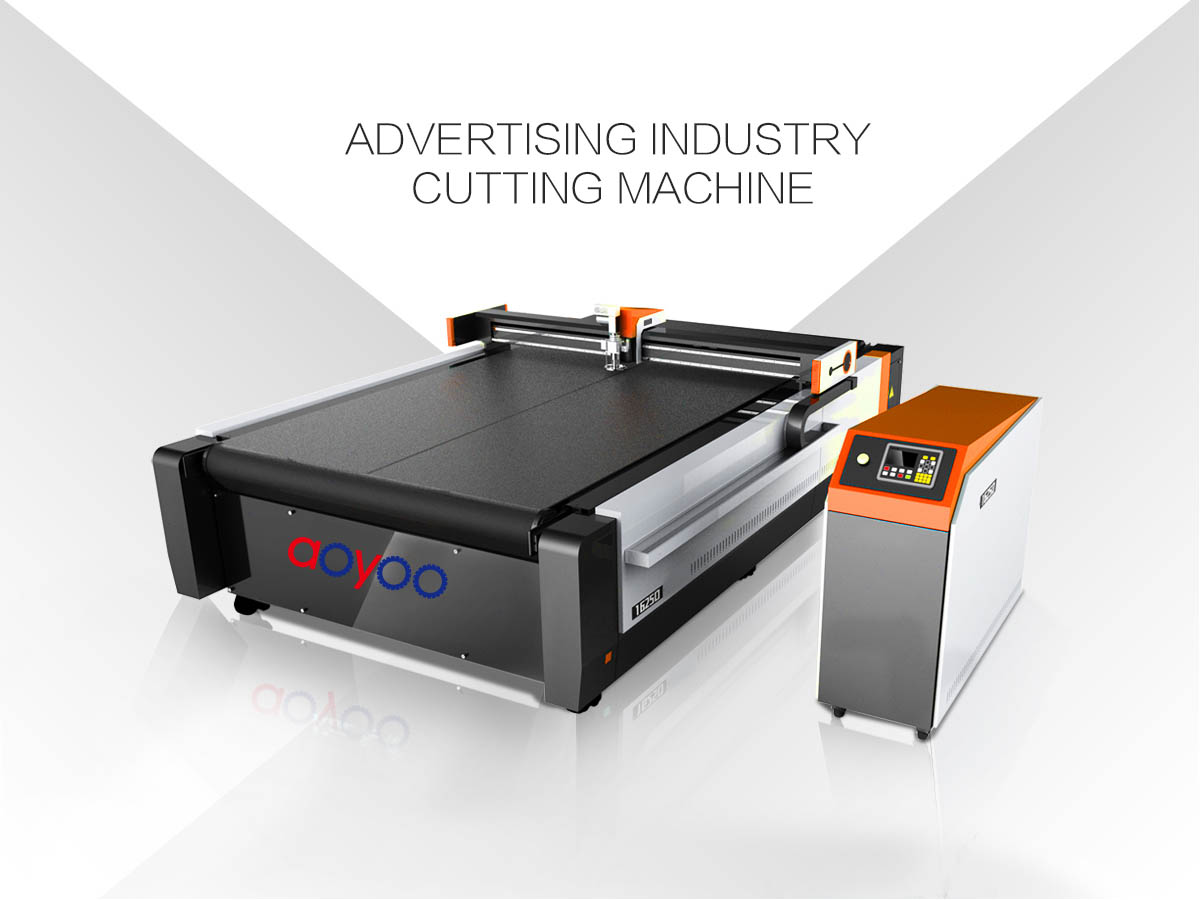

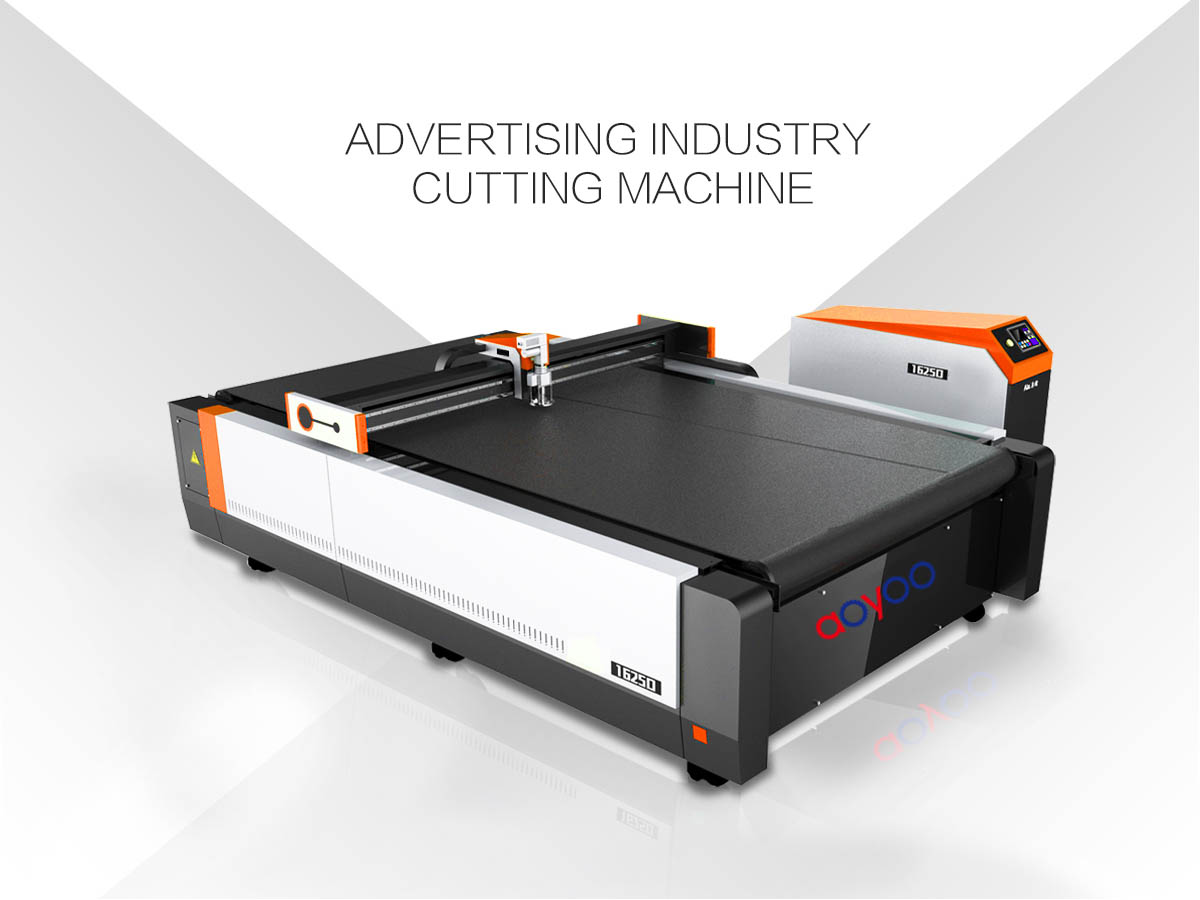

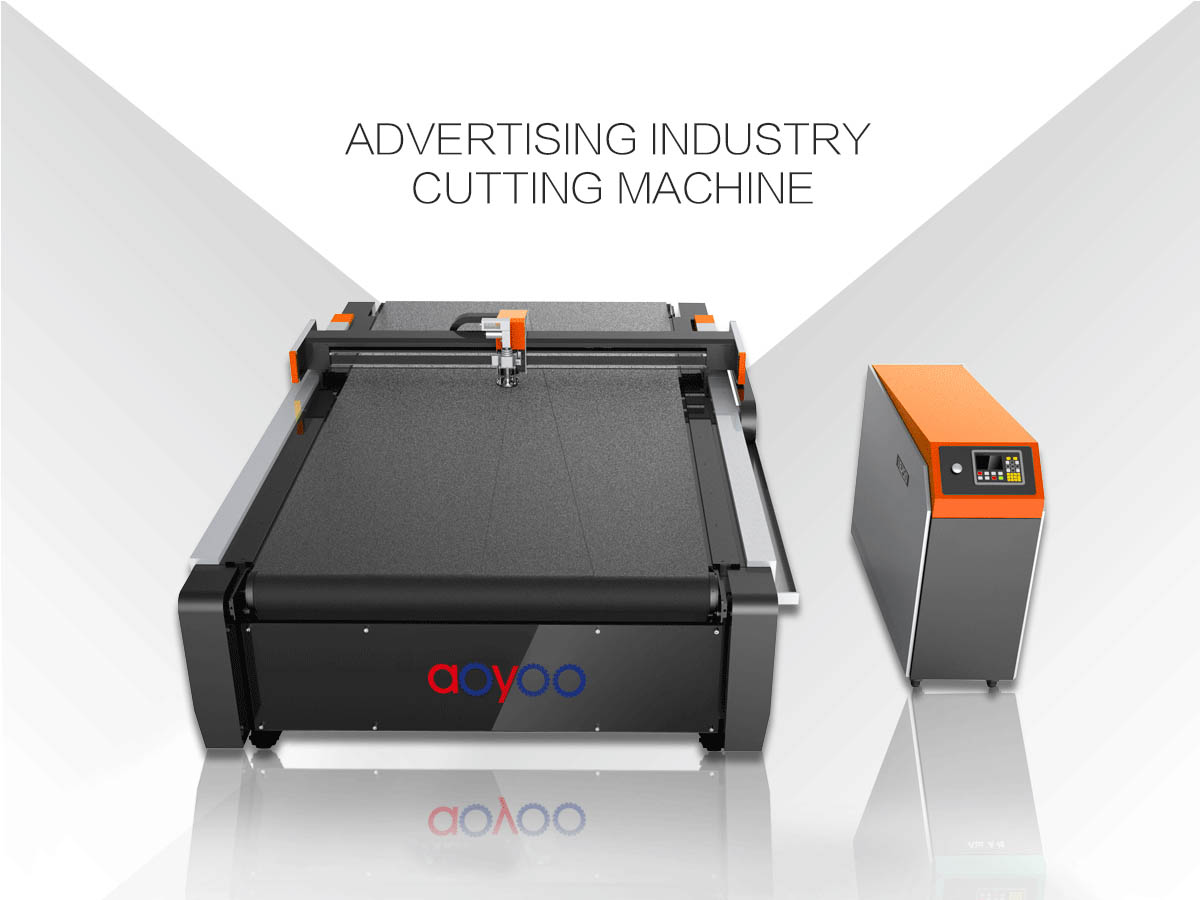

Flatbed Cutter Plotter Table

Features of flatbed cutter plotter table

Innovative solutions for the graphics industry

1). Distinctive means successful

Signage, intricate lettering, tradeshow exhibits or complex 3D displays: these products are as multifaceted as AOYOO flatbed cutter plotter table. AOYOO‘s modular building-block concept is sure to give you the perfect tool for every material - whether vinyl, cardboard, polypropylene, acrylic, foamcore or wood. With uncompromising, professional quality, AOYOO flatbed cutter plotter table let you convert your clients‘ ideas into products that make an impression.

2). Attracting customers with creativity

Only the most creative impulses will get through to the customer. Nowhere is this more apparent than in the graphics industry, which makes the need for innovative cutting solutions even more pressing. AOYOO flatbed cutter plotter table rise to the challenge with their intelligent control, unsurpassed flexibility, and flawless cutting technology. Our cutting solutions are carefully designed to meet your individual cutting needs and deliver the quality and productivity you expect.

Specification of flatbed cutter plotter table


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Applicable materials

Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm



Application And Details of flatbed cutter plotter table

Leather, cardboard, fiber glass, KT board,sticker,display card board,corrugated cardboard, honeycomb cardboard, sticker, film, foam board,acrylic board, rebound rubber, rubber cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.


Application

Details

Cutting material in advertising industry

AOYOO flatbed cutter plotter table is equipped with advanced tool module quick replacement, which is strongly universal, easy, convenient and handy.

Corrugated board----POP display stand, craftworks,carton---- Oscillating knife, creasing tool


Honeycomb board----display stand, creative works, protective packaging---- Oscillating knife, V-cut tool


Grey board----Advertising board, photo frame, storage box, creative artworks---- Oscillating knife, V-cut tool


KT board----POP display stand, logo, mannequin plate, poster, photo frame---- Oscillating knife, V-cut tool


PP paper----Display stand,poster,Roll upBanner,photo---- Drag tool


Sticker----Logo, label---- Kiss-cut tool


ABS---Display stand, POP billboard---- Router


Plastic----AD display, light box, file, gift box---- Drag tool, Oscillating knife


MDF----Display stand, creative works, furniture---- Router

In order to help you find a solution for your cutting needs, we have added a list of all of the kinds of intelligent blade tool.


intelligent blade tool

Advantages

Our Service


1).One year free warranty(except consumable parts), main parts are free of charge
when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.


Patent And Safety Certificate


Patent certification

Machine Packaging Details


Packaging Advantages

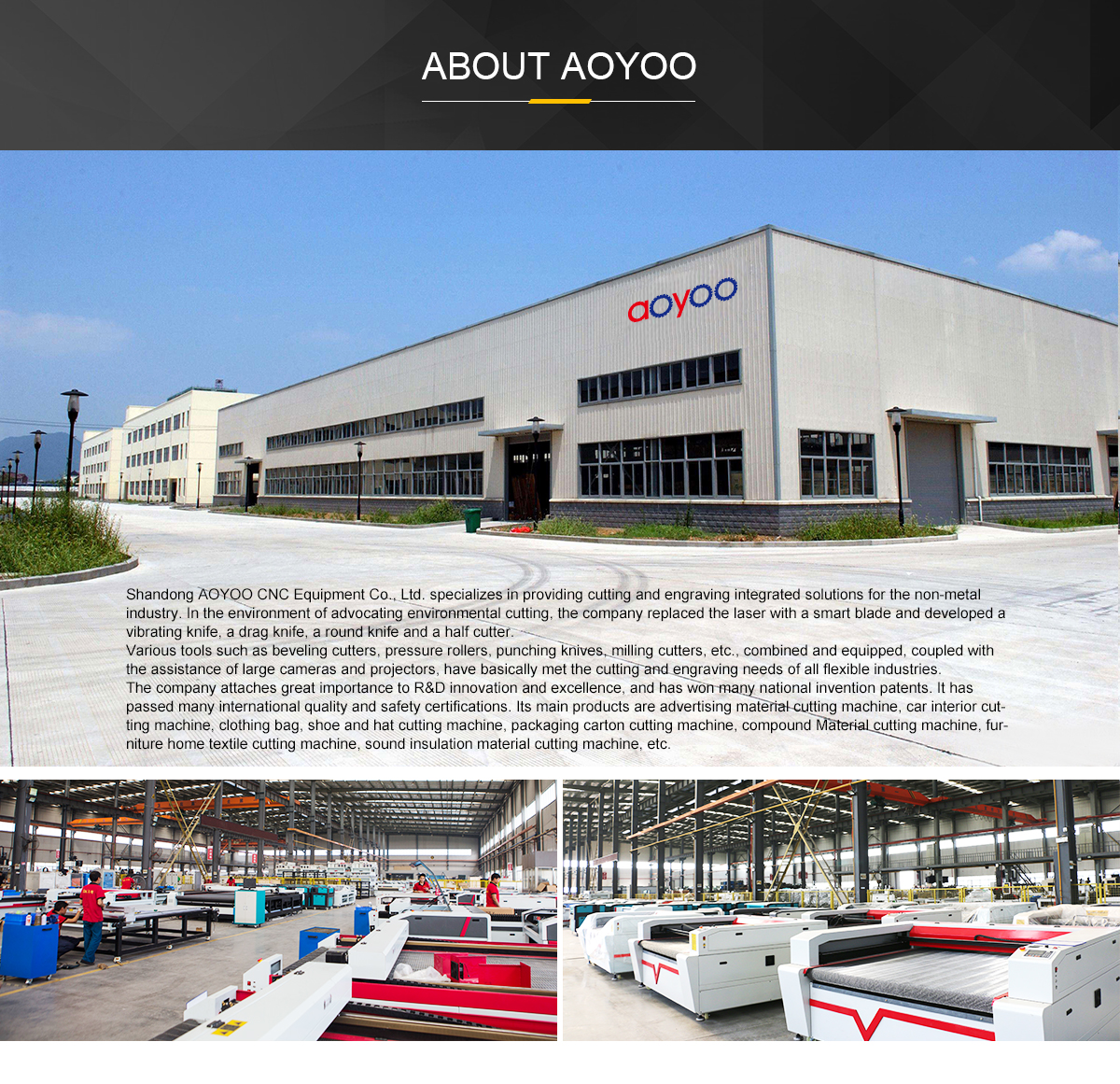

About AOYOO

Shandong AOYOO is one of the professional flatbed cutter plotter table manufacturers and suppliers in China, welcome to buy our flatbed cutter plotter table from Jinan and check the price with us.


About AOYOO

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
