custom suit ply cutter

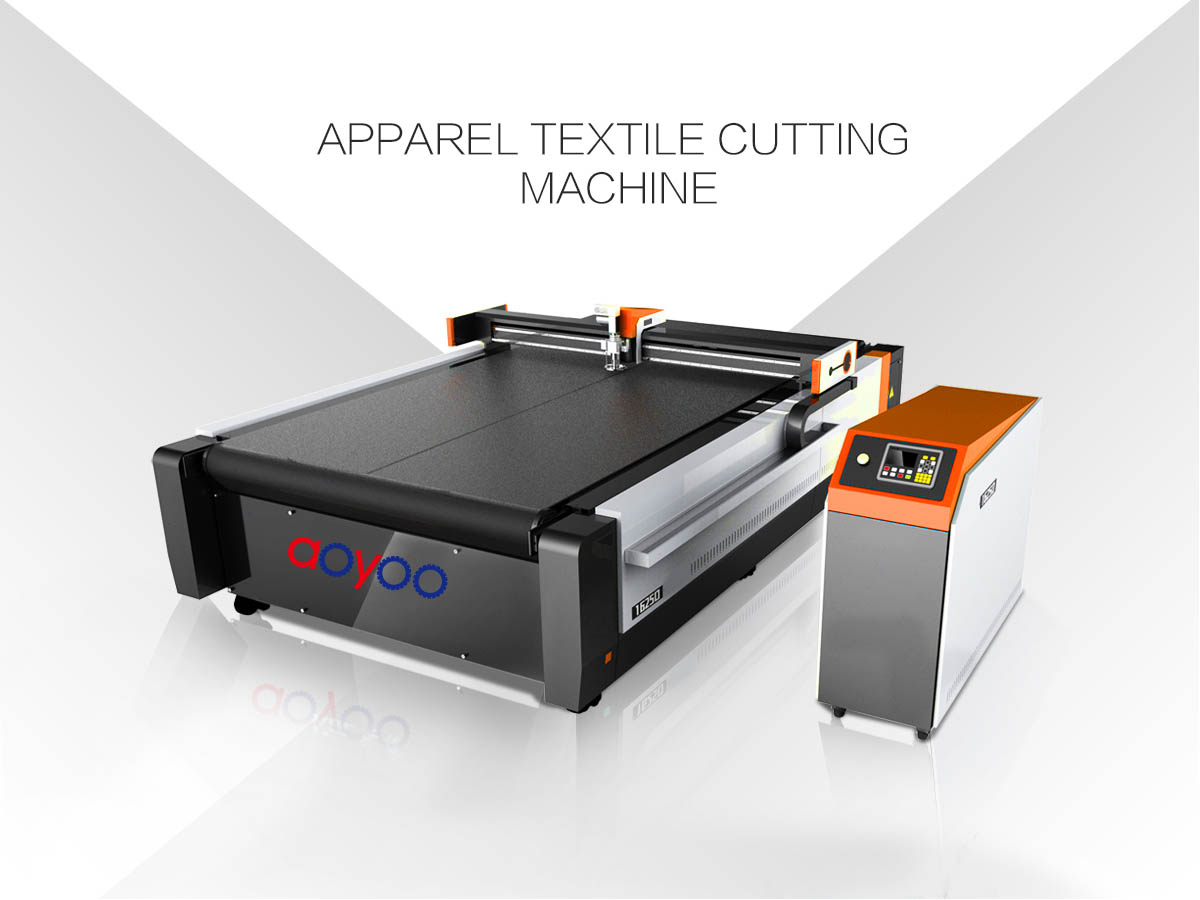

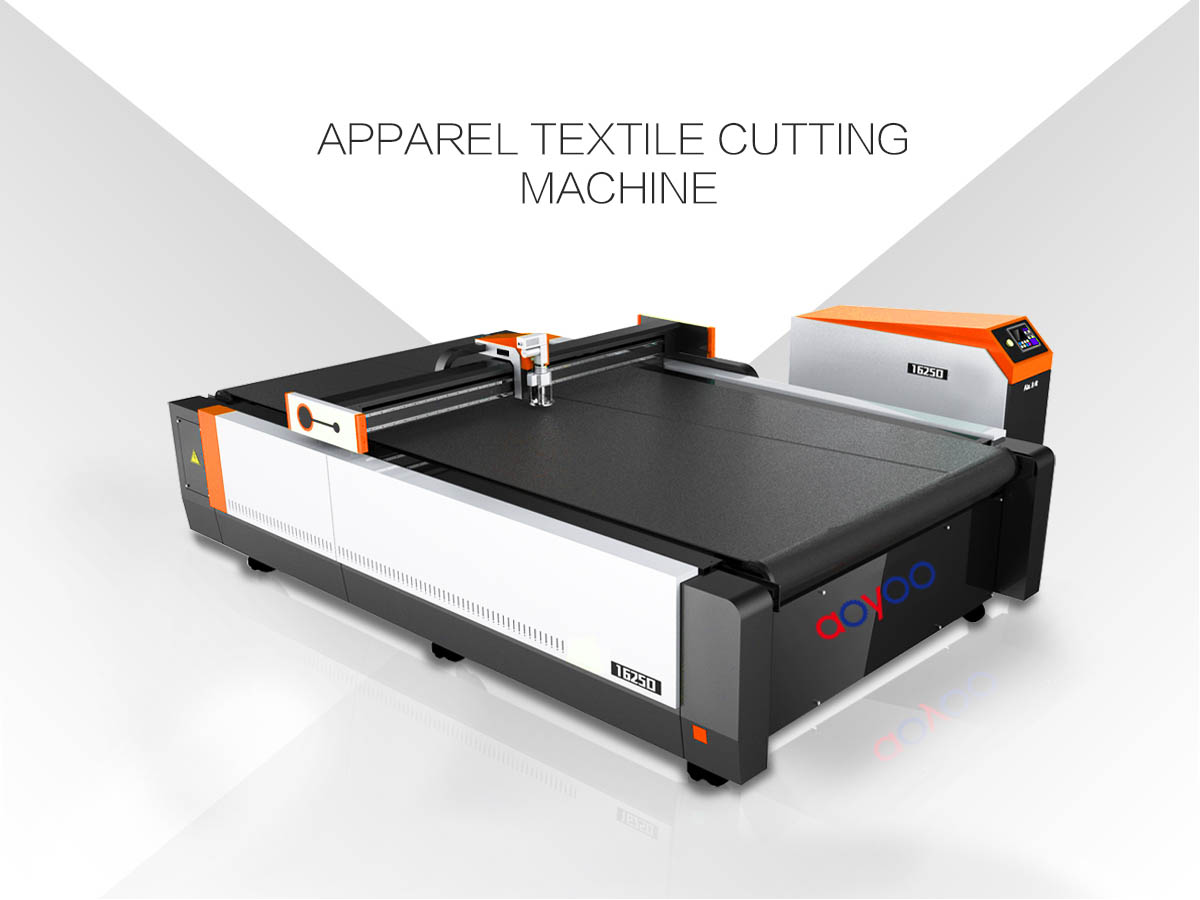

Custom Suit Ply Cutter

Features of custom suit ply cutter

● Adopting the international advanced replaceable head design concept, the tool head is not fixedly welded, and can be easily replaced and added with different function heads according to actual work needs and business scope expansion;

● Considering the actual use of environmental factors by customers, the anti-interference operation screen is specially configured, and it is not affected by the surrounding electronic environment during work, and will not be screened;

● Adopting domestic leading explosion-proof treatment design (which can prevent short circuit of conductive powder), special treatment of lines and interfaces to make cutting conductive materials safer;

● Add special stabilizing device to effectively reduce the jitter of equipment and keep the performance of the machine stable and accurate for a long time;

Contact Now

Share： WhatsApp

+86-531-88965706

aollaser20@aollaser.com

Specification of custom suit ply cutter

Technical parameters / model	AOYOO-1625-ZS6	AOYOO-1825-ZS8
Effective working area	1600x2500mm	1800x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI、PLT、DXF、CDRetc
Overall size	3570x2290x1165mm	3570x2500x1165mm

Application And Details of custom suit ply cutter

Applicable materials of custom suit ply cutter: Leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Application

Machine Details of custom suit ply cutter:

Configure a variety of tools and pen tools such as vibrating knife, drag knife, round knife (optional with a wheel cutter, pneumatic round knife), etc., depending on the different needs of different materials, such as writing lines, dotted lines, and half Cut and cut, full cut and other functions, can be cut into a variety of flexible materials such as single / multi-layer glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, aramid fiber.

In order to help you find a solution for your cutting needs, we have added a list of all of the kinds of intelligent blade tool. Click to learn more.

Details

Advantages of custom suit ply cutter

Advantages

Service

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

Patent And Safety Certificate

Patent And Safety Certificate

Machine Packaging Details

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity.

We can package according to your requests.

Machine Packaging Details

About AOYOO

Shandong AOYOO is one of the professional custom suit ply cutter manufacturers and suppliers in China, welcome to buy our custom suit ply cutter from Jinan and check the price with us.

About AOYOO

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
