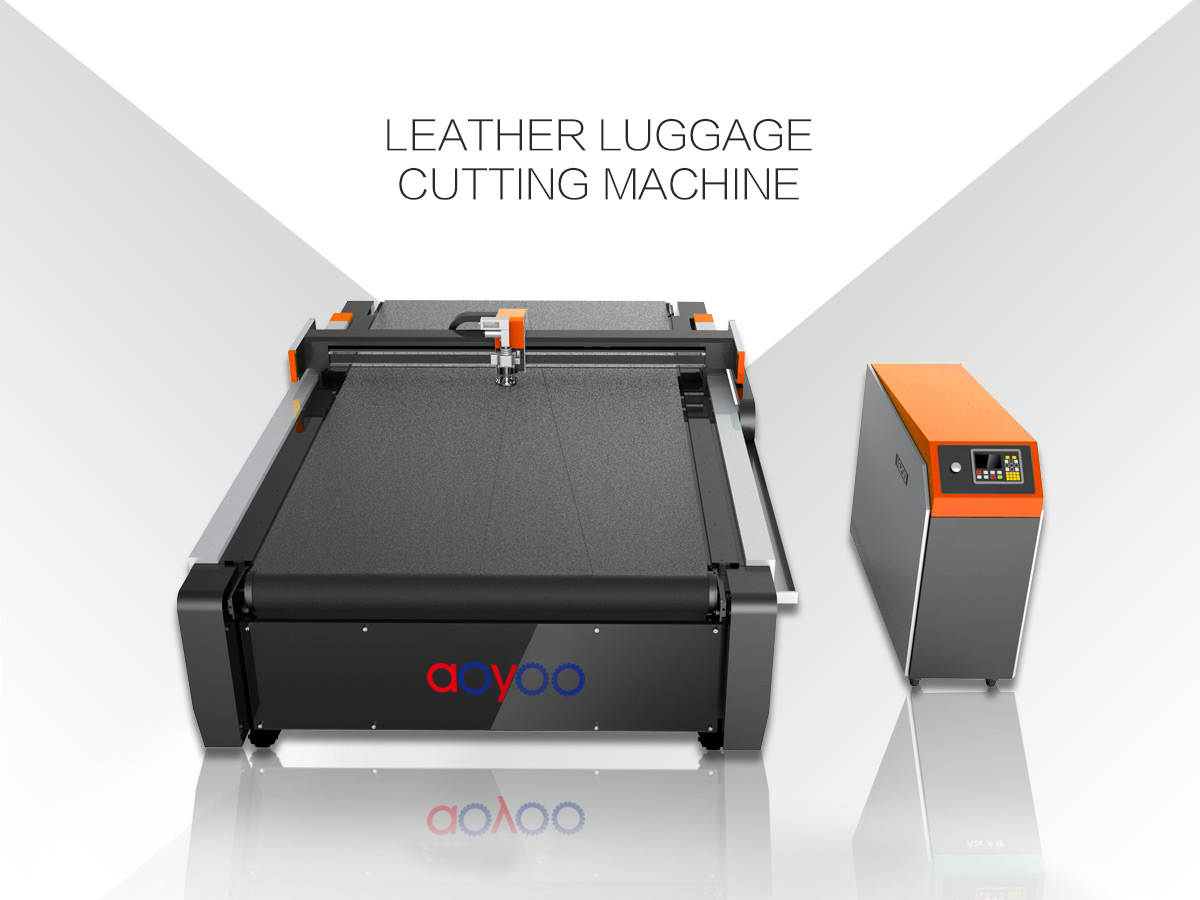

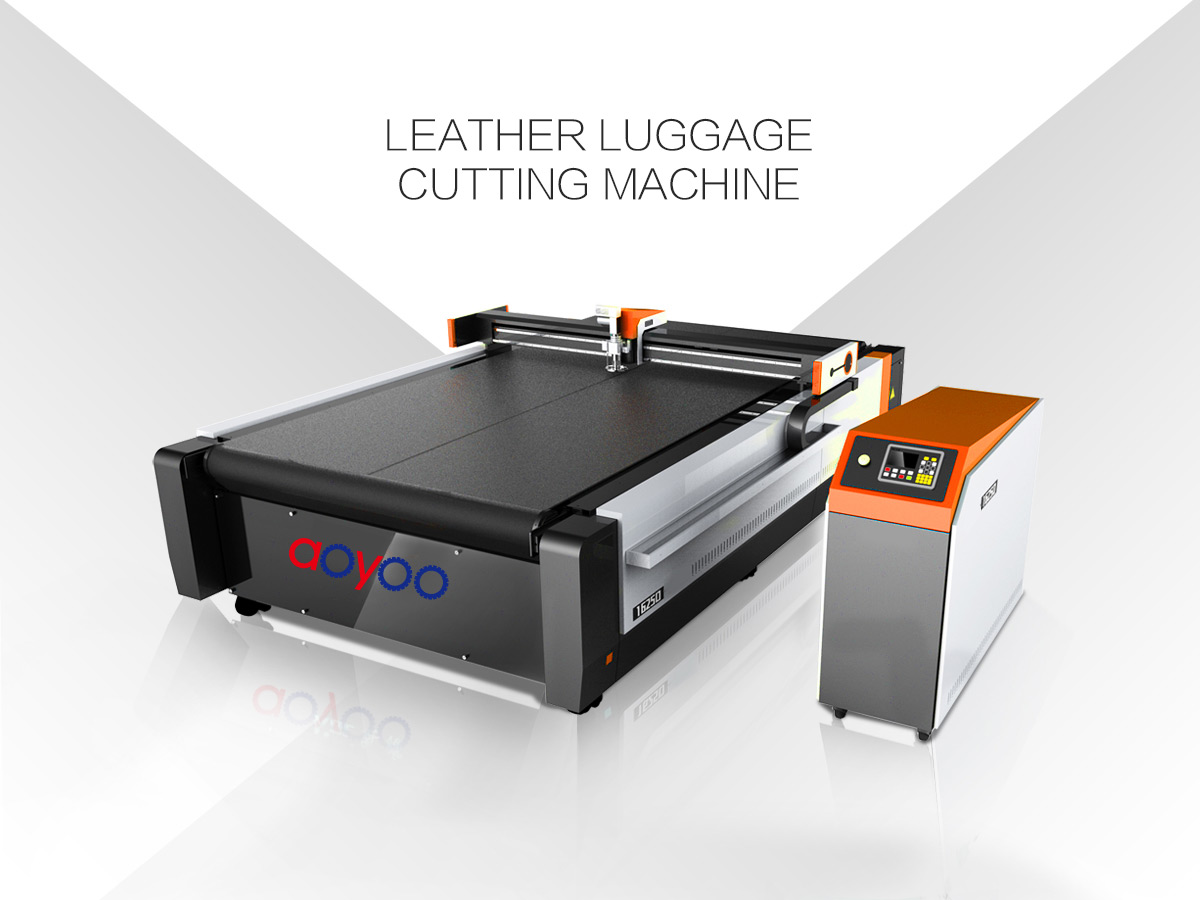

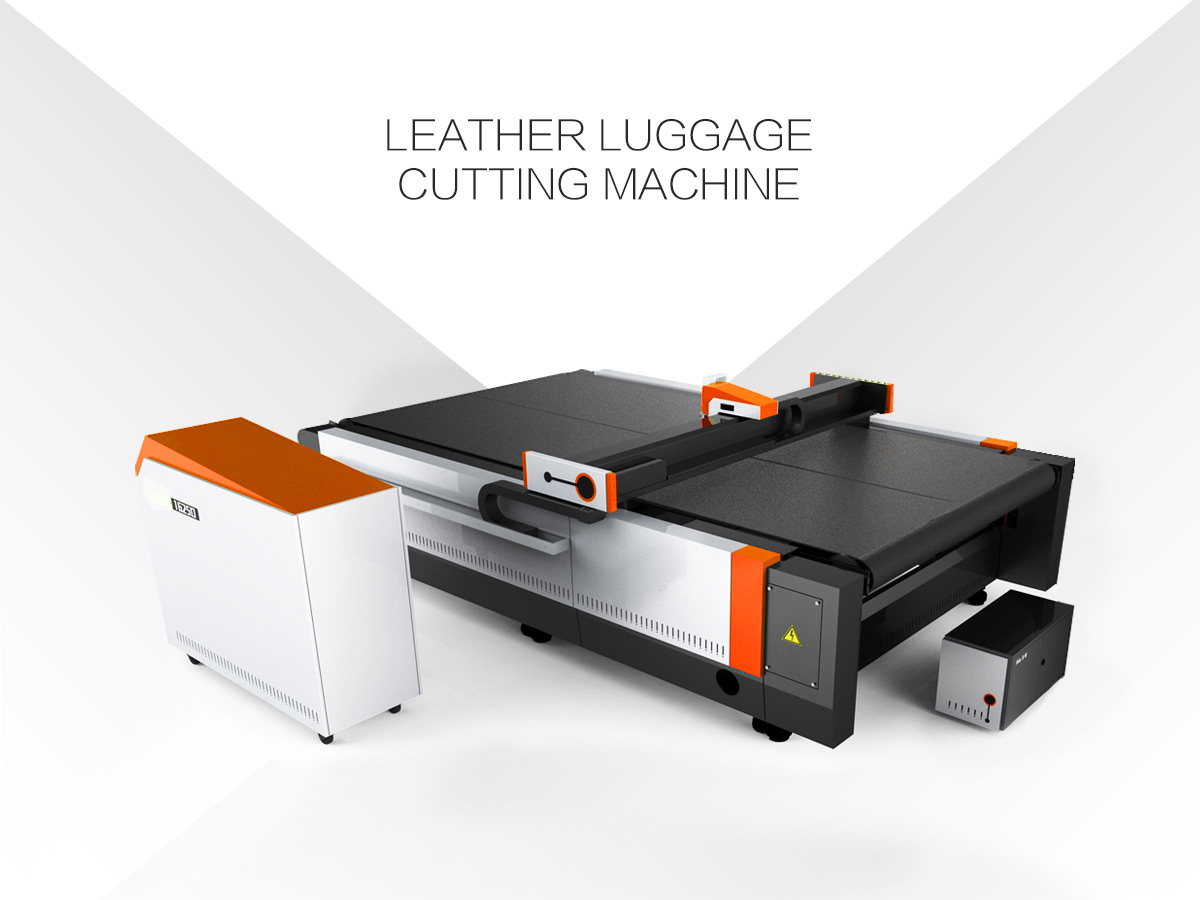

CNC Oscillating Knife Leather Cutting Machine

Features Of CNC Oscillating Knife Leather Cutting Machine

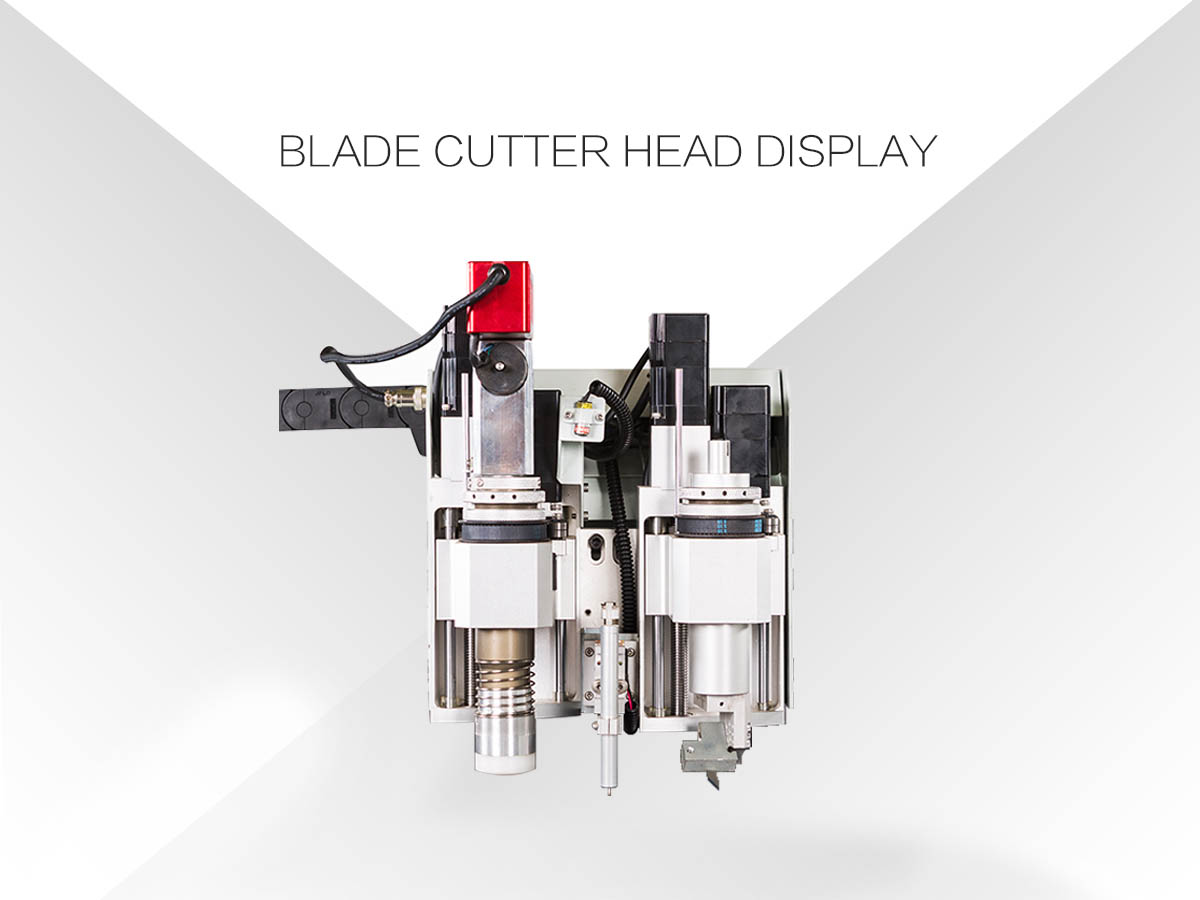

The cnc oscillating knife leather cutting machine is a multi-functional digital cutter that meets a variety of needs. The modularized tool head structure enables convenient tool-switching and provides economical future upgrading. The digital cutter's six axis motor-controlled CNC system performs with high speed and accuracy. The DSP integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction. The Ethernet port, user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment. The LCD touch screen panel makes it easy to learn and operate. The leather luggage suitcase cutting machineoffers flexible tool module options that meet the requirements of diverse industries.

Contact Now

Share： WhatsApp

+86-531-88965706

aollaser20@aollaser.com

Specification Of It

Technical parameters / model	AOYOO-1625-ZS6	AOYOO-1825-ZS8		AOYOO-2125-ZS10		Accept unconventional model customization
Effective working area	1600x2500mm	1800x2500mm		2100X2500
Multi-head optional	Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized
Multi-function tool	Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Software	Automatic nesting software, template entry software（Optional）
Support file format	AI、PLT、DXF、CDRetc
Overall size	3570x2290x1165mm		3570x2500x1165mm		3570x25800x1165mm

Application And Machine Details

Automatic cutting machine applicable fabrics: cotton, linen, silk, blends, fibers, leather, wool, modal (pay special attention to poor fiber cut).

CNC oscillating knife leather cutting machine applicable industries: apparel, automotive interiors, home, luggage, footwear, home textiles, outdoor tents and other large-scale production and processing enterprises.

Application

Details

Advantages

Our Service

1.Guarantee for 1 years.

2.We will provide the consumable parts at an agency price.

3.24 hours online service, free technical support.

4.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, please kindly tell me.

5.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

FAQ

1. How can I run it ?
1) come to our factory to learn
2) send you tthe operation video and english instruction for use
2. What else I need except the machine?
A computer (windows XP, windows 2000, win7 /8
3. How about your guarantee ?
12 months guarantee, we can change it during the guarantee time if the part damaged.
4. What is your payment?
1) T/T: 30% deposit ; 70% before shipping. convenient and fast.
2) Alibaba Secure payment,Trade Assurance, Reliable and safe.
3) L/C

Patent certification

About AOYOO

Shandong AOYOO is one of the professional cnc oscillating knife leather cutting machine manufacturers and suppliers in China, welcome to buy our cnc oscillating knife leather cutting machine from Jinan and check the price with us.

Packaging Advantages

About AOYOO

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
