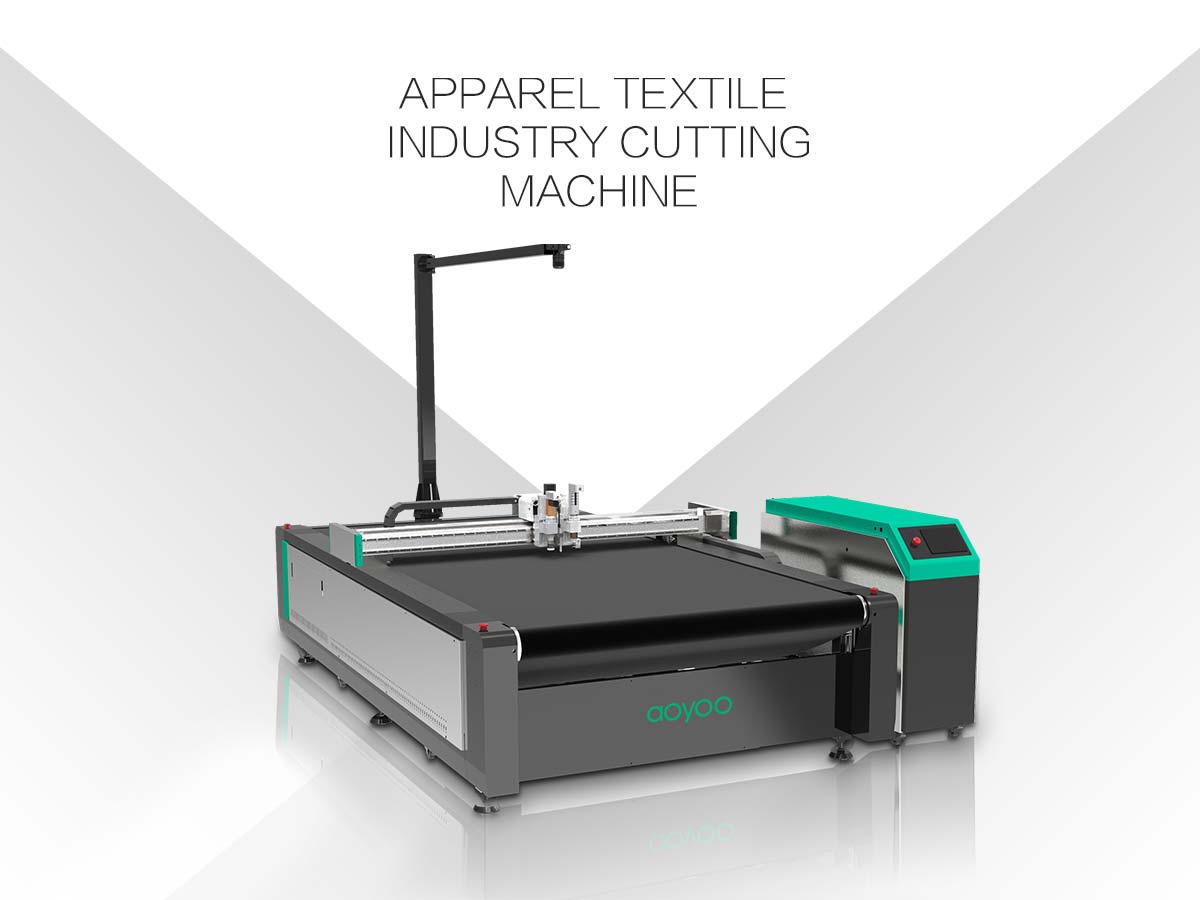

Automatic Garment Pattern Cutter

Features of Automatic Garment Pattern Cutter

1. Target market:

Manufacturers of high quality clothing.

2. Materials:

Patterned, woven or printed fabrics.

3. Outstanding advantages:

Semi-automatic pattern matching with millimetre accuracy in a pre-determined hierarchical sequence.


Specification of Automatic Garment Pattern Cutter


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Applicable materials

Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm


Application of Automatic Garment Pattern Cutter

Applicable for Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, Soft glass, Silicon, Rubber etc.


Apparel Textile Cutting Machine Cutting Samples

Advantages of automatic garment pattern cutter


Our automatic garment pattern cutter is equipped with varied knife tools, blades. With suitable configuration, it can meet different functions,such as cutting, drawing,  punching, plotting, routing,etc. It can be applied to every flexible or soft material with excellent cutting performance. It is high speed, high intelligent, high precise cutting , easy operation,etc. It can connect with other software well with data converting software. It help industry upgrade from traditional manual sampling to advanced high speed and precision production mode.

In order to help you find a solution for your cutting needs, we have added a list of all of the kinds of intelligent blade tool.


Cutting material

Standard advanced tool changer module, which is extremely versatile and easy to change tools.


Kraft paper----Sample-making of garment components,processing---- Oscillating knife, creasing tool


Canvas----Sample-making of garment components,processing---- Wheel-cut tool


Artificial leather----Sample-making of garment components, processing---- Oscillating knife


Sponge----Sample-making of garment components, processing---- Oscillating knife


Blended fabric----Sample-making of garment components, processing---- Wheel-cut tool


Cotton and hemp material----Sample-making of garment components, processing---- Wheel-cut tool


Oxford cloth----Sample-making of garment components, processing---- Wheel-cut tool


Fur----Sample-making of garment components, processing---- Oscillating knife


Knit----Sample-making of garment components, processing---- Wheel-cut tool

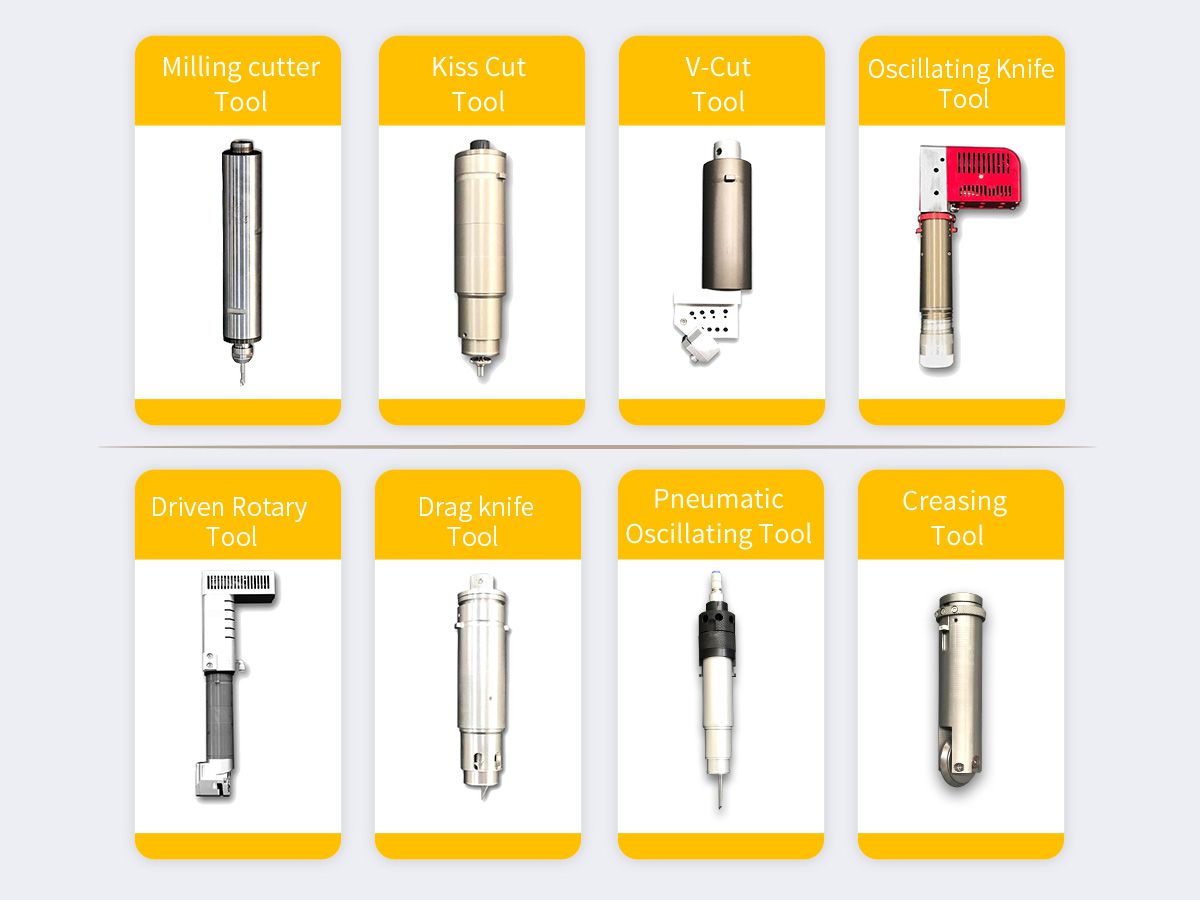

intelligent blade tool



Our service

1)One year free warranty(except consumable parts), main parts are free of charge

when problems happened because of quality problem during this period.

2).Life time free maintenance service.

3).Consumable parts(like blade, table cover) alway supply at cost price when needed.

4).A free operation training in our factory, and if don't have enough time, we will send

a detailed training video.

5).24 hours online service, free technical support with different languages.

6).Door to door technical support when needed.


Machine Packaging And Logistics


About AOYOO

Shandong Aoyoo CNC Equipment Co., Ltd. is a high-tech enterprise specializing in R&D, production, sales and service of CNC cutting equipment, covering an area of more than 1,000 square meters.


Developed a variety of tools such as vibrating knife, drag knife, round knife, half cutter, bevel cutter, pressure roller, punching knife, milling cutter, etc.


The company specializes in clothing textiles, cartons, luggage shoes, carpets, carbon fiber, etc.


Received a number of national invention patents, passed ISO9001, CE and FDA, and exported products to more than 100 countries and regions.


AOYOO And Customers' Moments


AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
