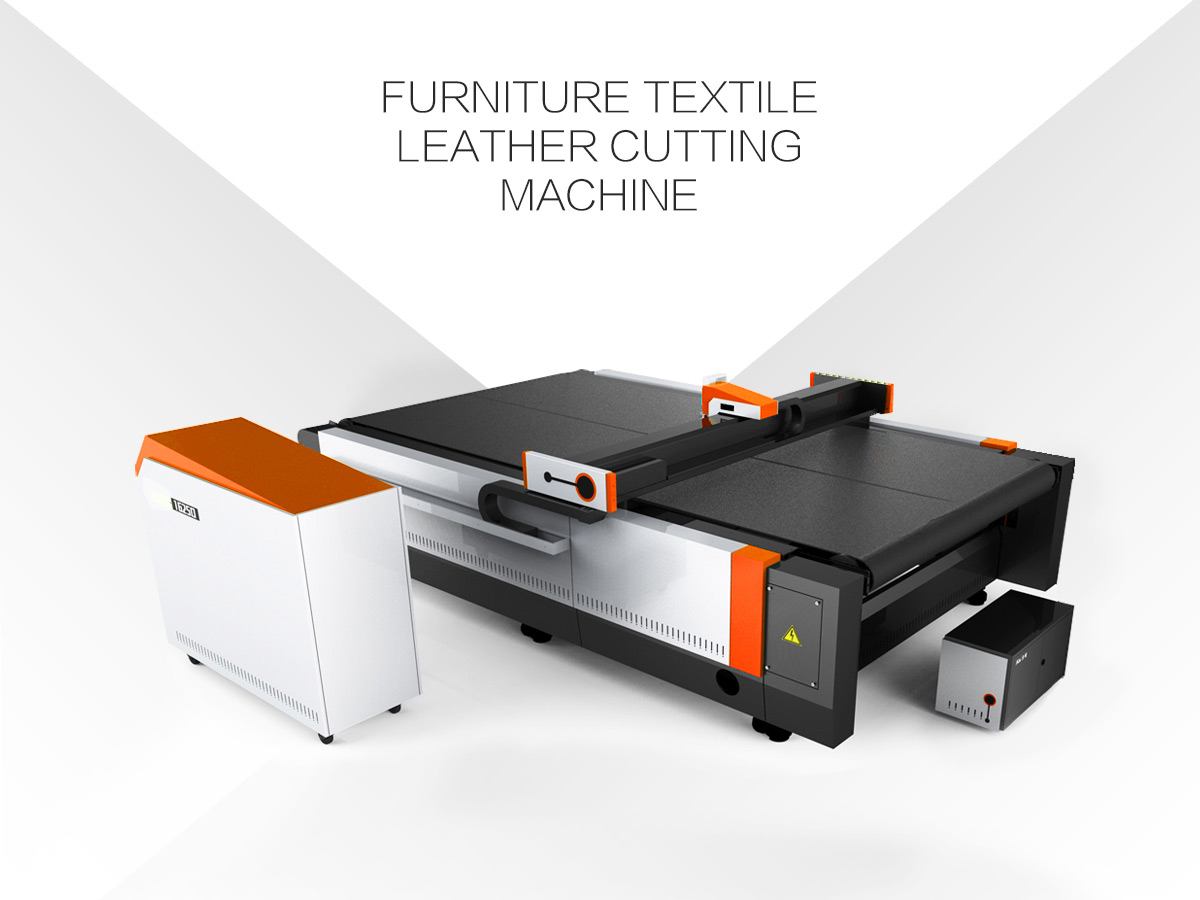

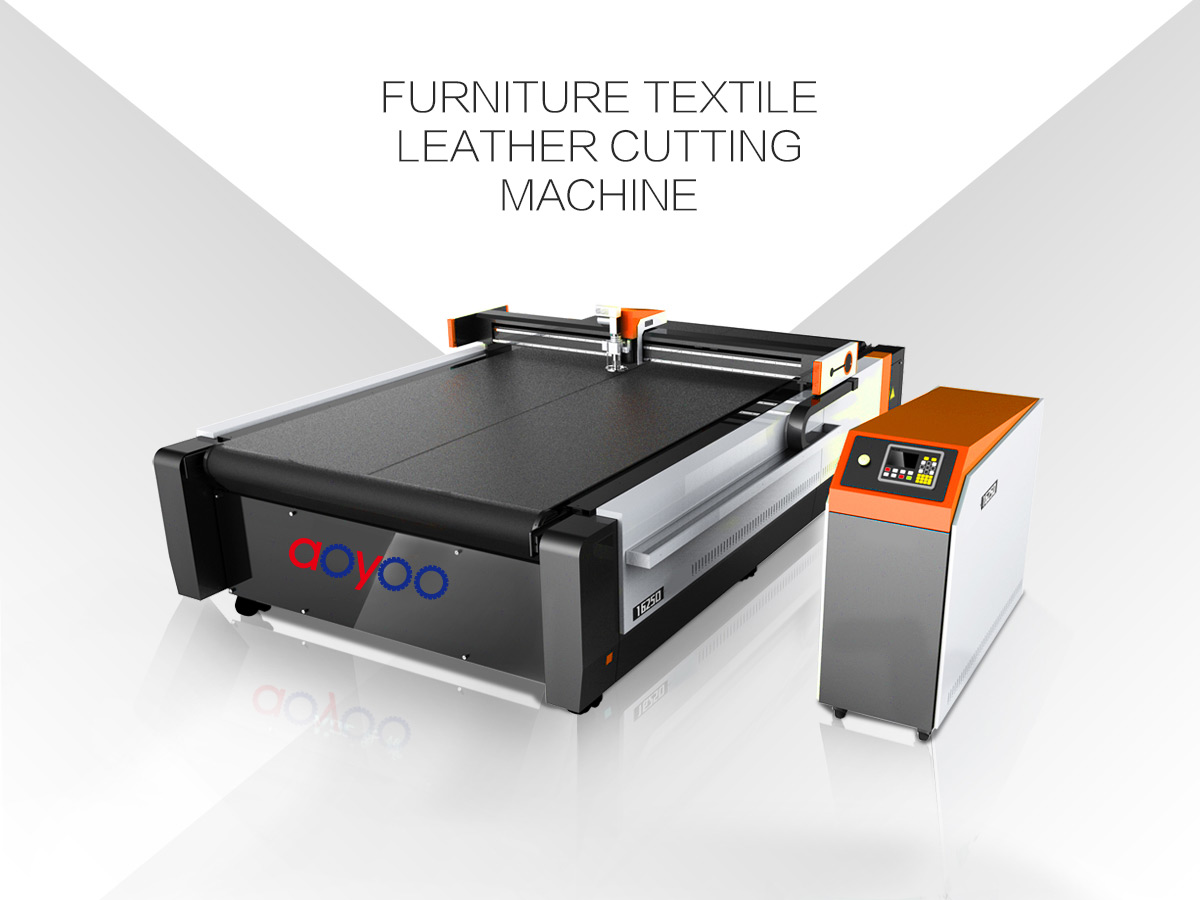

CNC fabric pattern cutting machine

CNC Fabric Pattern Cutting Machine

Features of CNC Fabric Pattern Cutting Machine

1.The CNC fabric pattern cutting machine that meets a variety of needs.

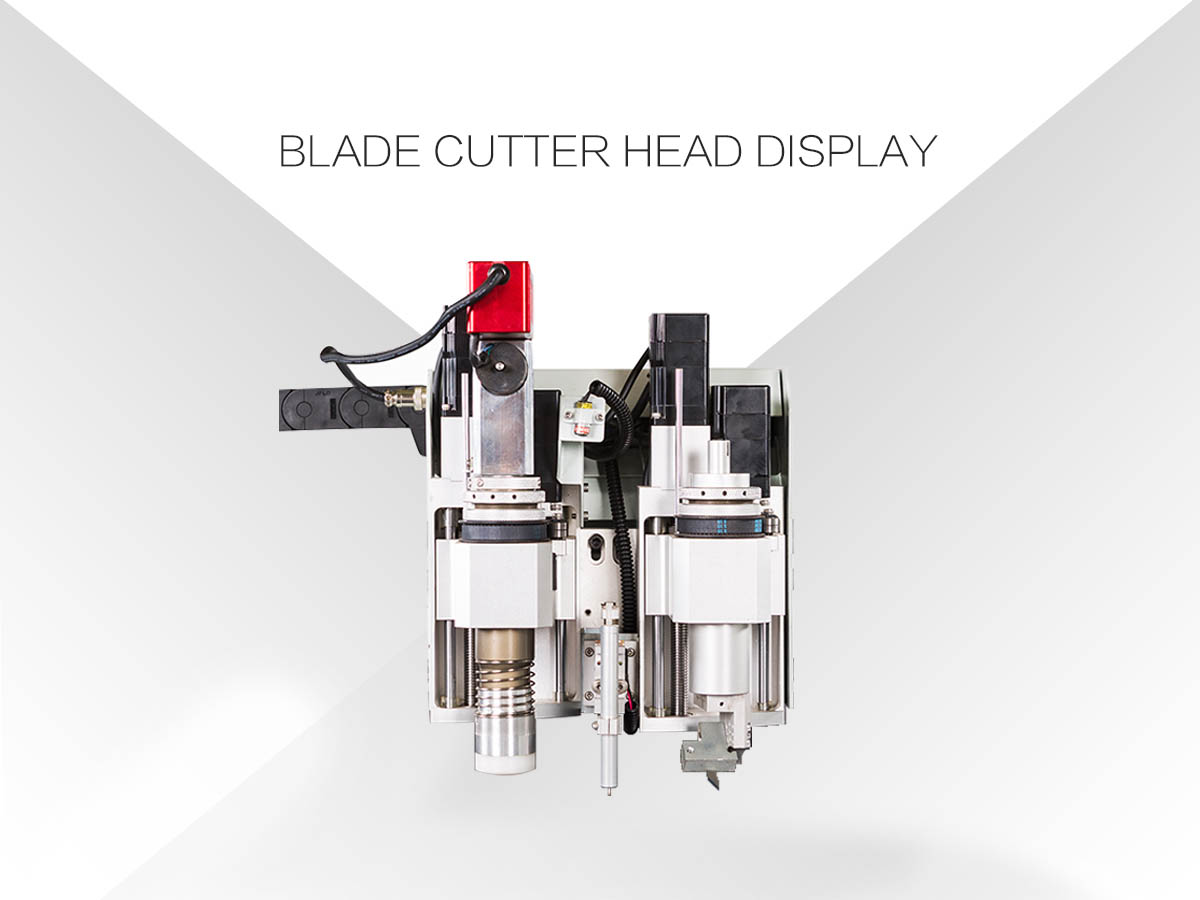

2.The modularized tool head structure enables convenient tool-switching and provides economical future upgrading.

3.The leather sofa cloth curtain table cloth cutting machine has six axis motor-controlled CNC system performs with high speed and accuracy.

4.The DSP integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction.

5.The Ethernet port, user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment.

Contact Now

Share： WhatsApp

+86-531-88965706

aollaser20@aollaser.com

Specification

Technical parameters / model	AOYOO-1625-ZS6	AOYOO-1825-ZS8
Effective working area	1600x2500mm	1800x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI、PLT、DXF、CDRetc
Overall size	3570x2290x1165mm	3570x2500x1165mm

Application And Details Of It

The CNC fabric pattern cutting machine can cut leather sofa cloth,curtain table cloth,sunshade, blackout, sunscreen, roller shades, roller blinds, zebra fabric, awanings, shangrila curtains, polyester fabrics, fabric, jacquard curtain, pleated blinds, valance, drapery, awning etc.

Application

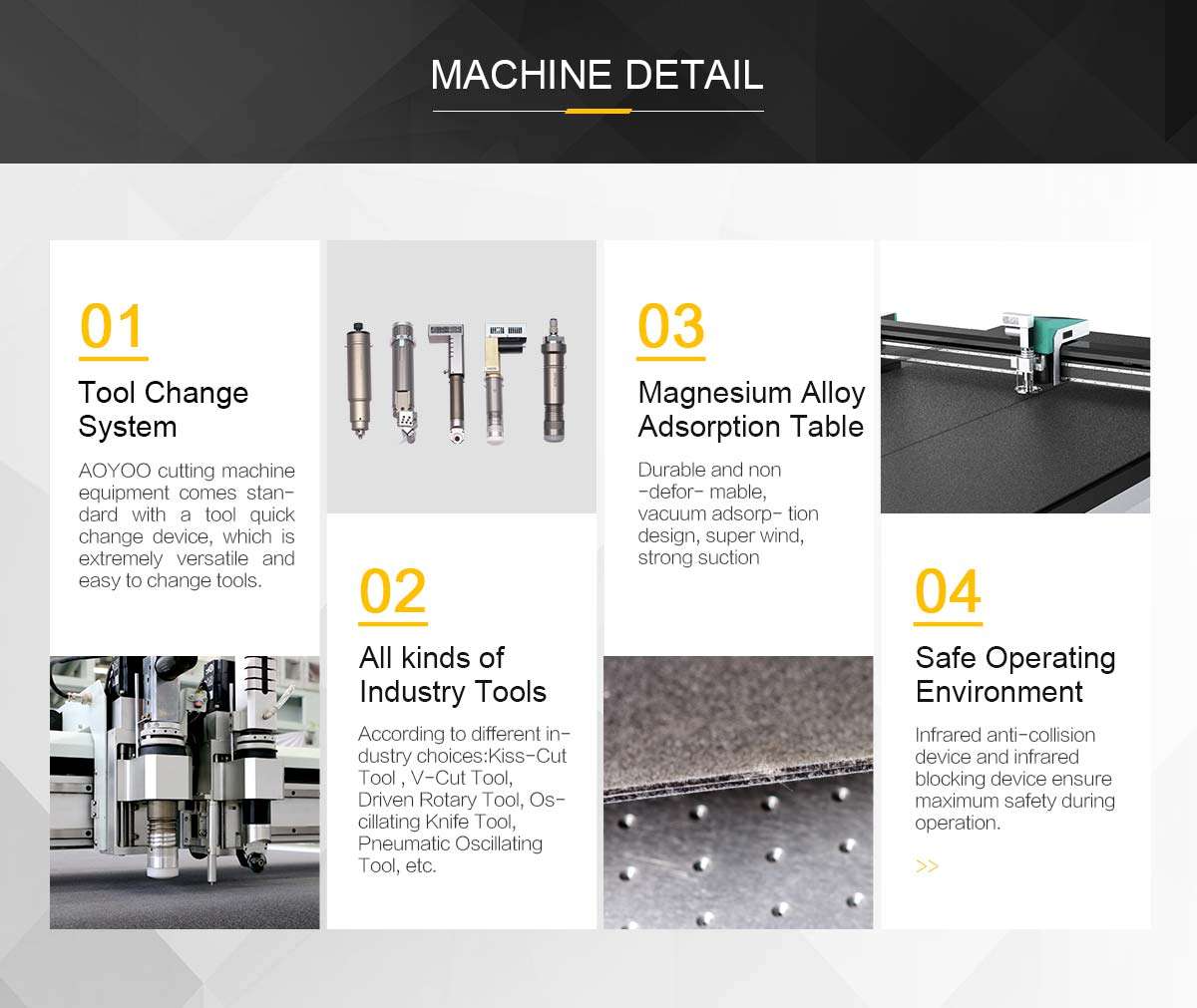

Details

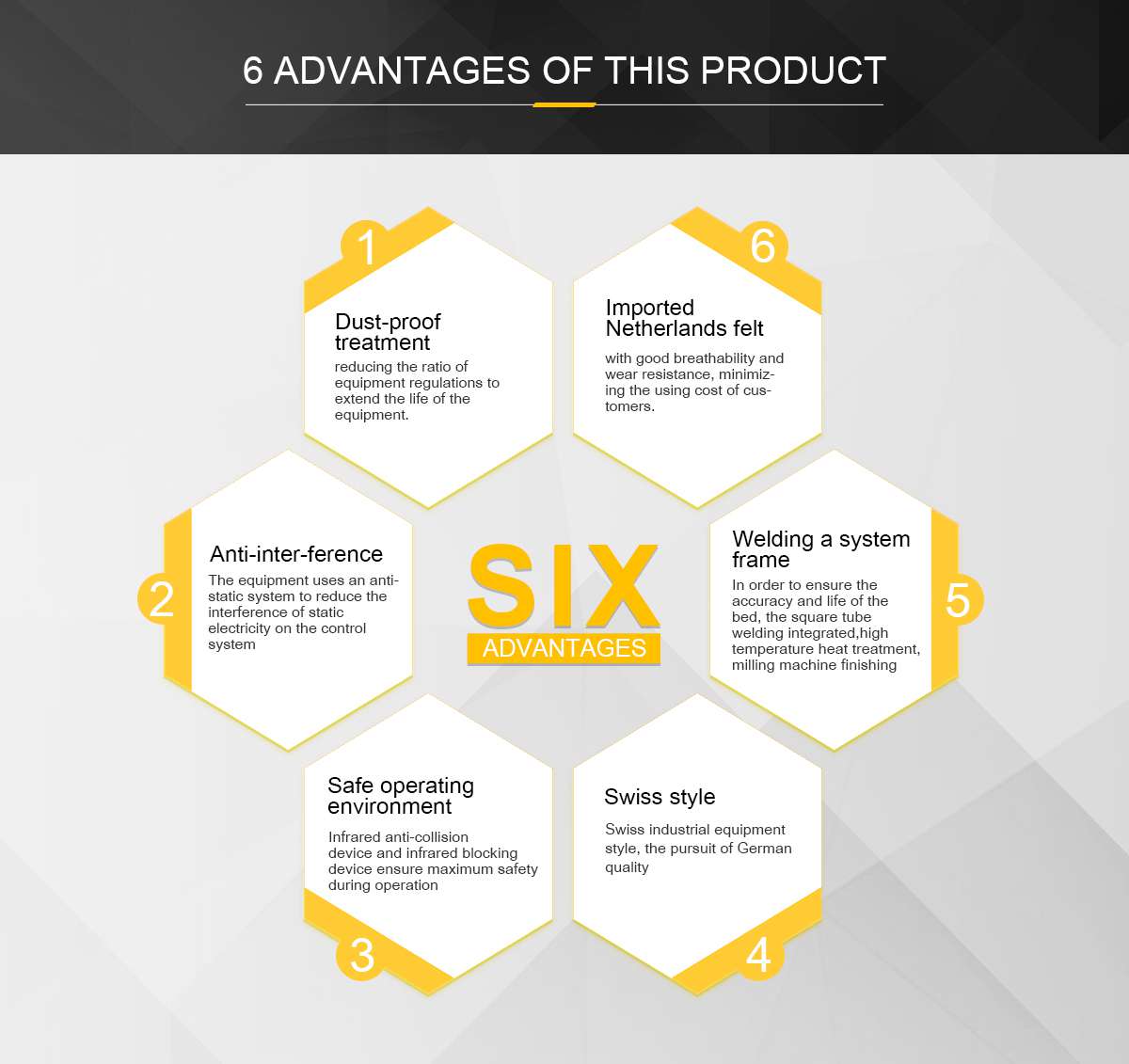

Advantages

After-sales Service And Cutter Transportation Details

Service

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

Transportation Of Our Machine

1.Whole film packaging machine.
2.Anti-collision package edge.

3.Wooden case package.

Machine Packaging Details

FAQ

Question 1: I want to buy this machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost & time?

Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?

Answer: We have been in this field for 10 years,we have CE,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4: This is the first time I use this kind of machine, is it easy to operate?

Answer:There are english manual or guide video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?

Answer:Free parts send to you in machine warranty period if machine have any problem. If the parts less than 0.5KG, we pay the postage.

Patent And Safety Certificate

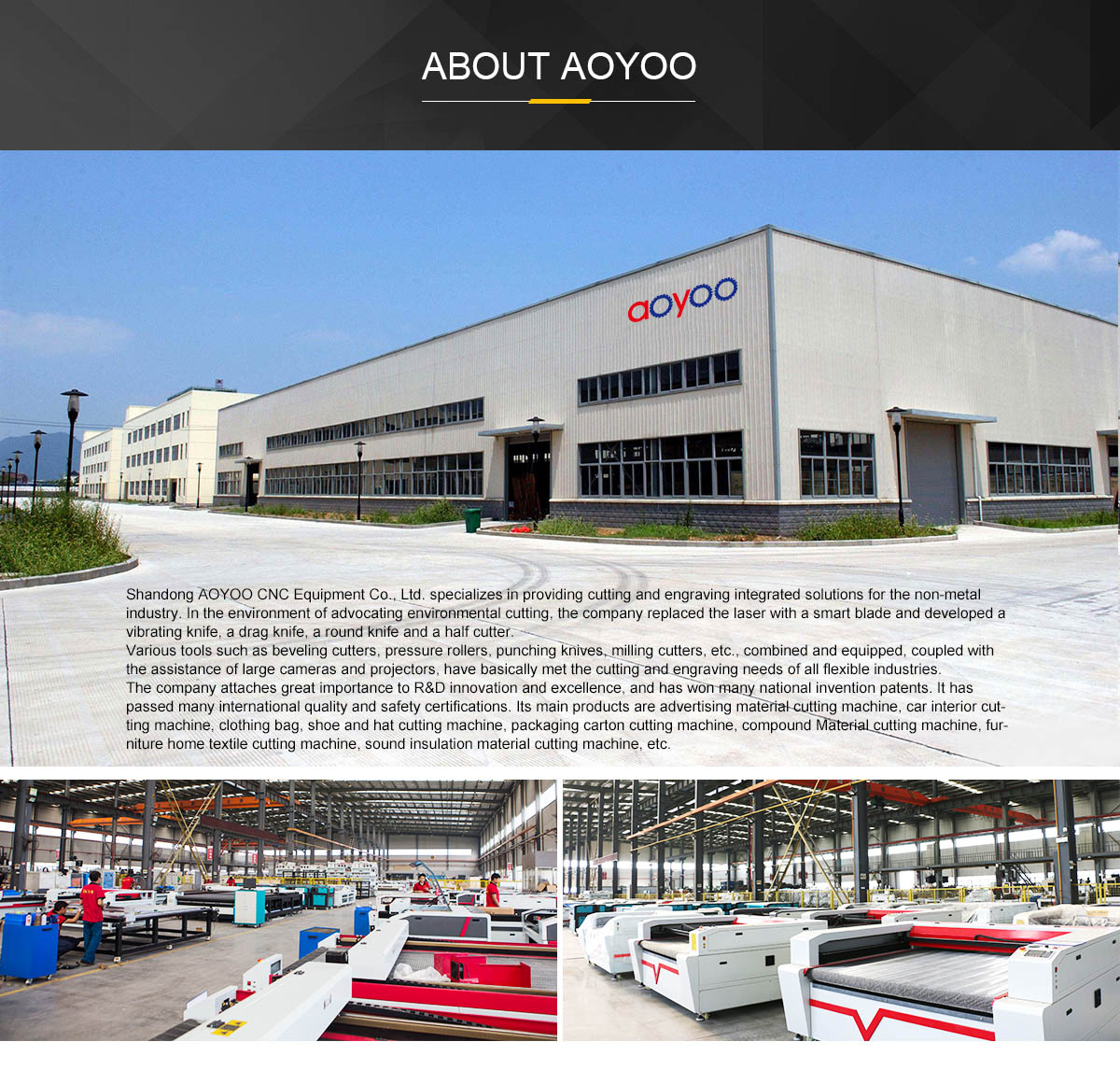

About AOYOO

Shandong AOYOO is one of the professional CNC fabric pattern cutting machine manufacturers and suppliers in China, welcome to buy our CNC fabric pattern cutting machine from Jinan and check the price with us.

Machine Packaging Details

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
