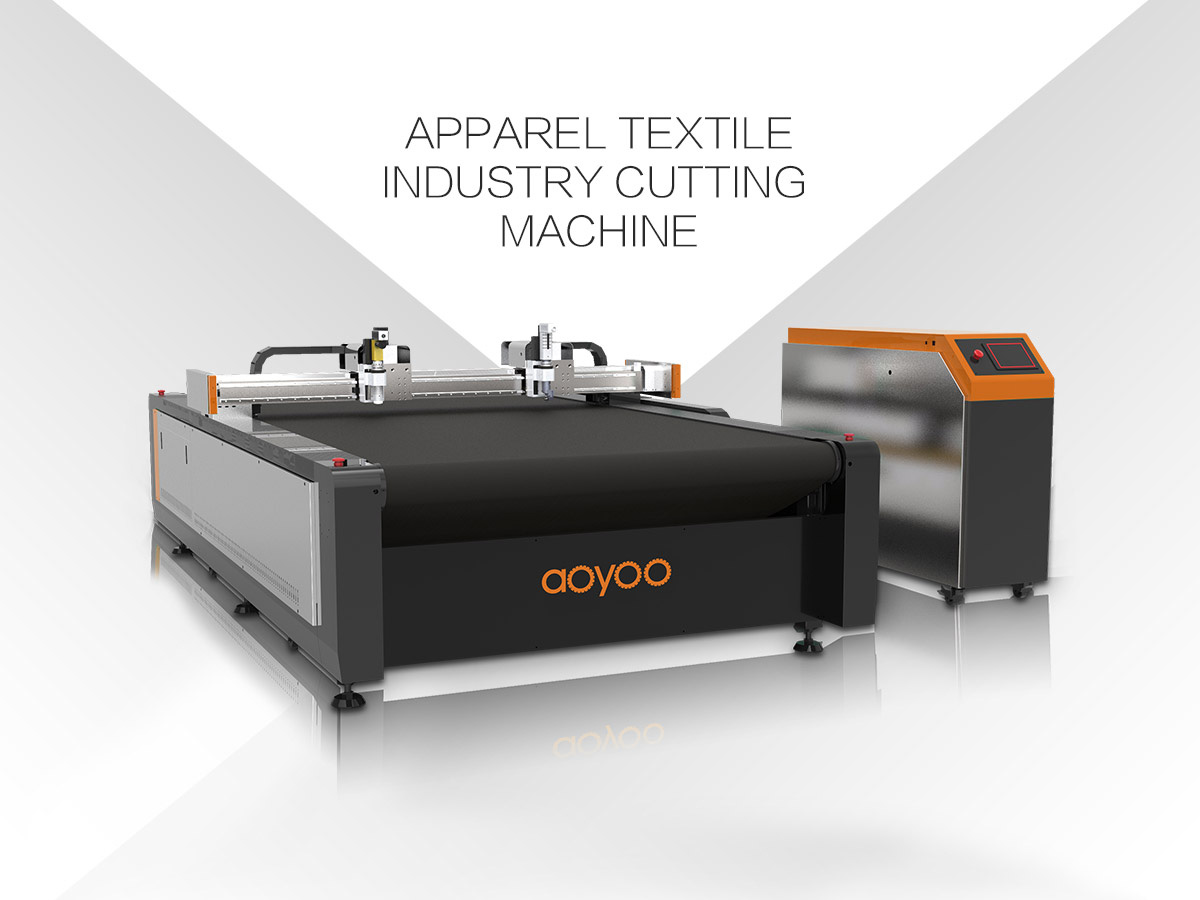

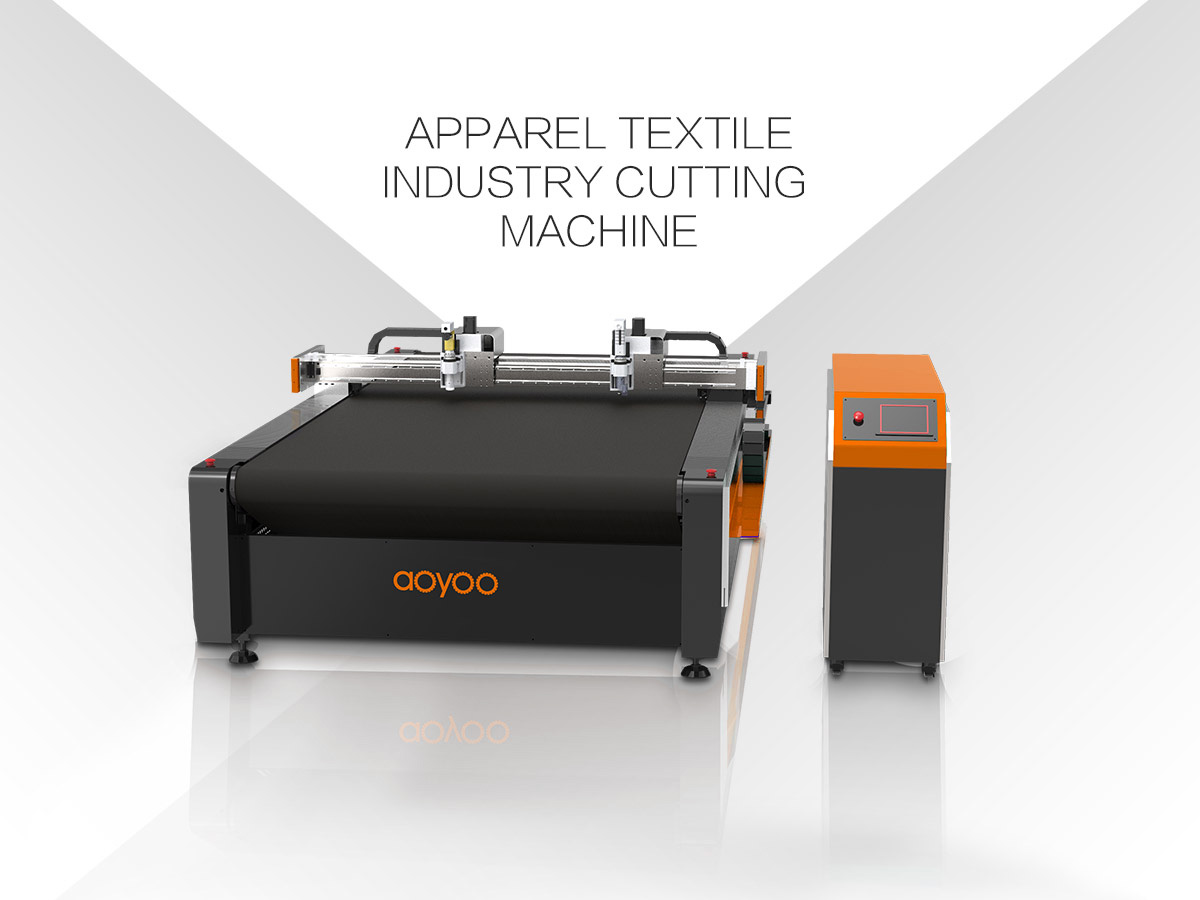

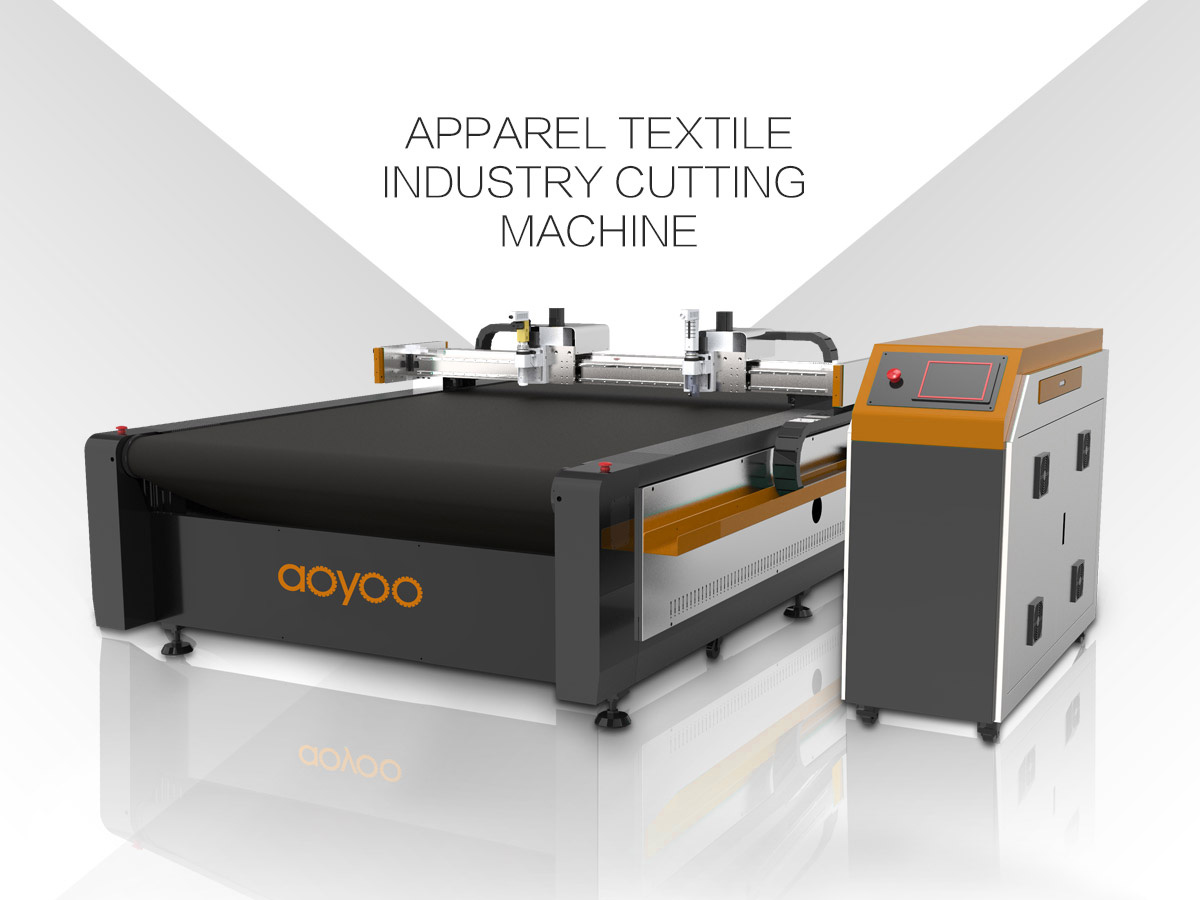

CNC Cloth pattern Cutting machine

Features of CNC cloth pattern cutting machine

Our production of CNC cloth pattern cutting machine is an intelligent fabric cutting, which device is successfully solved the traditional cutting (hand scissors, electric clippers) high-technology workers cutting costs, material waste, low productivity features .

Having computer typesetting automation, material saving, high cutting precision, high production efficiency, is a change in cropping history. Cutting height to 80mm, the nose lengthened and strengthened intensity two. CNC cloth pattern cutting machine can be tailored to specific requirements, in order to achieve the best use of the customer based on the customer.

This device uses vertical reciprocating straight knife cutting manner, specifically for cutting woven fabrics. Not only in the mechanical fully automatic control and cutting control software according to various cropping, adjusting pass sequence, cutting direction, the cutting speed and other parameters set, in order To ensure high-quality cutting.

Contact Now

Share： WhatsApp

+86-531-88965706

aollaser20@aollaser.com

Specification of CNC cloth pattern cutting machine

Technical parameters / model	AOYOO-1625-ZS6	AOYOO-1825-ZS8
Effective working area	1600x2500mm	1800x2500mm

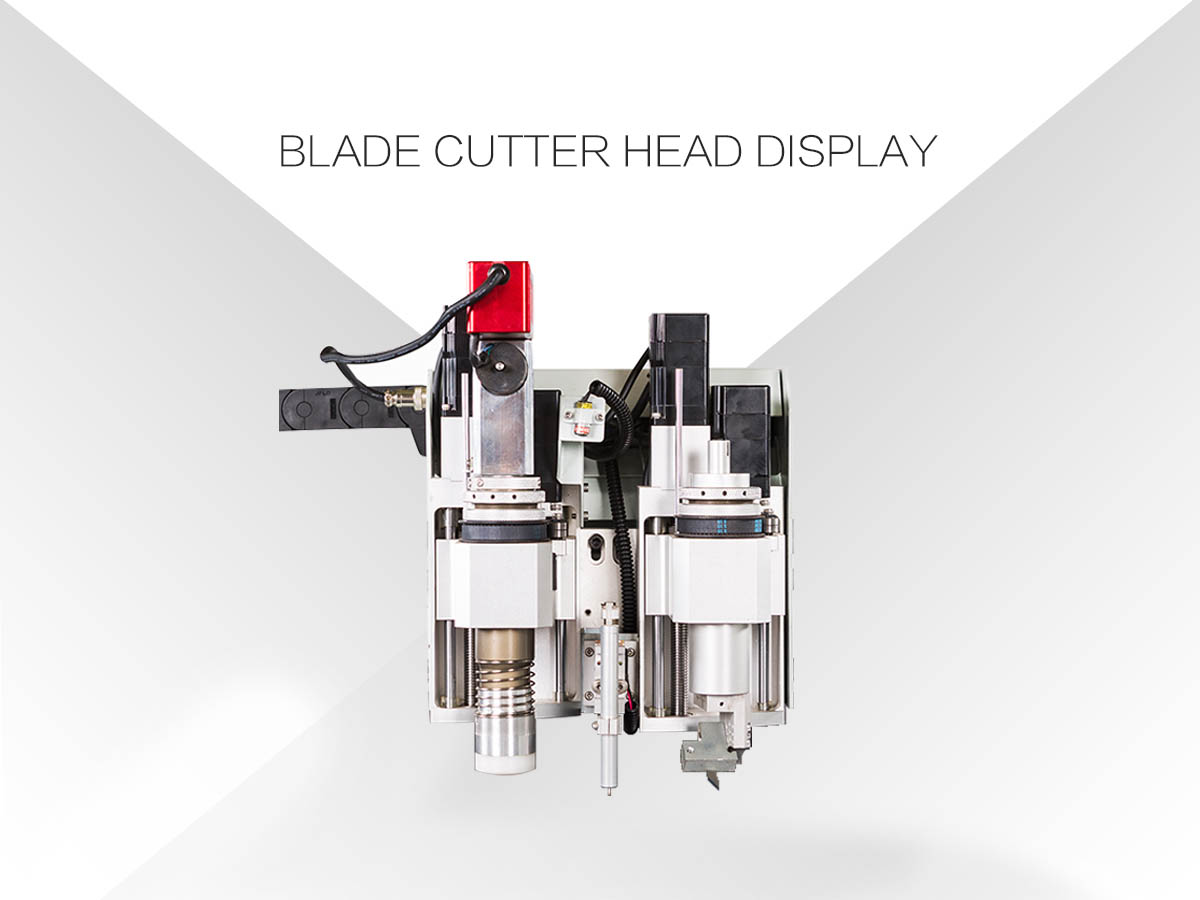

Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI、PLT、DXF、CDRetc
Overall size	3570x2290x1165mm	3570x2500x1165mm

Application And Details of CNC cloth pattern cutting machine

Applicable materials of CNC cloth pattern cutting machine: Leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Application

Details

Advantages of CNC cloth pattern cutting machine:

Outstanding advantages:

Semi-automatic pattern matching with millimetre accuracy in a pre-determined hierarchical sequence.

X/Y piece realignment in accordance with the pattern, within the blocking tolerance while retaining the exact piece dimensions (no bow & skew).

A camera bridge with its own matching window (1st table segment) makes it possible to work with a time overlap without reducing the cutter capacity (2nd table segment).

No specialist matching or cutting knowledge is required for this application.

Easy to learn and productive after only a few hours of introductory training.

Advantages

Service

1.Guarantee for 3 years.

2.We will provide the consumable parts at an agency price.
3.24 hours online service, free technical support.
4.4. The machine has been tested for quality and work before leaving the factory, and the operation panel has been included when leaving the factory.
5.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

Patent And Safety Certificate

Packaging of CNC cloth pattern cutting machine

1. Our wooden boxes are fumigated. No wood inspection is required, saving transportation time.

2. All parts of the machine are wrapped in soft materials, mainly using pearl cotton. Avoid all damage that may occur during delivery. Then, we wrapped the plastic bag tightly to ensure that the covered soft material was intact, and also to avoid water and rust.

3. The most important thing is the wooden box for the fixed template.

4. There is a strong iron jack at the bottom of the wooden box, which is convenient for handling and transportation

5 Warning signs are posted around the wooden box

Machine Packaging Details

Sales area distribution of CNC Cloth pattern Cutting machine

So far, more than 40 countries/regions have cooperated with our partners, and our agents can provide you with the fastest door-to-door service. If you want to know the detailed information of your area, please leave a message or email us, we will reply you as soon as possible, colleague, we welcome powerful agents from other regions to consult and look forward to cooperating with you!
