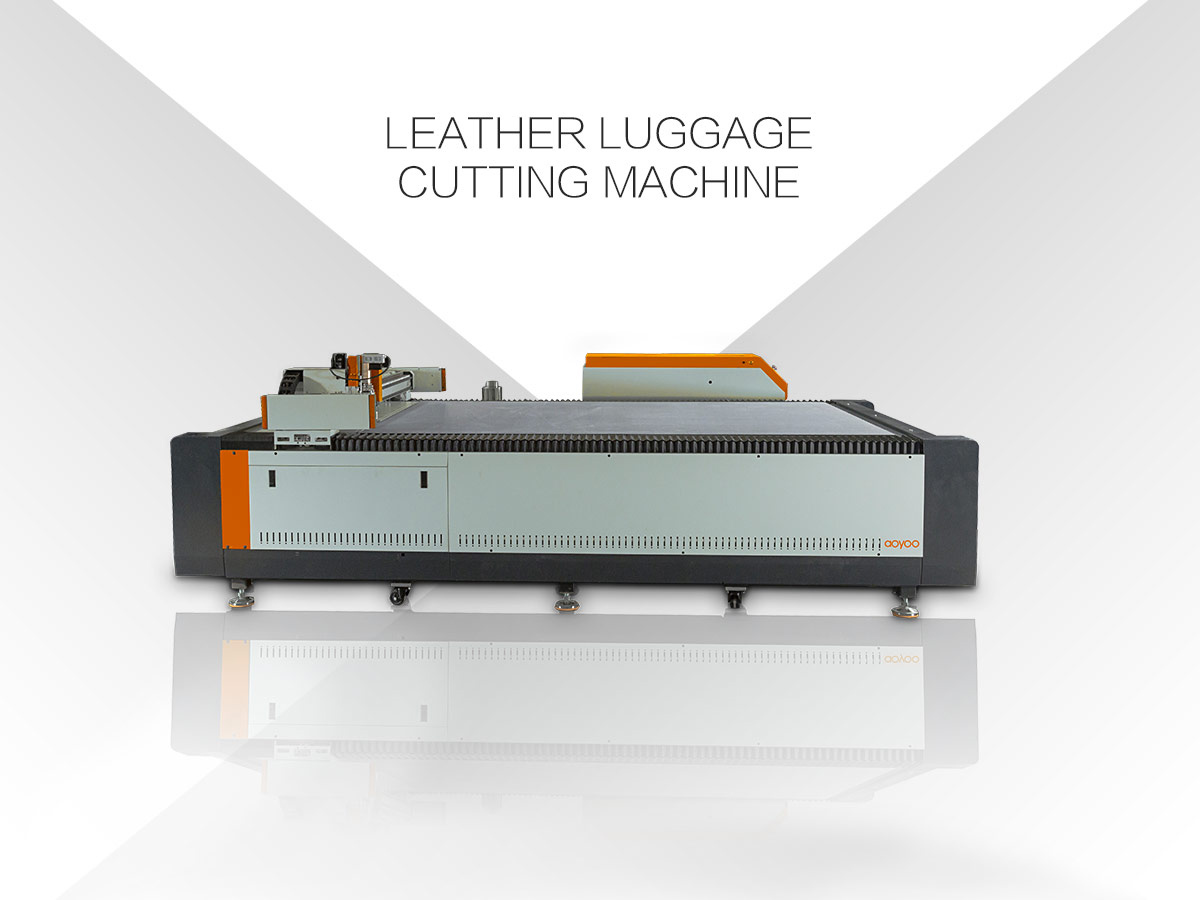

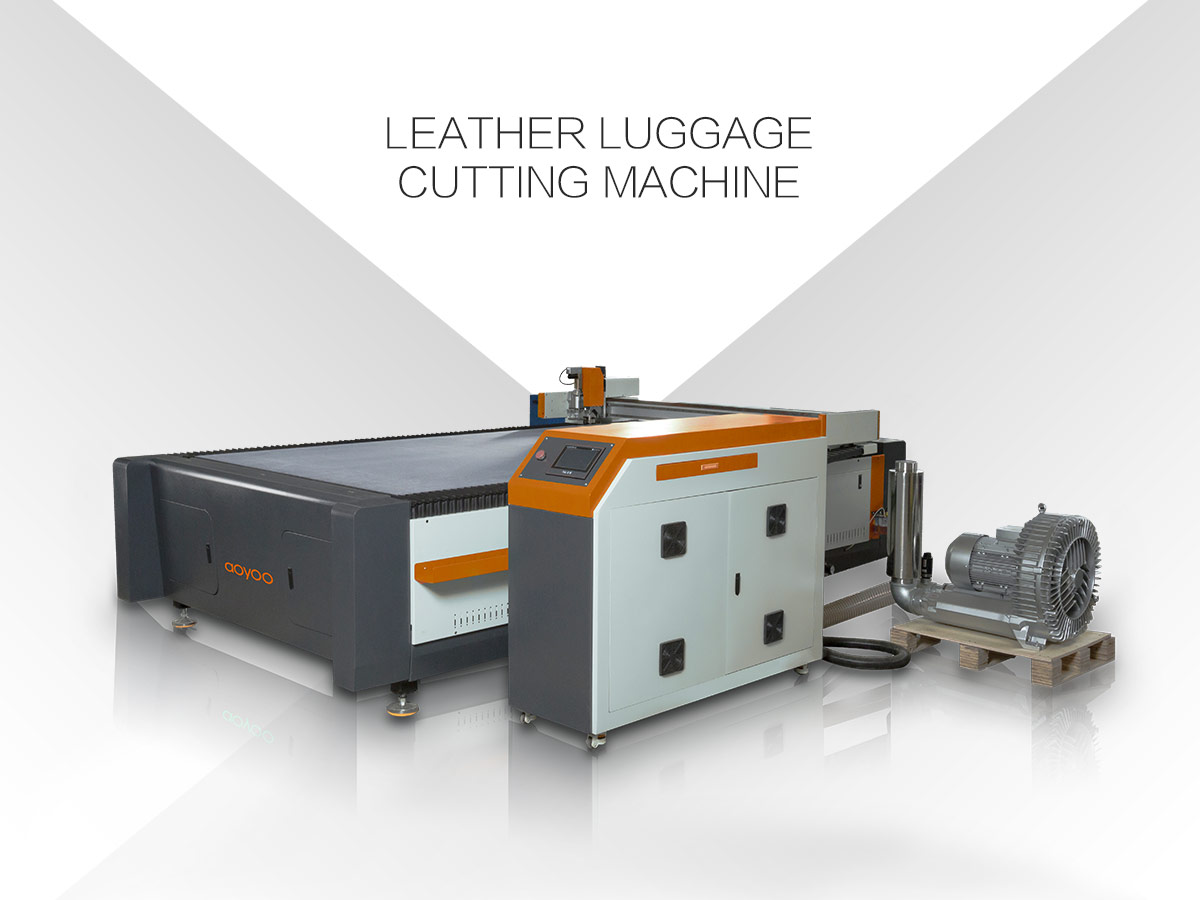

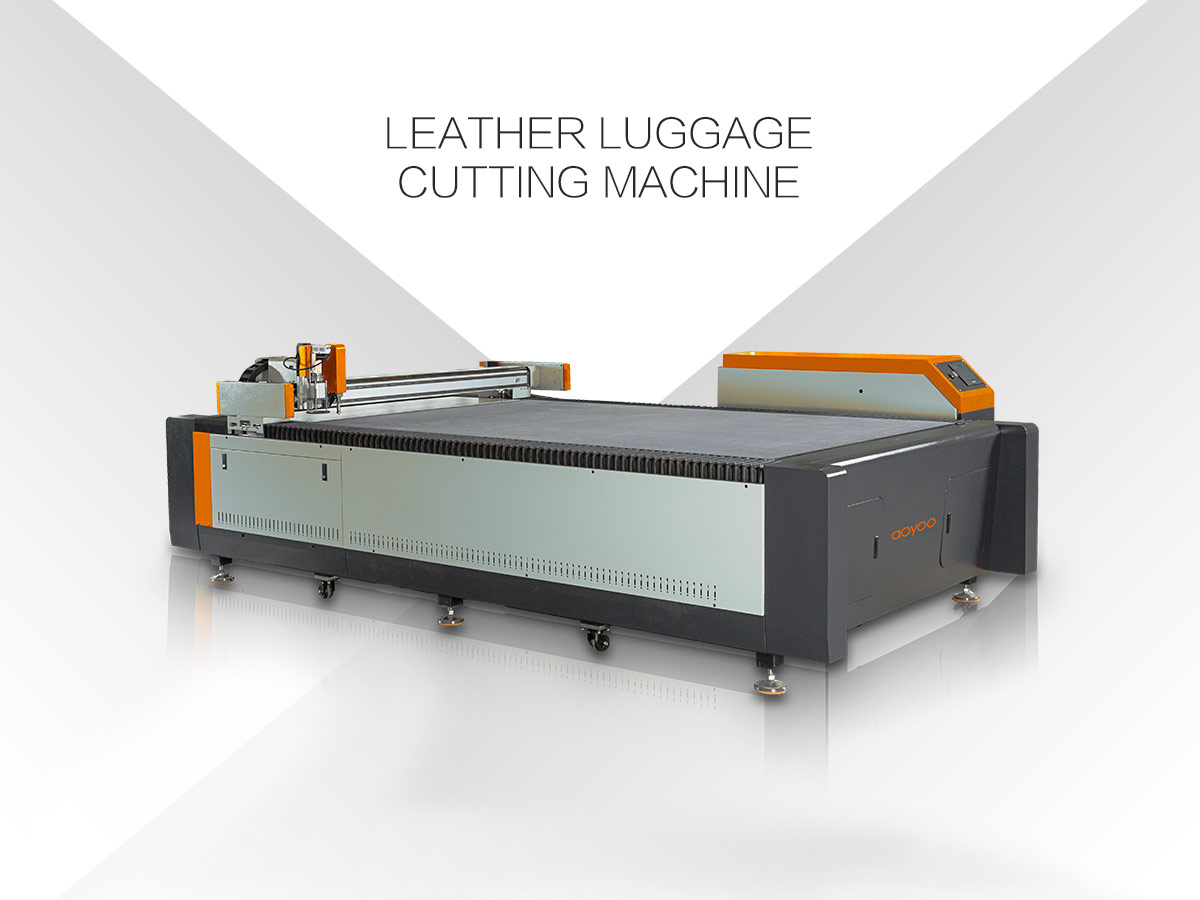

Automatic Leather Knife Cutting Machine

Features Of Automatic Leather Knife Cutting Machine

The automatic leather knife cutting machine is a multi-functional digital cutter that meets a variety of needs. The modularized tool head structure enables convenient tool-switching and provides economical future upgrading. The digital cutter's six axis motor-controlled CNC system performs with high speed and accuracy. The DSP integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction. The Ethernet port, user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment. The LCD touch screen panel makes it easy to learn and operate. Theleather luggage suitcase cutting machineoffers flexible tool module options that meet the requirements of diverse industries.

Contact Now

Share： WhatsApp

+86-531-88965706

aollaser20@aollaser.com

Specification Of It

Technical parameters / model	AOYOO-1625-ZS6	AOYOO-1825-ZS8		AOYOO-2125-ZS10		Accept unconventional model customization
Effective working area	1600x2500mm	1800x2500mm		2100X2500
Multi-head optional	Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized
Multi-function tool	Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Software	Automatic nesting software, template entry software（Optional）
Support file format	AI、PLT、DXF、CDRetc
Overall size	3570x2290x1165mm		3570x2500x1165mm		3570x25800x1165mm

Application And Machine Details

Automatic cutting machine applicable fabrics: cotton, linen, silk, blends, fibers, leather, wool, modal (pay special attention to poor fiber cut).

Automatic Leather Knife Cutting Machine applicable industries: apparel, automotive interiors, home, luggage, footwear, home textiles, outdoor tents and other large-scale production and processing enterprises.

Application

Details

Advantages

Our Service

1.Guarantee for 1 years.

2.We will provide the consumable parts at an agency price.

3.24 hours online service, free technical support.

4.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, please kindly tell me.

5.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

FAQ

1. Are you a trading company or a factory?

We are manufacturers.

2. When can we arrange shipment?

We usually arrange shipment within 15 days after getting deposit,

but customized machines should be more than 25 days.

3. Do you provide equipment operation training after sale?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and

operation training. All of our engineers have passport.

4. Can you customize the machine according to my request?

Yes. We have experienced engineers and technical team, can provide personalized service.

Patent certification

Our Package Advantage:

Packaging Advantages

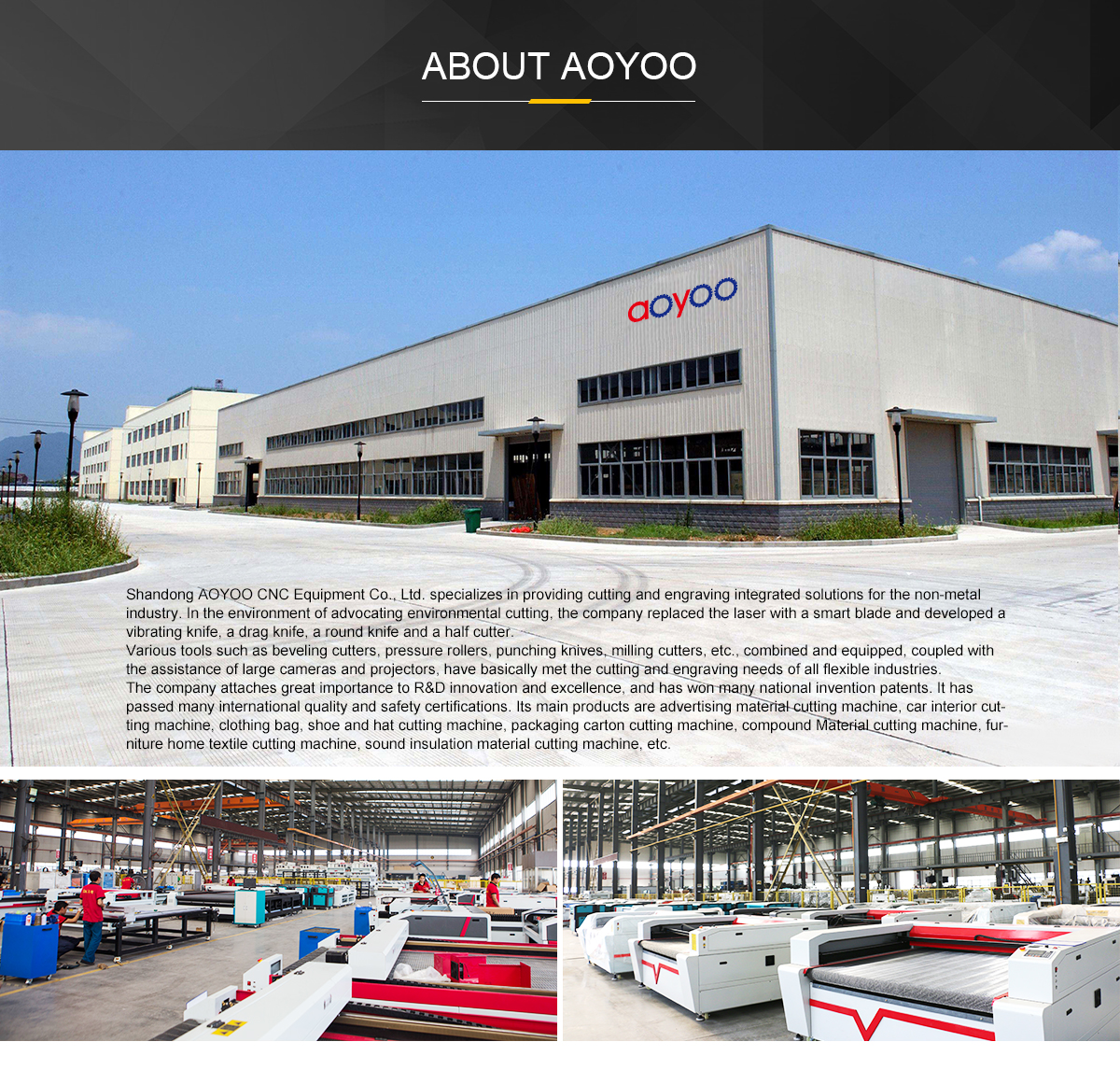

About AOYOO

Shandong AOYOO is one of the professional automatic leather knife cutting machine manufacturers and suppliers in China, welcome to buy our automatic leather knife cutting machine from Jinan and check the price with us.

About AOYOO

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
