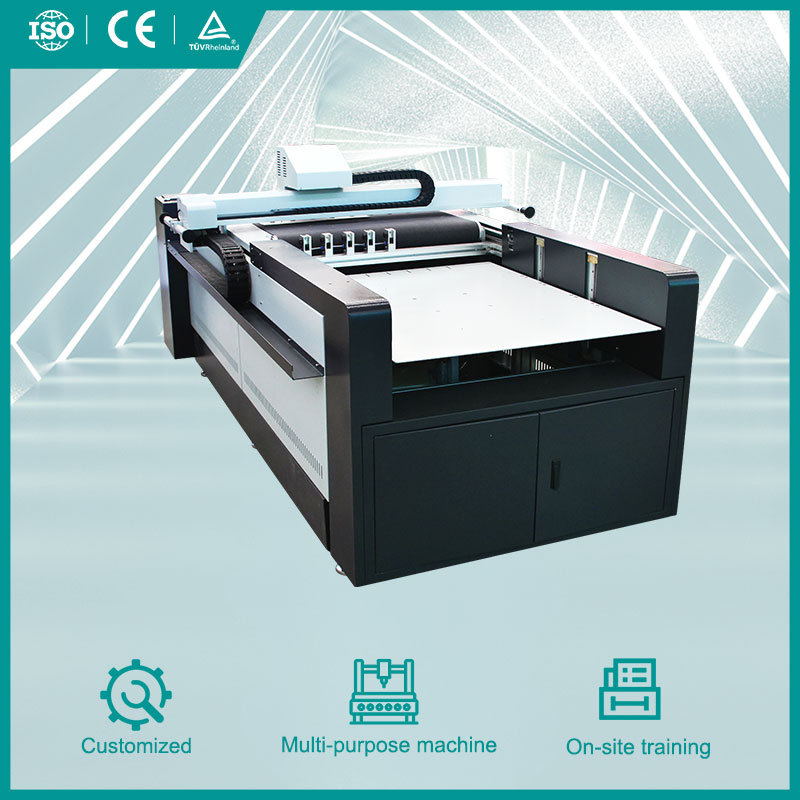

Gift box cutting machine

Advantage of  gift box  cutting machine

1. Multi-format compatible CNC system, direct import to start cutting tasks, non-technical personnel can also operate.

2. Small size, with pulleys on the base, flexibly face the cutting environment.

3. Double safety protection, infrared sensor and anti-collision bar sensor protection. Have a safe working environment.

4. Auxiliary tools can be selected: drag knife, pressing wheel, marking pen, graphic knife, vibration knife and other machines to complete multiple tasks.

5. The high-precision camera helps realize the cutting of pattern materials and irregular materials.

6.This model has won 7 patents technology certifications at home and abroad.

details of Gift box  cutting machine

patent certificate.png

Parameters of   gift box  cutting machine

                Technical parameters                1070
                Effective working area10                1000*700mm
                Multi-function cutting head                The combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut
                Tools                Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
                Overall size                2520*1080*1280mm  L'W'H
                Moving speed                800-1500mm/s
                Repeat precIsion                ±0.05mm
                Interface                Enternet port
                Control panel                LCD touch screen
                Drive system                Imported servo motor, linear guid, synchronous belt, screw
                Cutting material                Paperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on
                Instruction system                HP- GL Compatible format
                Rated power                2. 2KW
                Rated voltage                220V
                Cutting thickness                ≤80mm(According to different material)
                Material fixed way                Vacuum adsorption
                Auto feeding system                Acuum sucker adsorpting sheet


Careful packaging

1. Full film packaging machine (to prevent moisture)

2. Anti-collision edging

3. Wooden box packaging (standard export specifications)

4. A warning sign is posted on the packaging box

packaging of Gift box  cutting machine

AOYOO service

1) Three-year free warranty (except for wearing parts), and free main parts

2) Provide lifetime free technology upgrade service

3) Wearable parts (such as blades, workbench covers) are always available at cost when needed.

4) Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.

5) 24-hour online service, providing free technical support in different languages.

6) On-site technical support can be provided when needed.

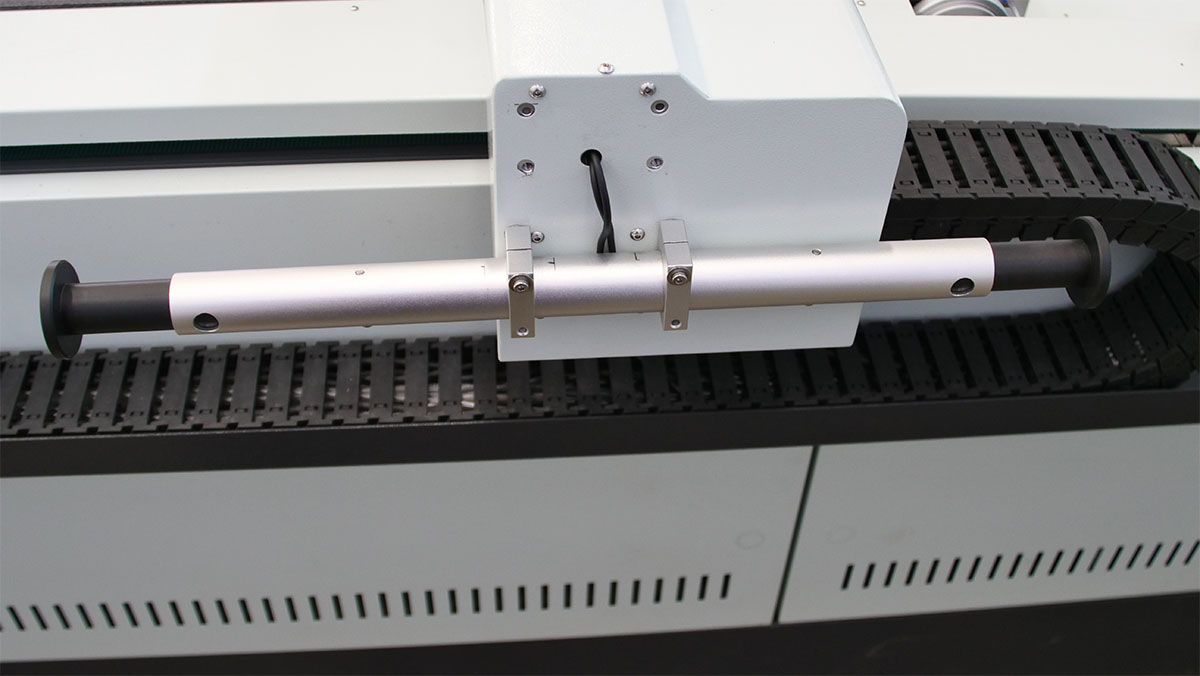

details of Gift box  cutting machine1.png
