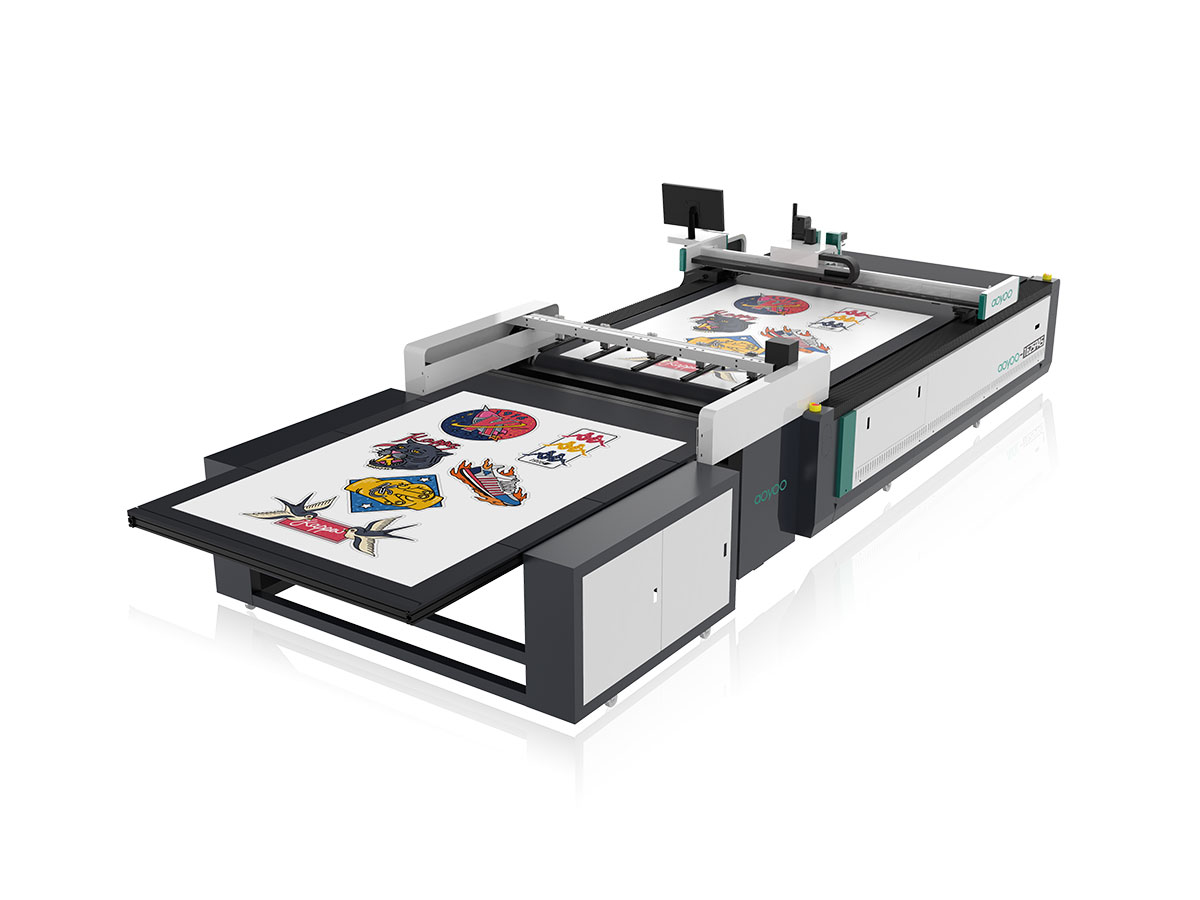

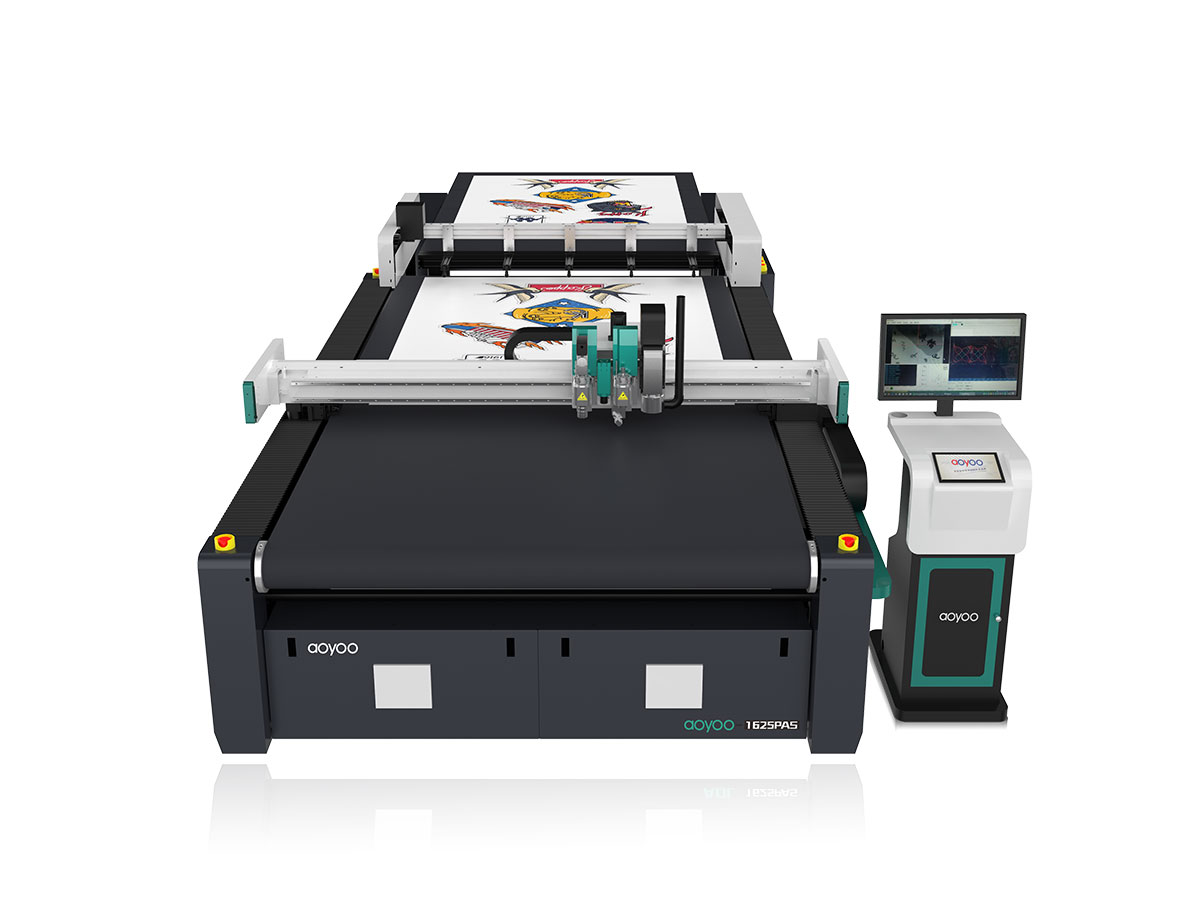

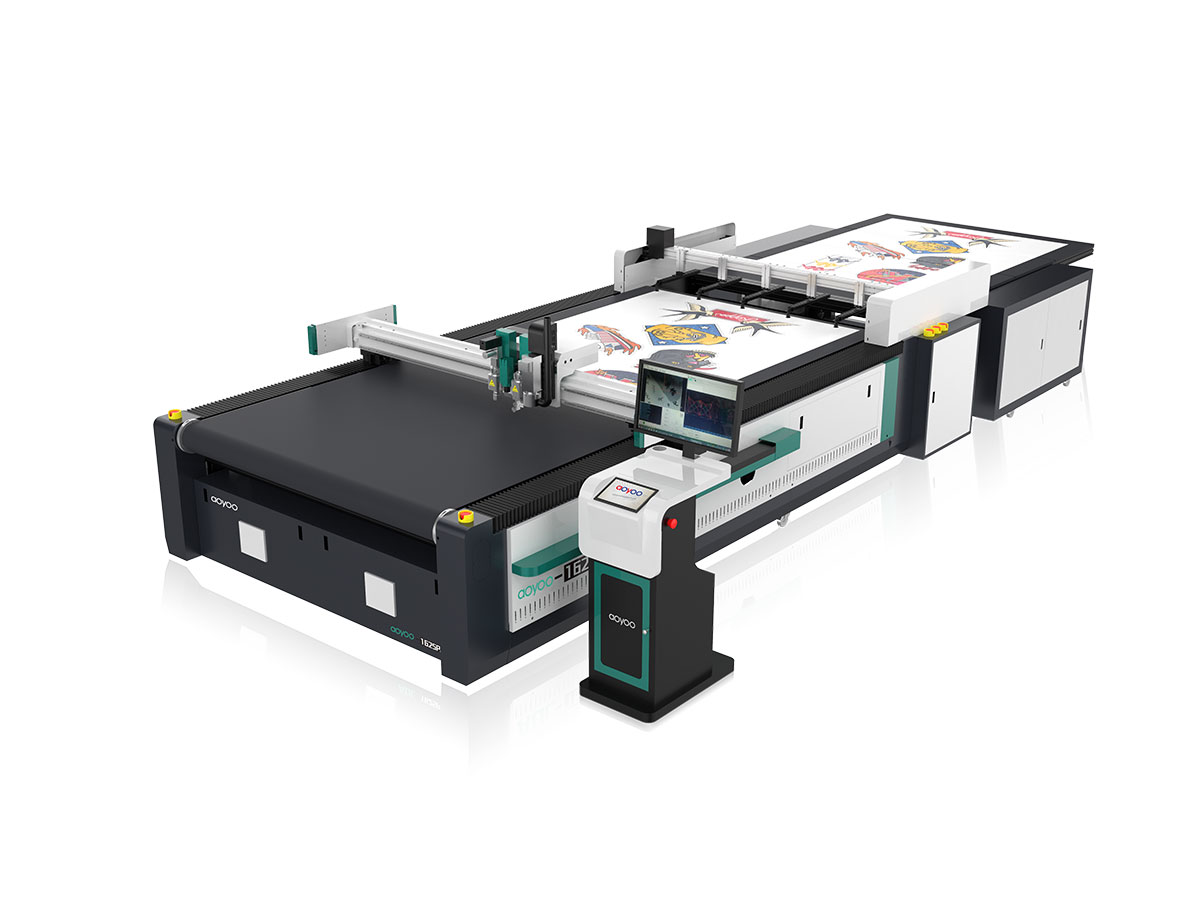

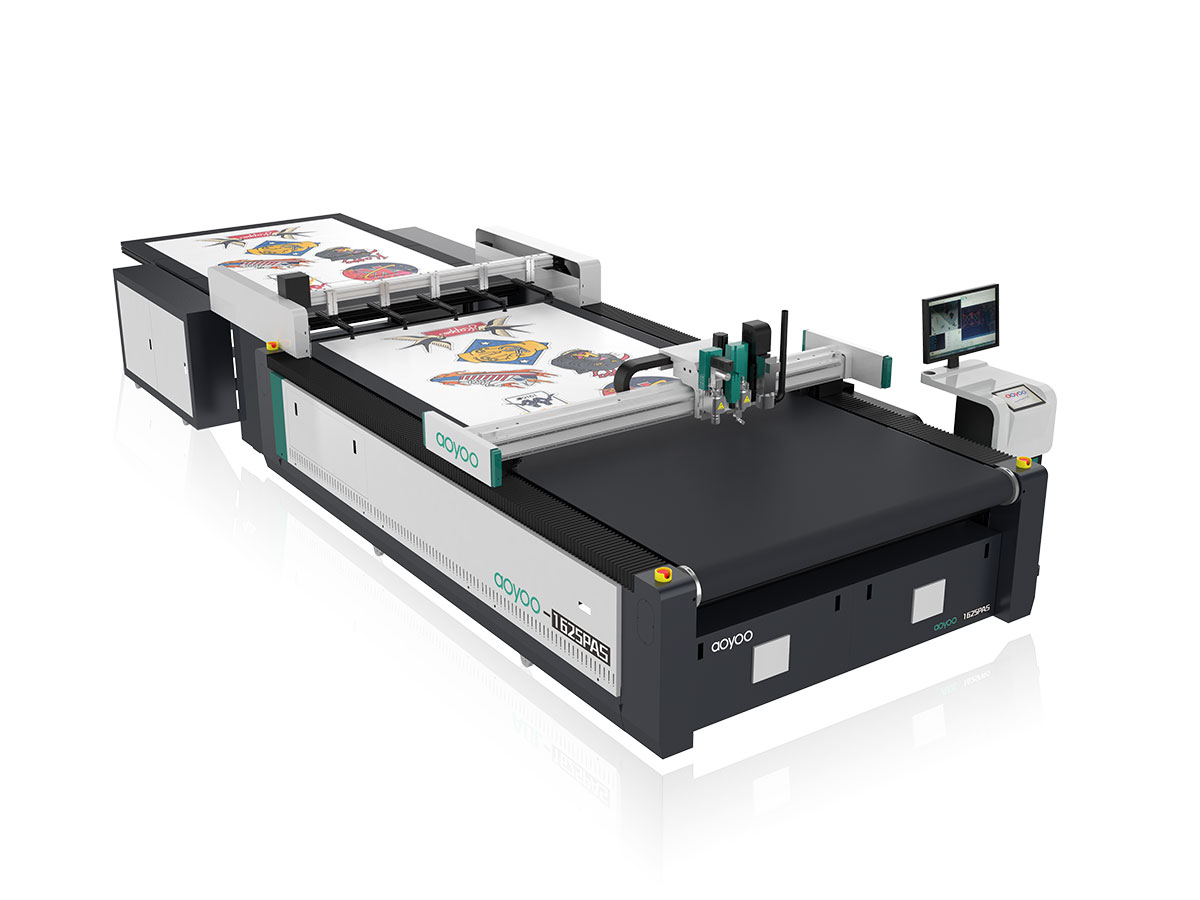

Paper Flatbed Digtial Cutting machine

AOYOO paper flatbed plotter cutter can cut and rout virtually any advertising material, it has a high-precision CCD positioning function, which makes material cutting faster, more stable and more accurate, maximally lowering cutting cost, enhancing cutting efficiency and helping customers maintain high level in competition.AOYOO software and digital cutting machines combine, mainly focuses on post-processing in advertising industry, and provides an intelligent cutting planto form the perfect advertising production systems.


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

AOYOO-2125-ZS10

Accept unconventional model customization

Effective working area

1600x2500mm

1800x2500mm

2100X2500


Multi-head optional

Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized

Multi-function tool

Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Software

Automatic nesting software, template entry software(Optional)

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm

3570x25800x1


advantage of paper Flatbed Digtial Cutting machine

1. High flexibility: The electric swing tool is very suitable for cutting cardboard and corrugated materials. With various blades, it is suitable for cutting materials of different hardness

2. High cutting accuracy: Imported high-precision racks are used to make the cutting of thick and hard packaging materials stronger and ensure higher cutting accuracy

3. Low-cost operation: equipped with tool quick-change module, independent research and development of tool quick-change device, realizing quick replacement of more than ten kinds of tools The cutting knife can be switched freely, which is suitable for various cardboard materials without changing the cardboard box cutting machine.

4. Durable and non-deformed: honeycomb aluminum workbench, vacuum adsorption design, super air, strong suction (partition adsorption, no longer adsorption of small samples) is difficult to cut).




Features of paper flatbed plotter cutter

1) Traceless knife: The design draft in AI and PS is exported to be dxf and it is sent to the controlling software, AOYOO; and then the following process could be implemented automatically without the production of knife model, which save the time and cost of model shaping. Press the “Printing” to finish the cutting and indentation.

2). Multi-functional rapid paper sending production: Aoyoo-6090 only takes 30-60s to handle the label or card paper at the size of 3A paper, and the time is decided by the complexity of the shape.

3). Convenient operation:The AOYOO software system is powerful and easy to operate, which is one of the important features of flexible plastics digital cutter. Just have a video tutorial or manual you can  quickly master the operation of AOYOO.

4). Automatic extraction of cutting paths:No need complicated cutting path design, the cutting path can be automatically generated directly.

Applicable materials of paper flatbed plotter cutter

Kt board, pp paper, car sticker, bonding film, light box paper, sticker, printing cloth, card paper, corrugated paper, honeycomb panel, gray board, foam board, chevron board, acrylic, aluminum composite panel, abs board, mdf, pvc, flag banner, soft film, corrugated box, vinyl, etc.


CUTTING MATERIAL DISPLAY

About AOYOO

AOYOO has built its reputation on the superior turn around time we offer on both our quotations and packaging solution. With in house design capabilities, we can accommodate our customers’ every packaging needs including customised cardboard boxes. “No packaging solution is too hard, some just require a little more thought.” AOYOO can help you create innovative boxes and stands to protect and display your products.

The AOYOO paper flatbed plotter cutter is a CE certified product. We offer an English LCD menu. We welcome custom orders.

cutting Machine Packaging And Logistics

FAQ

About packaging

The machine body is wrapped with film first, then packed into a wooden box, and placed in a foam damping protection machine

Finally, put it into a wooden box and provide a fumigation-free plywood box.

Stick warning signs around the wooden box

About machine operation

We have professional after-sales personnel to provide operation videos, user manuals, if you have any questions, we can ask

About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service and professional machine maintenance and maintenance.

The updated maintenance of machine parts is sold to customers at the lowest price


About shipment fees

The distance between you and the seaport determines your freight cost. As long as you pay the relevant fees, we will provide door-to-door service. For the transportation cost, you can consult our suggestions or consult the freight forwarder for specific costs.


About after sale

In addition to our own experienced engineers, we also provide local after-sales service with the help of agents. All these will make it convenient for you. You can easily find professional help in the sales network in 42 countries and regions. Professionals provide vocational training.

 Aoyoo welcome your inquiry!

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
