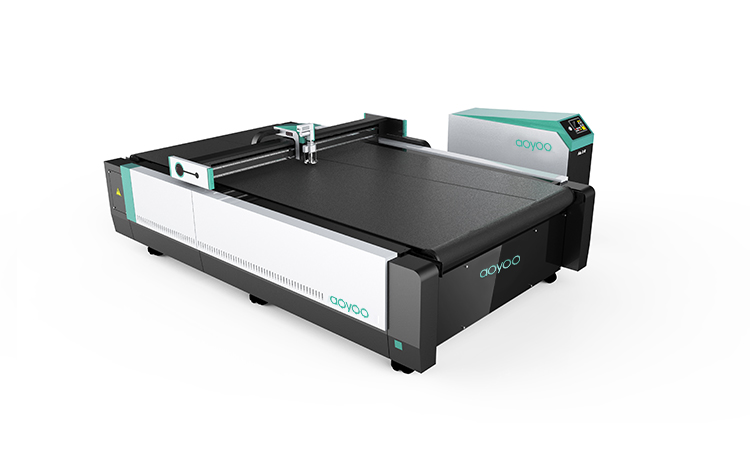

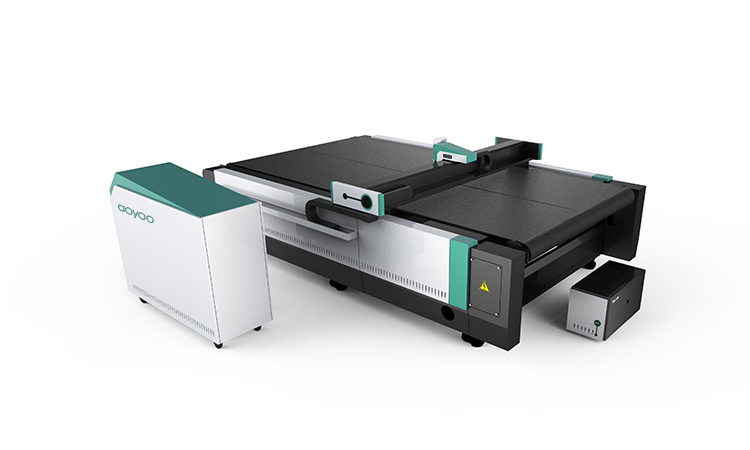

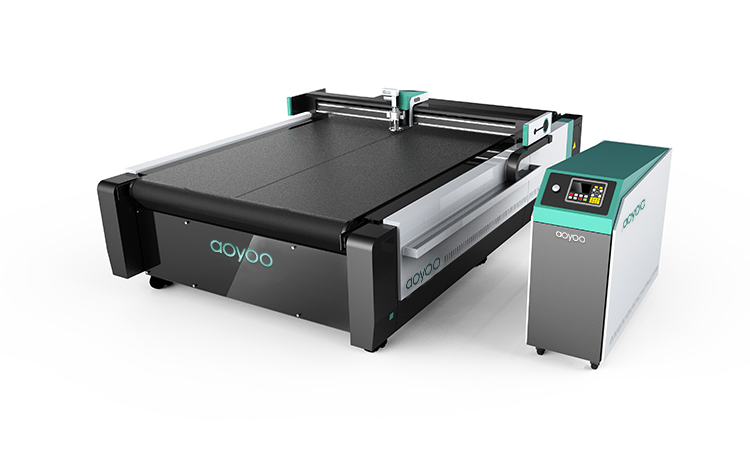

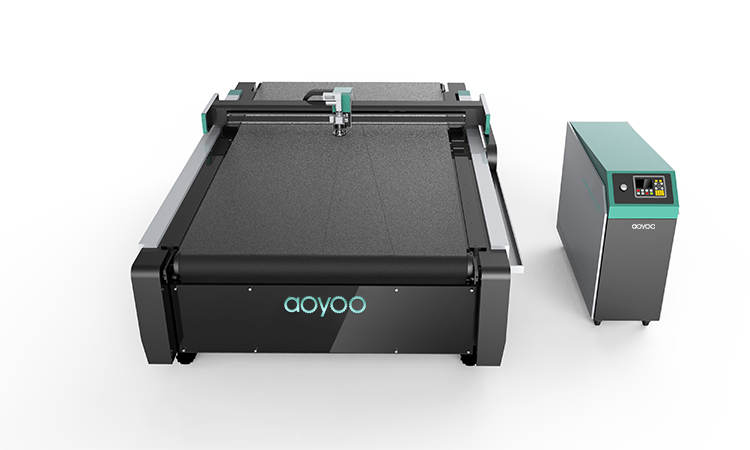

Digital composite material cutter

Composite material cutter are now widely used. There are many different materials of composite materials, and the hardness is also different. AOYOO composite material cutter have professional cutting blades of different hardness. AOYOO maintains an environmentally friendly attitude to achieve material Perfect cut.


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

The X\Y axis is divided into two kinds of rack or belt

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、PDF、 PCE、XML

Overall size

3600x2400x1200mm

3600x2600x1200mm


Feature of composite material cutter

1.High technology enterprise in China AAA Credit Enterprise, AAA heavy contract and keep promise Enterprise

2. Acquired ISO9001 Quality System Certification and Production Qualification for all serials products

3.All serials Electrics choose high-quality brands

Advantage of composite material cutter

1. Exclusively equipped with anti-static system to protect the cutting environment safety

2. Choose Taiwan linear guide drive system, the accuracy error is kept in the range of ±0.1mm

3. The composite material cutter has obtained six patented technology certifications at home and abroad

4. With a key to import cutting software and nesting software, realize the optimal path of cutting and simple and easy operation to start cutting

5. Multi-type blades: equipped with different types of blades for cutting with different hardness and materials to ensure better cutting results.

Composite material cutter application materials

Non-metallic substrates mainly include synthetic resin, rubber, ceramics, graphite, carbon and so on. Reinforcing materials mainly include glass fiber, carbon fiber, boron fiber, aramid fiber, silicon carbide fiber, asbestos fiber, whisker, and metal. If there is no material you want, please leave a message and the professional will answer it for you.

patent certificate of details of composite material cutter

Packaging of composite material cutter

1. Outer packing: standard seaborne export plywood box.

2. Inner packaging: The purpose of stretchable film and plastic film is to prevent moisture.

If you have special requirements, we can pack them according to your requirements.

Price of composite material cutter

1. We need to know your shipping port information and optional shipping methods to give you the most suitable shipping price

2. We will provide you with the most suitable material cutting price plan according to your needs and the auxiliary tools you need.

If you are satisfied with our composite material cutter, you are welcome to consult the price! Please click to leave a message.

About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service, and provide professional machine maintenance and maintenance

The updated maintenance of machine parts is sold to customers at the lowest price.

We provide you with free lifetime software upgrades and technical support.

Product advantages

AOYOO is an industry-leading brand with 14 years of experience in the industry. We have served more than 2,000 customers worldwide, and have received satisfactory evaluations from them. We have provided many customers with personalized industry material cutting Solution, if you encounter the problem of material cutter in the industry, we can provide you with free consultation and suggestion services!

our customer

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
