Automatic fabric duct cutting machine

Features of CNC Textile Duct Cutting Machine

1. Use a blade to cut, no heat source, environmental protection and no pollution.

2. Electronic cutting process, without manual typesetting.

3. The CNC system cuts to keep the cutting quality consistent.

4. Multi-format files are compatible, read directly with one key, and cut immediately.

5. No mold is required, and small batch orders are acceptable.

Textile Duct cutting process


Application materials


Textile duct, also called textile duct, is a very common duct material. The duct made of impermeable fabric or insulated duct can transport air to the destination without spreading.


The textile duct cutting machine must have a professional level in the cutting of ducts. The materials of the duct include textile materials, carbon fiber materials, aluminum foil materials, glass wool and other materials. The textile duct cutting machine can complete high-quality cutting.

In addition to air duct materials, AOYOO CNC cutting machines can cut materials with high quality in the advertising packaging industry, composite material industry, carpet industry, leather industry, clothing textile industry and other flexible material industries.


AOYOO CNC Cutting Machine Advantages

1. AOYOO self-developed cutting system, simple and easy to operate, low technical requirements, easy to recruit

2. The textile duct cutting machine adopts high-quality linear guide rails with an accuracy error of ±0.1mm.

3. Japan's Panasonic servo system provides power, stable and continuous power supply.

4. AOYOO CNC cutting machine is equipped with a variety of knives, which are used to cut materials in different industries and increase the added value of the enterprise.

5. AOYOO textile duct cutting machine is a fully automatic equipment, automatic feeding and receiving, saving labor costs.

6. The system intelligently optimizes typesetting and cutting, provides a better cutting and filling path, and saves more than 30% of materials.


To learn more about the performance and catalog of CNC cutting machines, click to leave a message, and professionals will contact you

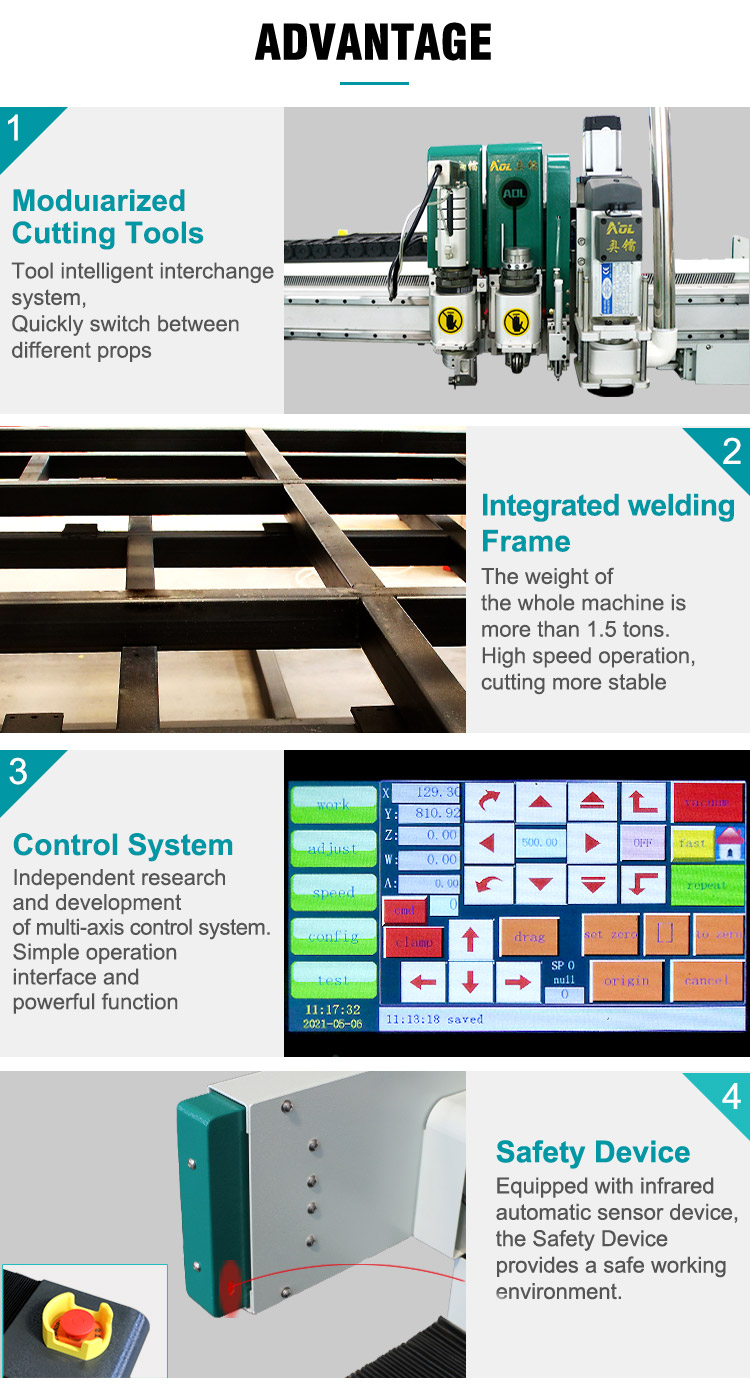

advantage of textile duct cutting machine

Parameter of  Textile Duct cutting machine

Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Applicable materials

Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm


AOYOO service

1) Three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.

2) Provide lifetime free technology upgrade service

3) Wearable parts (such as blades, workbench covers) are always available at cost when needed.

4) Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.

5) 24-hour online service, providing free technical support in different languages.

6) On-site technical support can be provided when needed.


AOL service

About  AOYOO

    AOYOO CNC Equipment Co., Ltd. is a high-tech enterprise specializing in the development, manufacturing, sales and after-sales service of flexible material cutting and laser cutting machines. It mainly includes CNC intelligent blade cutting machines, internal engraving machines and other types of cutting machines. It can meet the cutting processing of acrylic internal carving and flexible materials of different materials, and is widely used in advertising packaging, composite materials, carpet industry, clothing textile, automobile interior decoration, and leather industry.

     AOYOO CNC Equipment Co., Ltd. is a high-tech industry in China and an AAA-level credit enterprise. The product quality has undergone multiple tests and the after-sales system is complete. It has provided reliable CNC cutting machines for more than 8,000 users worldwide, and has provided many users with Professional industry cutting assembly line solutions.
