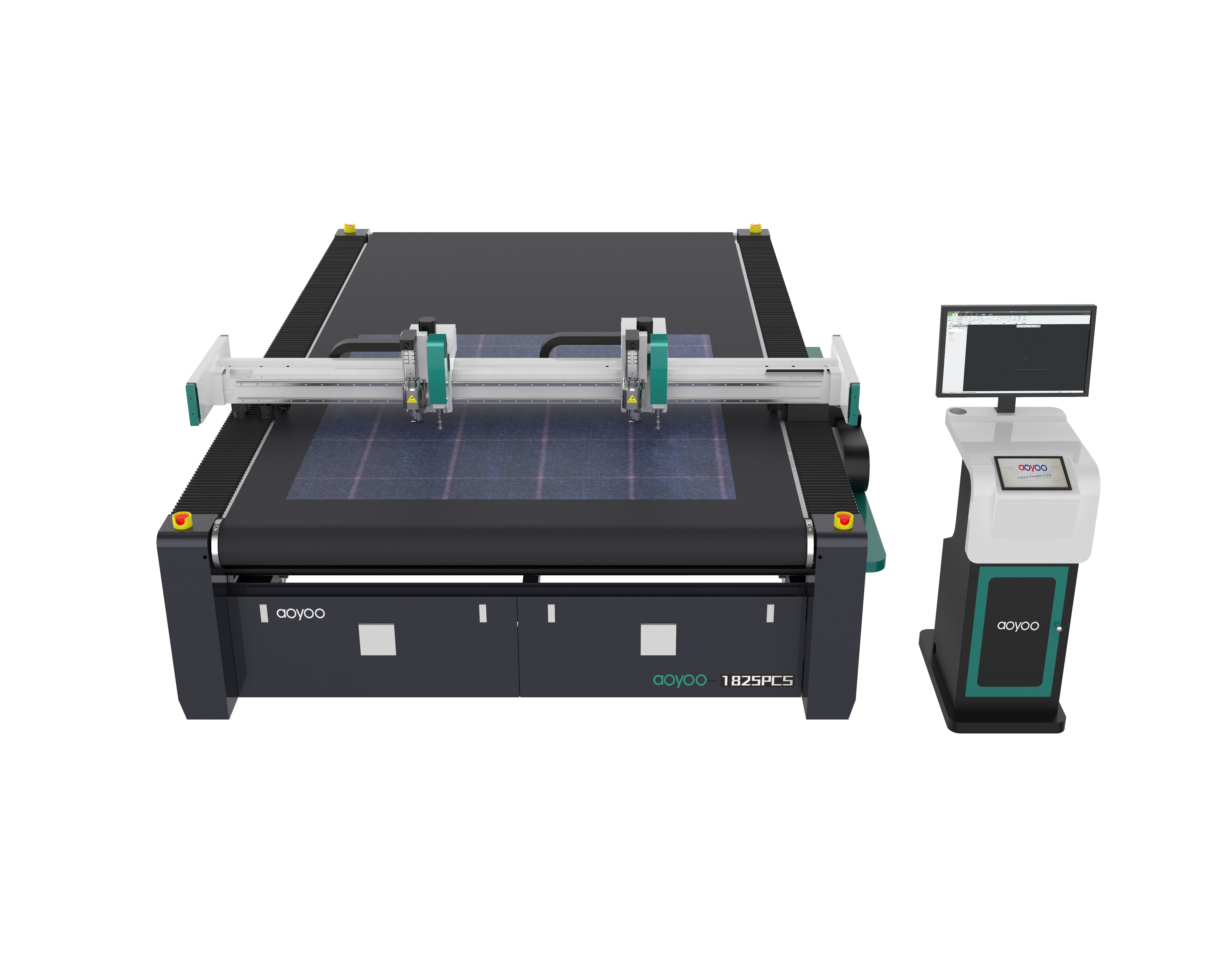

Automatic EVA foam cutting machine with CNC knife

AOYOO is a professional manufacturer of automatic EVA foam cutting machine, providing high-quality precision cutting with a cutting error of less than 1mm. And to meet the cutting of a variety of irregular patterns, the utomatic eva foam cutting machine is equipped with intelligent optimized typesetting to save more than 10% of material costs, simplify the operation process, increase the professional team to provide assembly line solutions, and realize rapid capital recovery.

Parameter of automatic EVA foam cutting machine

Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

Effective working area

1600x2500mm

1800x2500mm

Multi-function tool

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Applicable materials

Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

The X\Y axis is divided into two kinds of rack or belt

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Support file format

AI、PLT、DXF、PDF、 PCE、XML

Overall size

3600x2400x1200mm

3600x2600x1200mm



Feature of automatic EVA foam cutting machine

1.Environmental protection, cutting without pollution.Suitable for continuous work with long hours.

Intelligently optimized typesetting system, saving material cost by more than 10%.

3. The whole machine is fully automatic and intelligent cutting, saving 30% of labor costs.

4.automatic eva foam cutting machine  has won 6 patented technology certifications at home and abroad.

Advantage of automatic EVa foam cutting machine

1. No need to open grinding tools,import the data directly then cut.

2.Equipped with a variety of tools such as oscillating knife,pneumatic oscillating knife, V-cut , and marking pen,to achieve multiple functions in one machine.

3.The infrared automatic induction safety device to prevent unsafe factors.

4.Optional automatic feeding device, the plate and roll can be both automatically cut.

5.Vacuum adsorption function, strong suction force, the adsorption is no longer difficult for small sample.


Sales area distribution of of automatic EVA foam cutting machine

So far, more than forty countries have covered our partners, and our agents can provide you with the fastest door-to-door service. If you want to know the details of your area, please leave a message or email us, we Will respond to you as quickly as possible, colleagues, we welcome strong agents from other regions to come to consult, and look forward to cooperating with you!

delivery time of automatic EVA foam cutting machine

We have our own factory.

 After you place an order, we will start to produce the CNC cutting machine you need. At the same time, we will make a reasonable delay according to the order volume of the current month. Our delivery time is about 15-20 days on average. The CNC cutting machine can also be produced according to the delivery time you need. Please leave a message for specific information.

packaging of automatic EVA foam cutting machine

1. Outer packaging: standard seaborne export plywood box.

2. Inner packaging: stretchable film and plastic film to prevent moisture.

If you have special requirements, we can negotiate friendly.

About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service, and provide professional machine maintenance and maintenance

The updated maintenance of machine parts is sold to customers at the lowest price.

Machine Packaging And Logistics.jpg

AOYOO is an industry-leading brand with 14 years of experience in the industry. We have served more than 8,000 customers around the world and received satisfactory evaluations. We have many customers who have been long-term and stable cooperation. We provide many customers with In order to provide a personalized industry material cutting solution, if you encounter problems with industry material cutting, we can provide you with free consultation and advice services!

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
