Automatic digital PVC cutting machine | AOYOO

AOYOO is one of the manufacturers specializing in manufacturing automatic digital PVC cutting machine, using smart blade cutting instead of physical cutting. It is environmentally friendly and adopts automatic intelligent cutting, which saves more than 3 times the labor cost. The automatic digital PVC cutting machine is especially suitable for small batches of customized cutting.


Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

AOYOO-2125-ZS10

Accept unconventional model customization

Effective working area

1600x2500mm

1800x2500mm

2100X2500


Multi-head optional

Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized

Multi-function tool

Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Software

Automatic nesting software, template entry software(Optional)

Support file format

AI、PLT、DXF、CDRetc

Overall size

3570x2290x1165mm

3570x2500x1165mm

3570x25800x1


Application of Automatic digital PVC cutting machine

It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.


Feature of automatic digital PVC cutting machine

1. The cutting efficiency of automatic digital PVC cutting machine is more than three times that of manual cutting. Automatic cutting is adopted, which saves labor and costs.

2. Use high-quality linear guides to realize high-precision and fast cutting.

3. A variety of cutters can be selected to realize the cutting of different soft and hard materials

4. Use smart blade cutting instead of laser cutting, no pollution, and provide a safe operating environment.

Advantage of

1. Simplified operation, compatible with multi-format files, import files with one key, and start cutting immediately

2. The system has an industrial vision system to achieve precise cutting of irregular materials.

3. With CCD camera and fixed point marking function, realize cutting preview

4. Unique multi-zone adsorption function, realizing strong adsorption of different positions without area.

5. The high-quality Japanese Panasonic servo motor is selected, and the production efficiency is increased by more than 4 times.

Advertising Industry Cutting Machine Cutting Samples.jpg

Intelligent Blade Cutting Machine Advantages.jpg

Reasons to choose  AOYOO

1. Professional manufacturing: AOYOO has been engaged in the CNC cutting machine industry for 14 years, researching and manufacturing CNC cutting machines for 10 years,

2. Quality assurance: CNC cutting machine series products have passed European CE certification and American FDA certification.

3. High-quality accessories: The accessories of the CNC cutting machine are selected from leading brands in the industry.

4. Professional after-sales service: try one-to-one service for users to improve user feedback efficiency.

5.This model has won 7 patents technology certifications at home and abroad

packaging of automatic digital PVC cutting machine

1. Outer packaging: standard seaborne export plywood box.

2. Inner packaging: stretchable film and plastic film to prevent moisture.

3. Post warning signs around the wooden box

If you have special requirements, we can negotiate friendly.

Machine Packaging And Logistics.jpg

About the warranty policy

Our standard warranty period is calculated from the completion of the delivery. We provide you with a three-year warranty service and professional machine maintenance.

1. Lifetime free software system upgrade.

2. Wearable parts (such as blades, workbench covers) are always available at cost when needed.

3. Conduct free operation training in our factory. If there is not enough time, we will send detailed training videos.

4. 24-hour online service, providing free technical support in different languages.

5. We have agents in many countries and can provide on-site technical support when needed.

AOYOO is a professional manufacturer of CNC cutting machines in China and a leading brand with 14 years of experience in the industry. We have served more than 8,000 customers worldwide and received satisfactory evaluations, and there are many long-term and stable cooperation Customers, we provide a lot of customers with personalized industry material cutting solutions. If you encounter problems with industry material cutting, we can provide you with free consultation and advice services.

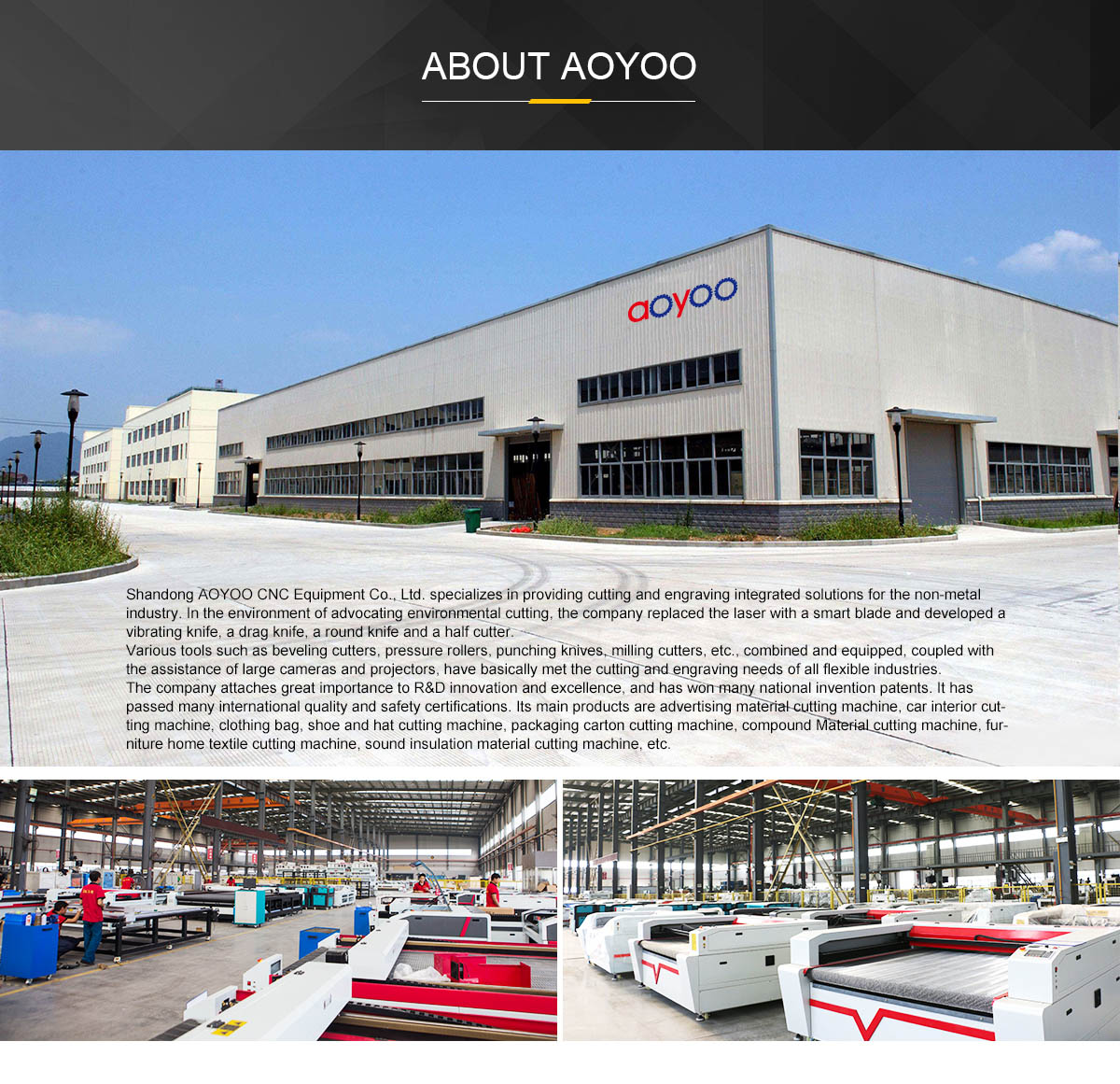

About AOYOO.jpg


AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
