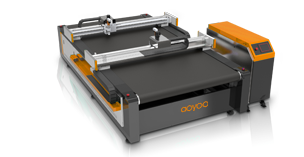

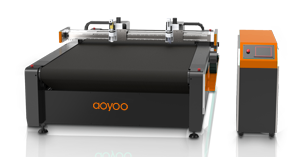

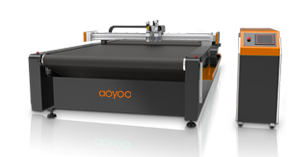

Auto cutter Plotter With Oscillating Knife

Auto cutter  Plotter With Oscillating Knife can improve its production capacity and reliability. This accuracy makes AOYOO an important partner of manufacturers and manufacturers in the advertising industry. AOYOO digital cutting machine eliminates the need for the diversity of molds and auxiliary machines. One machine can meet the advertising industry. The functions of cutting, marking and scribing, projection and positioning reduce the cost of the machine, and the automated technology reduces the need for manpower, processing the cutting materials with the highest quality, and has excellent cutting performance.



Parameter of Auto cutter  Plotter With Oscillating Knife

Technical parameters / model

AOYOO-1625-ZS6

AOYOO-1825-ZS8

AOYOO-2125-ZS10

Accept unconventional model customization

Effective working area

1600x2500mm

1800x2500mm

2100X2500


Multi-head optional

Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized

Multi-function tool

Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife

safety devices

Safety devices use infrared sensing, safe and reliable

Cutting speed

200-2000mm/s

Cutting thickness

≤50mm Other thicknesses can be customized according to the material

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Yaskawa servo motor, linear linear guide, timing belt, lead screw

rated power

11kw

Rated voltage

380V±10%/220V±10% Optional

Control System

Chinese and English LCD touch screen

Operating environment

Operating environment Temperature 0-40°C Humidity 20%-80%RH

Software

Automatic nesting software, template entry software(Optional)

Support file format

AI、PLT、DXF、CDR ETC

Overall size

3570x2290x1165mm

3570x2500x1165mm

3570x25800x1165mm


Advantage of Auto cutter  Plotter With Oscillating Knife

1. High flexibility: the CNC cutting machine is suitable for cutting different foam materials, and the pneumatic knife of the CNC cutting machine is more suitable for cutting foam materials and foam materials. Equipped with a tool quick change module, which can change the blades used for cutting different materials and auxiliary tools (CCD camera, projector, marker pen, pressing wheel), and can accommodate up to three sets of tools to work at the same time, improving work efficiency.

2. High cutting precision: Imported high-precision grinding wheel holder is adopted, which is durable, high-precision, stable and low error, even the error can reach 0.1mm. Cutting speed can reach 150mm/s

3. Multi-national quality certification, according to different voltage standards of different countries, the machine is equipped with transformers, according to the cutting needs of different industries, some machines are equipped with superchargers.

4. Durable and non-deformation: honeycomb aluminum workbench, vacuum adsorption design, adopts partitioned adsorption area, strong suction, and small sample adsorption capacity.

Advertising Industry Cutting Machine Cutting Samples.jpg



Sales area distribution Advantage of Auto cutter  Plotter With Oscillating Knife

So far, more than 40 countries/regions have cooperated with our partners, and our agents can provide you with the fastest door-to-door service. If you want to know the detailed information of your area, please leave us a message or email, we will reply you as soon as possible, colleague, we welcome powerful agents from other regions to consult and look forward to cooperating with you!

About AOYOO.jpg


About packaging Auto cutter  Plotter With Oscillating Knife

1. Our wooden boxes are fumigated. No wood inspection is required, saving transportation time.

2. All parts of the machine are wrapped in soft materials, mainly using pearl cotton. Avoid all damage that may occur during delivery. Then, we wrapped the plastic bag tightly to ensure that the covered soft material was intact, and also to avoid water and rust.

3. The most important thing is the wooden box for the fixed template.

4. There is a strong iron jack at the bottom of the wooden box for easy handling and transportation

5 Warning signs are posted around the wooden box



AOYOO's main products include smart blade cutting machines, vibrating knife cutting machines and laser fiber cutting machines. Our smart blade cutting machine faces different markets. We have different blades for cutting materials in different markets. Our blades are suitable for different materials with different softness and hardness. Welcome to consult!


AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
