AOYOO PDLC film cutting machine

what's PDLC film

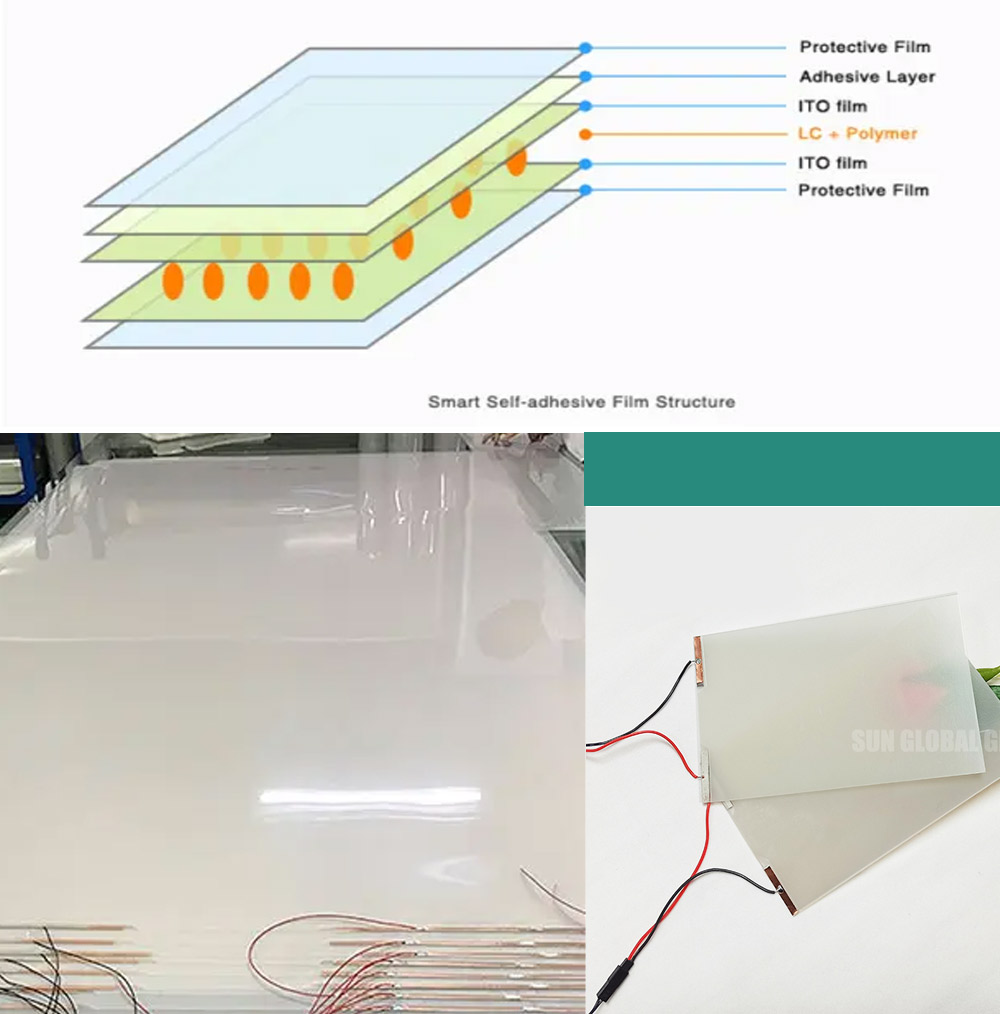

PDLC film is also known as Polymer Dispersed Liquid Crystal, PDLC is also known as polymer dispersed liquid crystal in Chinese, also known as pdlc glass, electronically controlled dimming film, electronic curtains, etc. It is a very new membrane technology product, which controls the molecular ordering of the pdlc film medium through the action of an electric field to adjust the opacity state of the film to achieve the effect of privacy.


Application of PDLC film

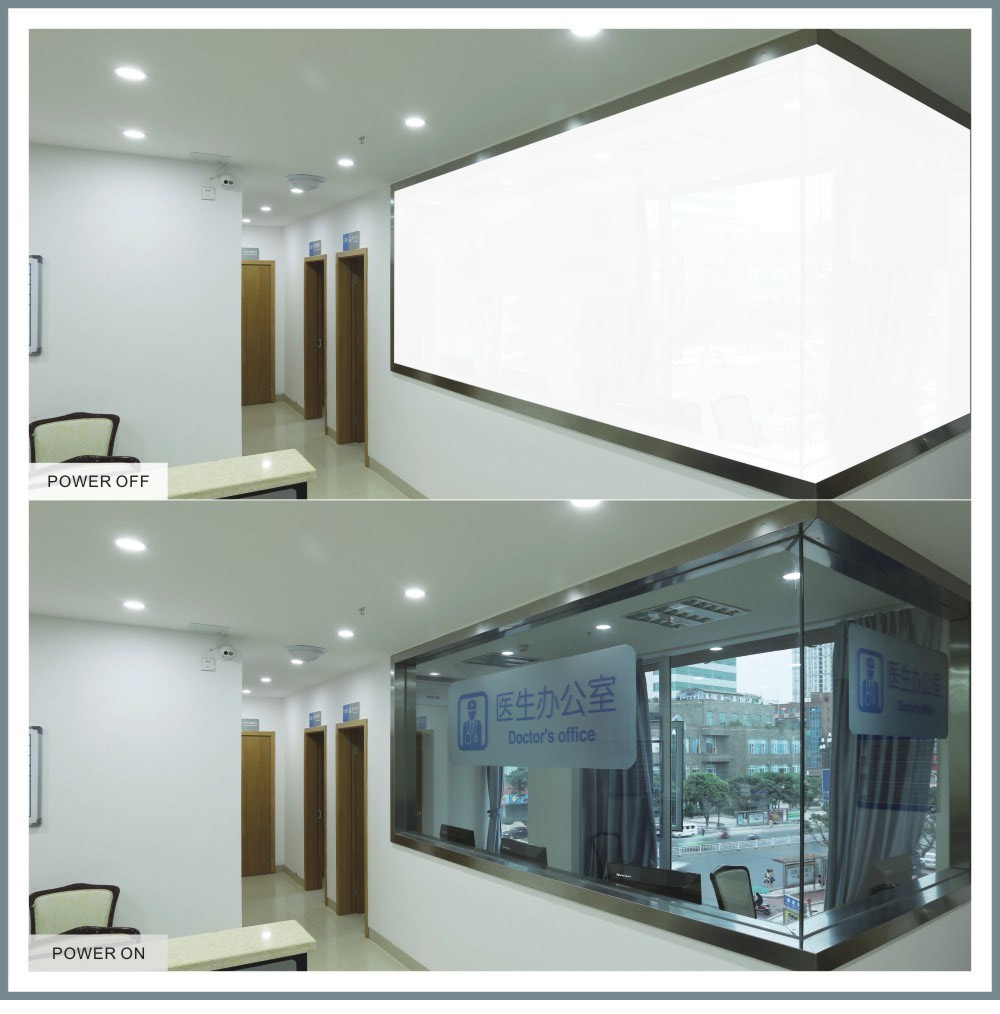

Office scene

As a new material trend, PDLC film materials are being accepted by the majority of users. Most of the current PDLC film materials are used in office spaces for privacy in meetings, privacy in daily office, and opacity of matte texture. It will improve the texture of the entire office decoration, which is both practical and beautiful.

pdlc film cutting machine


AOYOO PDLC film cutting machine can solve most of the problems encountered when cutting film, and there will be no cost loss to the material. The quality of the cutting is satisfied by many users, and high-quality orders can be completed in a short time.

aoyoopdlc film cutting machine

Advantage of PDLC film cutting machine

1. The hard tungsten steel blade ensures the penetration cutting of PDLC film material, and the cutting is completed at one time.

2. The cutting edge is neat and smooth, without burrs.

3. Infrared and emergency stop button double safety guarantee to maximize the safety of operators

4. The multi-format files included in the AOL cutting system are compatible without format conversion.

5. Taiwan's high-precision linear guides maintain stable and high-precision cutting, maintaining ±0.1mm

advantage of pdlc film cutting machine

Technical parametersAOYOO-6040
Effective working area600*400mm

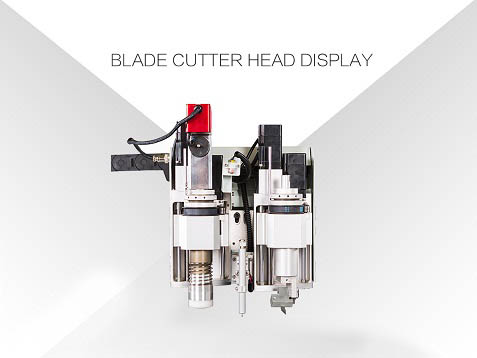

Multi-function cutting headThe combination of Multi-function cutting head and holders, be with full cut, kisscut, creasing wheel,v-cut and laser red light positioning functions, CCD positioning, Camera extract large contour to cut
ToolsOscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
Overall size2420*970*1280mm  L'W'H
Moving speed800-1500mm/s
Repeat precIsion±0.05mm
InterfaceEnternet port
Control panelLCD touch screen
Drive systemImported servo motor, linear guid, synchronous belt, screw
Cutting materialPaperboard, grey board, KT board, pvc foam board, honeycomb board, car sticker, lamp piece, PP Adhesive material, printing cloth, banner cloth, all kinds of corrugated board, EPE foam, EVA, PVC board, acrylic board, thick foam and so on
Instruction systemHP- GL Compatible format
Rated power2. 2KW
Rated voltage220V
Cutting thickness≤50mm(According to different material)
Material fixed wayVacuum adsorption
Auto feeding systemAcuum sucker adsorpting sheet


AOL service

1. Each machine has a three-year warranty service.

2. Consumable materials AOYOO can always be provided at cost price.

3. After the machine arrives, there will be free operation training and function explanation training video

4. Provide lifetime free technology upgrade service

5. Perfect after-sales service, solve problems quickly


Features of AOL PDLC film cutting machine

1. High-precision transmission guide rail, stable and maintain a high precision of ±0.1mm

2. After-sales one-to-one service to accelerate the efficiency of corporate problem feedback

3. Not limited to providing CNC cutting machines, industry material solutions



AOYOO's main products include smart blade cutting machines, vibrating knife cutting machines and laser cutting machines. The computer-controlled cutting machine can accurately process and accommodate a variety of cutting methods (through cutting, milling, V-groove, kiss cutting, etc.), it can be widely used in textiles, clothing, leather materials (car interiors, Sofa industry), advertising packaging, composite materials, etc. AOYOO CNC cutting machine has high precision and high efficiency cutting. Our professional team can also provide automatic cutting solutions for various industries.

To learn more about the product performance, please click on the message and wait for the professional's reply

AOYOO’s main products include smart blade cutting machines, which can cut flexible materials in a variety of different industries and allow auxiliary cutting tools to work together, and our staff are professional in providing solutions for various industries. Welcome to consult!
