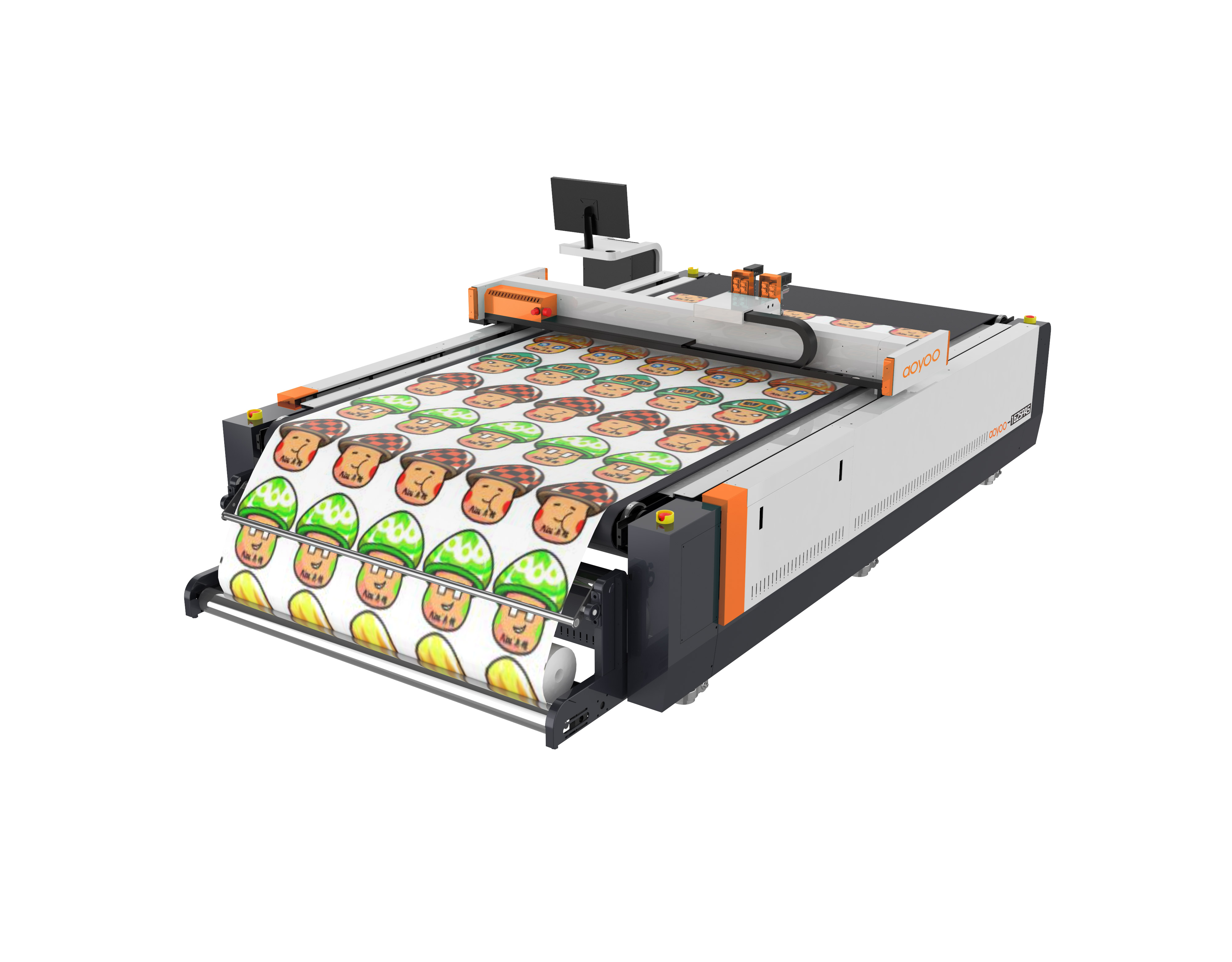

Detail of wallpaper cutting machine
1. Hard and stable platform, high-quality felt, cutting materials are more stable and not deformed
2. Simple operation interface of CNC panel system, you can start cutting immediately after importing files and intelligently adjusting parameters, getting rid of tedious procedures.
3. All-round feeding mode, it supports flat feeding mode, and the coil also has corresponding feeding tools, which saves time and effort
4. You can save 30% of the material cost. AOYOO wallpaper cutting machine has an intelligent optimized cutting system, which can intelligently fill and cut according to the cutting pattern, reducing more material waste.
5. You have a safer wallpaper cutting machine, infrared sensor, emergency stop button, touch emergency stop multiple methods to ensure the safety of the operator.
AOYOO has a trusted wallpaper cutting machine, which is a common wallpaper in life. Now the cutting machine technology is mature. AOYOO wallpaper cutting machine maintains a high-precision cutting level, allowing you to save 30% of material costs, as well as labor costs. Save more than 50%.
Parameter of wallpaper cutting machine
Technical parameters / model |
AOYOO-1625-ZS6 |
AOYOO-1825-ZS8 |
AOYOO-2125-ZS10 |
Accept unconventional model customization |
Effective working area |
1600x2500mm |
1800x2500mm |
2100X2500 |
|
Multi-head optional |
Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
Multi-function tool |
Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife |
safety devices |
Safety devices use infrared sensing, safe and reliable |
Cutting speed |
200-2000mm/s |
Cutting thickness |
≤50mm Other thicknesses can be customized according to the material |
Material fixing method |
Vacuum partition adsorption |
Transmission port |
Network port |
Transmission system |
Yaskawa servo motor, linear linear guide, timing belt, lead screw |
rated power |
11kw |
Rated voltage |
380V±10%/220V±10% Optional |
Control System |
Chinese and English LCD touch screen |
Operating environment |
Operating environment Temperature 0-40°C Humidity 20%-80%RH |
Software |
Automatic nesting software, template entry software（Optional） |
Support file format |
AI、PLT、DXF、CDRetc |
Overall size |
3570x2290x1165mm |
3570x2500x1165mm |
3570x25800x1 |
For more product performance, please click cutting machine for wallpaper
AOYOO's main products include smart blade cutting machines, vibrating knife cutting machines and laser cutting machines. The computer-controlled cutting machine can accurately process and accommodate a variety of cutting methods (through cutting, milling, V-groove, kiss cutting, etc.), it can be widely used in textiles, clothing, leather materials (car interiors, Sofa industry), advertising packaging, composite materials, etc. AOYOO CNC cutting machine has high precision and high efficiency cutting. Our professional team can also provide automatic cutting solutions for various industries.
